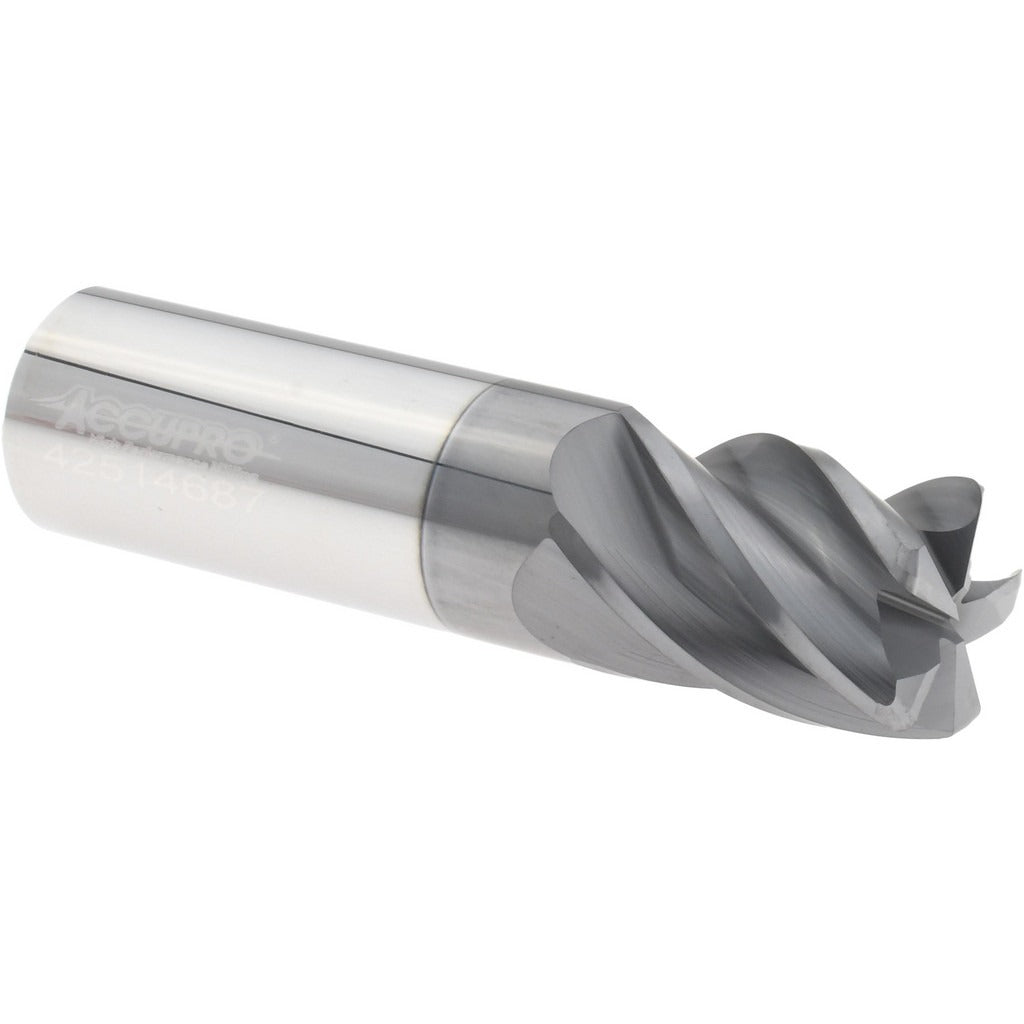

Accupro 311773 Corner Radius End Mill 3/4 in 5 Flute Carbide

Product Description

The ACCUPRO 311773 is a solid carbide corner radius end mill designed for high-performance milling in demanding machining environments. Built to Series HS standards, it features a 3/4-inch diameter, a 1-inch length of cut, and a 0.060-inch corner radius that blends floor and wall transitions to reduce stress concentrations in the workpiece. The AlCrTiN coating delivers high heat resistance and extended tool life, particularly in ferrous alloys and hardened steels. With five flutes, a 38-degree helix angle, and variable index geometry, this end mill balances chip evacuation with surface finish quality. It is center-cutting and right-hand cutting with right-hand flute direction.

This end mill suits CNC machining centers running side milling, slotting, and finishing passes where corner integrity and tool longevity are priorities. The corner radius geometry is well-suited for die and mold work, aerospace components, and general precision part machining where sharp internal corners are not permissible. The 3/4-inch shank mates directly to standard ER or end mill holders of the same bore. Overall length is 3 inches, keeping rigidity high in setups where tool deflection is a concern.

Key Features

• 0.060-inch corner radius reduces stress risers at workpiece transitions
• AlCrTiN coating for high-temperature wear resistance in ferrous and hard materials
• 5-flute, variable index design balances material removal rate and surface finish
• 38-degree helix angle promotes efficient chip flow and reduced cutting forces
• Micrograin solid carbide substrate for rigidity and edge retention
• Center-cutting capable — suitable for plunge entry and ramp entry operations

Compatibility

Designed as an OEM-style replacement or direct-use end mill for CNC machining centers and manual mills accepting a 3/4-inch shank end mill holder.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and machine in an e-stop or lockout/tagout state. Use a properly sized collet or end mill holder torqued to the machine tool manufacturer's specification — do not overtighten or use worn holders, as runout directly affects tool life and surface finish. Inspect the cutting edges and coating condition before each use; chipped or worn edges on carbide end mills should not be run. Follow the tooling manufacturer's recommended speeds and feeds for the specific workpiece material and coating type.
