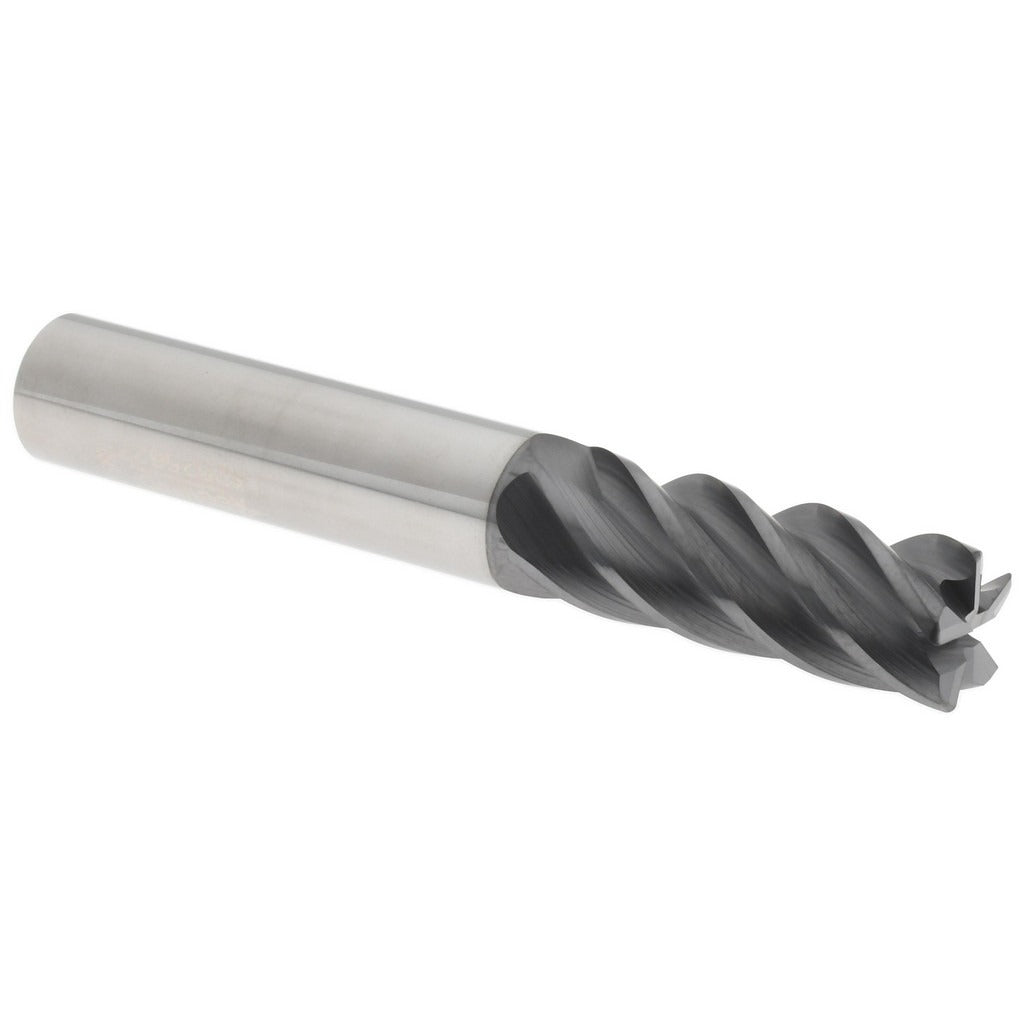

Accupro 311547 Corner Radius End Mill 3/8 in 5 Flute

Product Description

The ACCUPRO 311547 is a solid carbide corner radius end mill designed for precision milling operations in ferrous and hardened materials. With a 3/8 inch diameter and a 0.020 inch corner radius, this five-flute, single-end tool runs with a 38-degree helix and variable index geometry to reduce harmonic chatter and improve surface finish. The AlCrTiN coating provides excellent heat resistance and wear life at elevated cutting temperatures. The overall length is 2.5 inches with a 1 inch length of cut, making it well-suited for moderate-depth peripheral and slot milling. It is centercut, allowing direct plunge entry. Installation and setup are handled by machinists and CNC operators in precision machining environments.

This end mill is used in CNC machining centers and manual mills for finishing and semi-finishing passes in steel, stainless, cast iron, and similar hard materials. The corner radius geometry reduces edge chipping and extends tool life compared to sharp-corner end mills. The 3/8 inch shank matches directly to standard ER collets and end mill holders in that bore size. It is appropriate for job shops, tool rooms, and production environments requiring consistent, repeatable corner geometry on milled features.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance in hard materials
• AlCrTiN coating for high-temperature performance and extended tool life
• Five-flute design increases feed rate capability and improves surface finish
• Variable index flute spacing reduces chatter and vibration during cutting
• 0.020 inch corner radius protects the cutting edge and blends part corners
• Centercut geometry allows axial plunge and ramping entries
• Right-hand cut and right-hand flute spiral for standard CNC spindle use

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide corner radius end mill in the ACCUPRO HS Series, compatible with standard 3/8 inch bore end mill holders and ER collet chucks.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Secure the shank to the full recommended engagement depth in the tool holder to prevent pullout under cutting loads. Verify runout with a dial indicator after clamping before initiating a cut.
