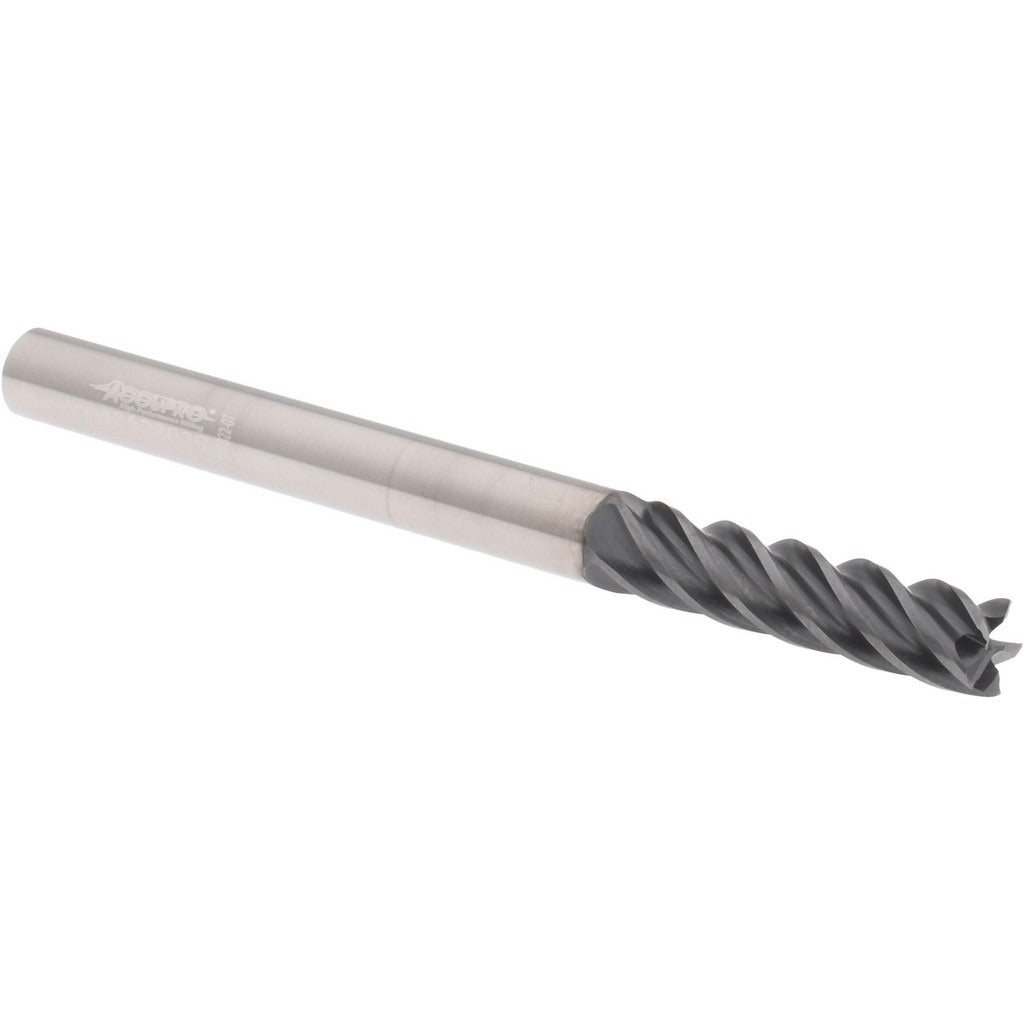

Accupro 311446 Square End Mill 1/4 in 5 Flute Carbide

Product Description

The ACCUPRO 311446 is a solid carbide square end mill designed for high-performance milling in demanding machining environments. Built on the Series HS platform, it features a 1/4 inch cutting diameter, a 1 inch length of cut, and five spiral flutes with a 38-degree helix angle. The AlTiCrN coating provides heat and wear resistance, making this end mill well-suited for cutting harder ferrous and exotic materials at elevated speeds. A variable index geometry helps reduce harmonic vibration during cuts. Machinists and CNC operators in job shops, tool rooms, and production environments install this tool in standard 1/4 inch collets or end mill holders.

This end mill is intended for use in milling operations on CNC machining centers and manual mills where a 1/4 inch shank is required. The 3 inch overall length and 1 inch length of cut make it appropriate for moderate-depth slotting, profiling, and peripheral milling applications. The centercutting design allows it to plunge directly into workpiece material. Right-hand cutting direction and right-hand flute spiral are standard for conventional CNC setups. It is a single-end tool, so once the cutting end is worn, the tool is replaced rather than indexed.

Key Features

• Solid carbide micrograin construction for rigidity and wear resistance
• AlTiCrN coating extends tool life in hard and abrasive materials
• Five-flute spiral design increases feed rate capability over standard four-flute tools
• 38-degree helix angle improves chip evacuation and surface finish
• Variable index spacing reduces chatter and harmonic vibration
• Centercutting geometry permits direct plunge entry into material

Compatibility

Designed as a standard 1/4 inch shank square end mill compatible with 1/4 inch collets, shrink-fit holders, and end mill holders used on CNC machining centers and manual knee mills.

Installation Notes

Installation is performed by a machinist or CNC operator. Secure the shank fully in the holder to the recommended gauge line depth before tightening to avoid runout. Ensure the spindle and machine are at a complete stop before changing tooling. Verify holder cleanliness and shank condition prior to assembly to maintain concentricity and extend tool life.
