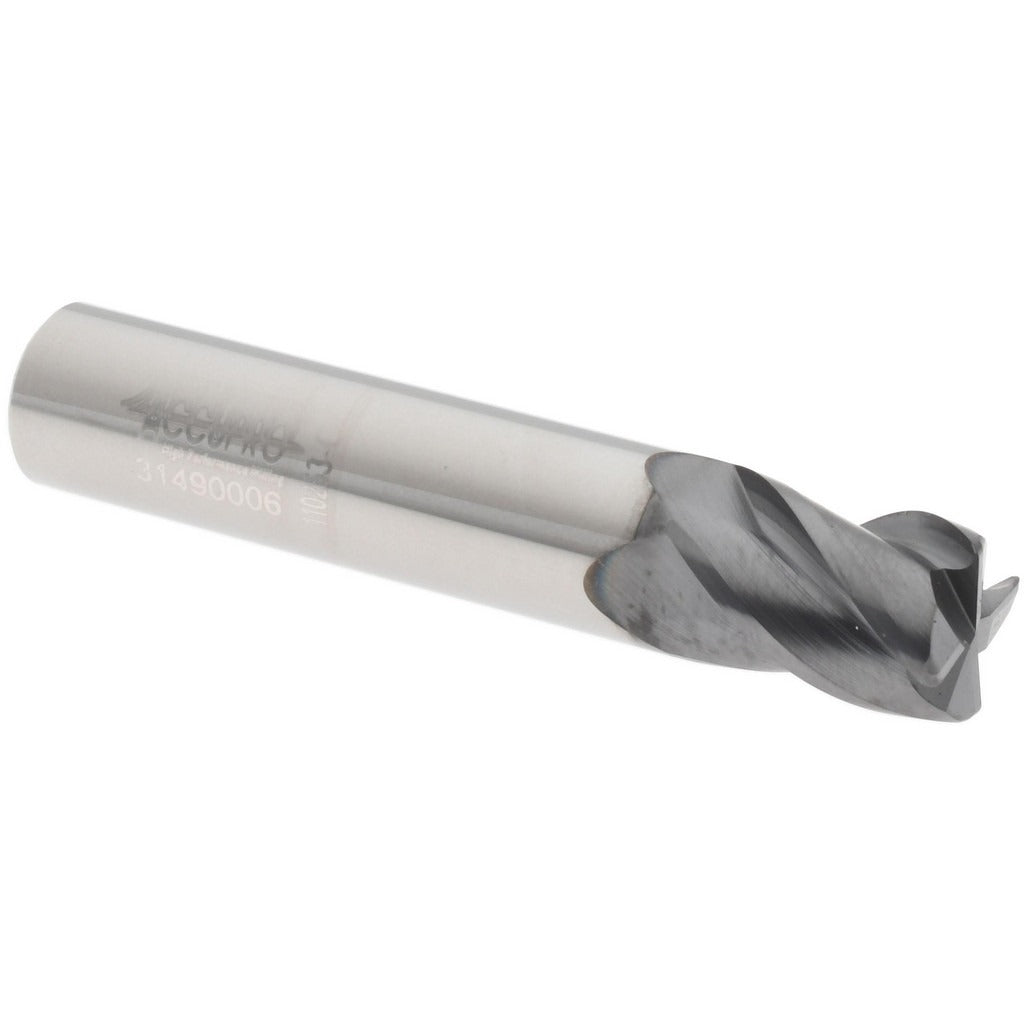

Accupro 310210 Corner Radius End Mill 3/8 in 4 Flute

Product Description

The ACCUPRO 310210 is a solid carbide corner radius end mill designed for precision milling in demanding machining environments. Built on the HS series platform, it features a 3/8 inch diameter, a 0.5 inch length of cut, and a 2 inch overall length. The four-flute, right-hand spiral geometry is combined with a variable index design and an AlCrTiN coating, which extends tool life in high-heat, abrasive cutting conditions. The 0.030 inch corner radius reduces stress concentration at the cutting edge, making this tool well suited for finishing passes and contour work in hardened materials. It is centercutting, allowing direct plunge entry.

This end mill is intended for use in CNC machining centers and manual mills where controlled corner radii and tight tolerances are required. The AlCrTiN coating performs well in dry or minimum-quantity lubrication cutting of tool steels, hardened steels, and cast irons. The straight cylindrical shank at 3/8 inch diameter accepts standard ER collets and end mill holders. Machinists and toolroom operators running high-speed or hard milling applications will find this tool appropriate for finish profiling, slotting, and 3D contouring where edge integrity matters.

Key Features

• Solid carbide micrograin substrate for rigidity and wear resistance
• AlCrTiN coating for elevated heat resistance and extended tool life
• Four flutes with right-hand cutting and variable index for reduced chatter
• 0.030 inch corner radius minimizes edge chipping on hardened workpieces
• Centercutting design permits direct plunge milling
• 38 degree helix angle promotes efficient chip evacuation

Compatibility

Designed as a direct-fit replacement for standard 3/8 inch straight-shank end mill holders and ER collet chucks used in CNC and manual milling applications.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and power is isolated before changing tooling. Seat the shank fully into the collet or holder to the recommended gauge length and torque the retention nut per the toolholder manufacturer specification. Inspect the corner radius and cutting edges for chips or damage before each use.
