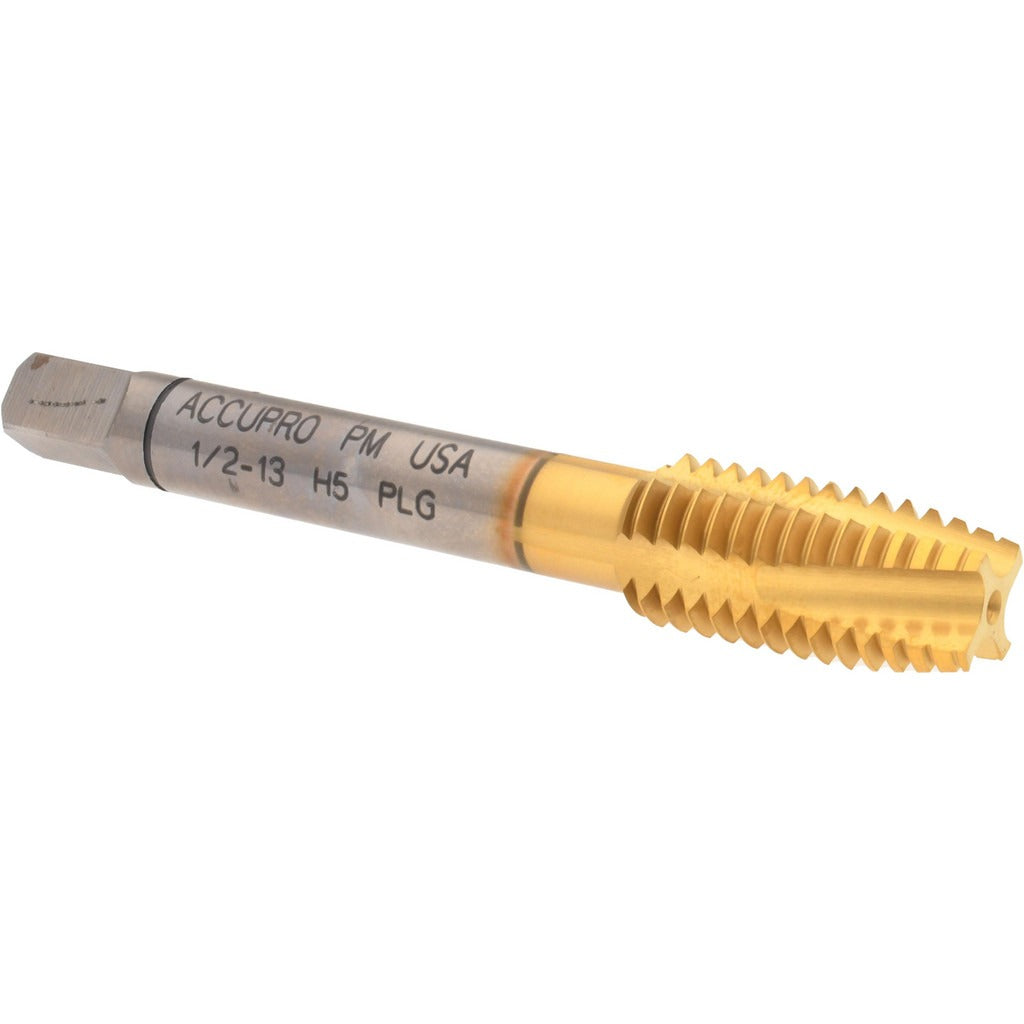

Accupro 30165-00T Spiral Point Tap 1/2-13 Unc Tin

Product Description

The ACCUPRO 30165-00T is a spiral point tap designed for cutting 1/2-13 UNC internal threads in through-hole applications. Spiral point geometry pushes chips forward ahead of the cutting action, making it well suited for production tapping in materials that generate continuous chips. The tap is ground from powdered metal for improved wear resistance and edge consistency, and it carries a titanium nitride (TiN) coating that further extends tool life in ferrous and non-ferrous materials. With a plug chamfer and H5 thread limit, this tap is built for general-purpose machine tapping where consistent 2B class fit is required.

This tap is appropriate for CNC machining centers, drill presses, and tapping machines used in job shop and production environments. It performs well in mild and alloy steels, cast iron, aluminum, and similar machinable materials in through-hole setups. The right-hand thread direction and plug chamfer make it a standard choice for the majority of through-hole tapping operations encountered in general metalworking, automotive, and industrial fabrication applications. Coolant-through capability is not available on this tap; flood or mist cooling applied externally is the standard approach.

Key Features

• Spiral point geometry pushes chips forward, reducing chip packing in through-hole tapping
• Powdered metal construction provides greater wear resistance compared to standard HSS
• TiN coating reduces friction and extends tool life in a range of workpiece materials
• Plug chamfer with 3 to 5 thread lead allows easy thread start and is compatible with machine tapping
• H5 thread limit and 2B class of fit meet standard tolerance requirements for general fastener applications
• Right-hand thread direction for conventional tapping operations

Compatibility

Designed for use in standard tapping chucks and quick-change tapping heads that accept the appropriate shank diameter for a 1/2-13 UNC spiral point tap. Verify chuck size compatibility before installation.

Installation Notes

This tap is intended for use by machinists and tooling professionals operating machine tapping equipment. Ensure the spindle is fully stopped and the machine is powered down before loading or removing the tap from the holder. Use appropriate cutting fluid or external coolant for the workpiece material to prevent galling and premature wear. Verify through-hole clearance before tapping to allow chip evacuation and prevent tap breakage.
