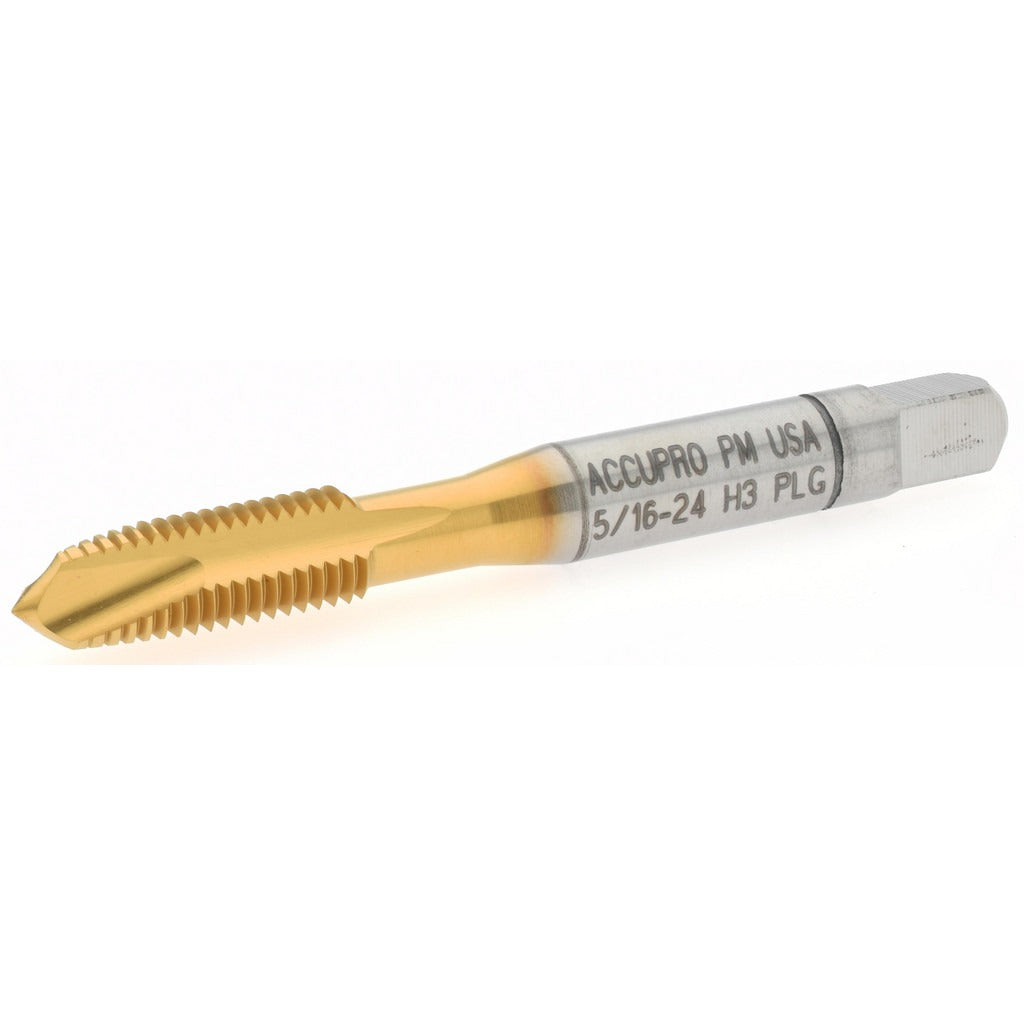

Accupro 30113-00T Spiral Point Tap 5/16-24 Unf Tin

Product Description

The ACCUPRO 30113-00T is a spiral point tap designed to cut 5/16-24 UNF internal threads in through-hole applications. Spiral point geometry pushes chips forward ahead of the cutting action, reducing chip packing and enabling cleaner thread formation at production feed rates. The tap is manufactured from powdered metal for improved wear resistance compared to standard high-speed steel, and it carries a titanium nitride (TiN) coating to extend tool life and reduce friction during the cut. With a plug chamfer and H3 thread limit, it is suited to close-tolerance work in a range of ferrous and non-ferrous materials. Machinists and tool-room technicians install this tap in CNC machining centers, drill presses, and tapping arms.

This tap is used in job shop, production machining, and maintenance-repair environments where 5/16-24 UNF threaded holes are required. The plug chamfer style makes it the correct choice for through-holes where the tap can fully pass through the workpiece. The right-hand thread direction and 3B class of fit are standard for the majority of UNF fastener applications. Coolant-through feature is not included, so it is run with flood or mist coolant applied externally at the tool entry point.

Key Features

• Spiral point geometry drives chips forward for clean through-hole threading
• Powdered metal construction provides greater wear resistance than conventional HSS
• TiN coating reduces cutting friction and extends tool life
• Plug chamfer for use in through-hole applications
• H3 thread limit and 3B class of fit for close-tolerance UNF threads
• Right-hand cut, 3 flutes, 5/16-24 UNF thread size

Compatibility

Designed as an OEM-style replacement or direct-use spiral point tap for any application requiring a 5/16-24 UNF plug-chamfer tap with H3 thread limit and 3B class of fit.

Installation Notes

Install and operate this tap in a properly aligned tapping chuck or rigid tapping holder to prevent thread lead error and tap breakage. Power down and lock out all machine motion before loading or unloading the tap. Apply appropriate cutting fluid or flood coolant externally to maintain tool temperature and flush chips from the hole. Follow shop speeds-and-feeds guidelines for powdered metal taps in the specific workpiece material being cut.
