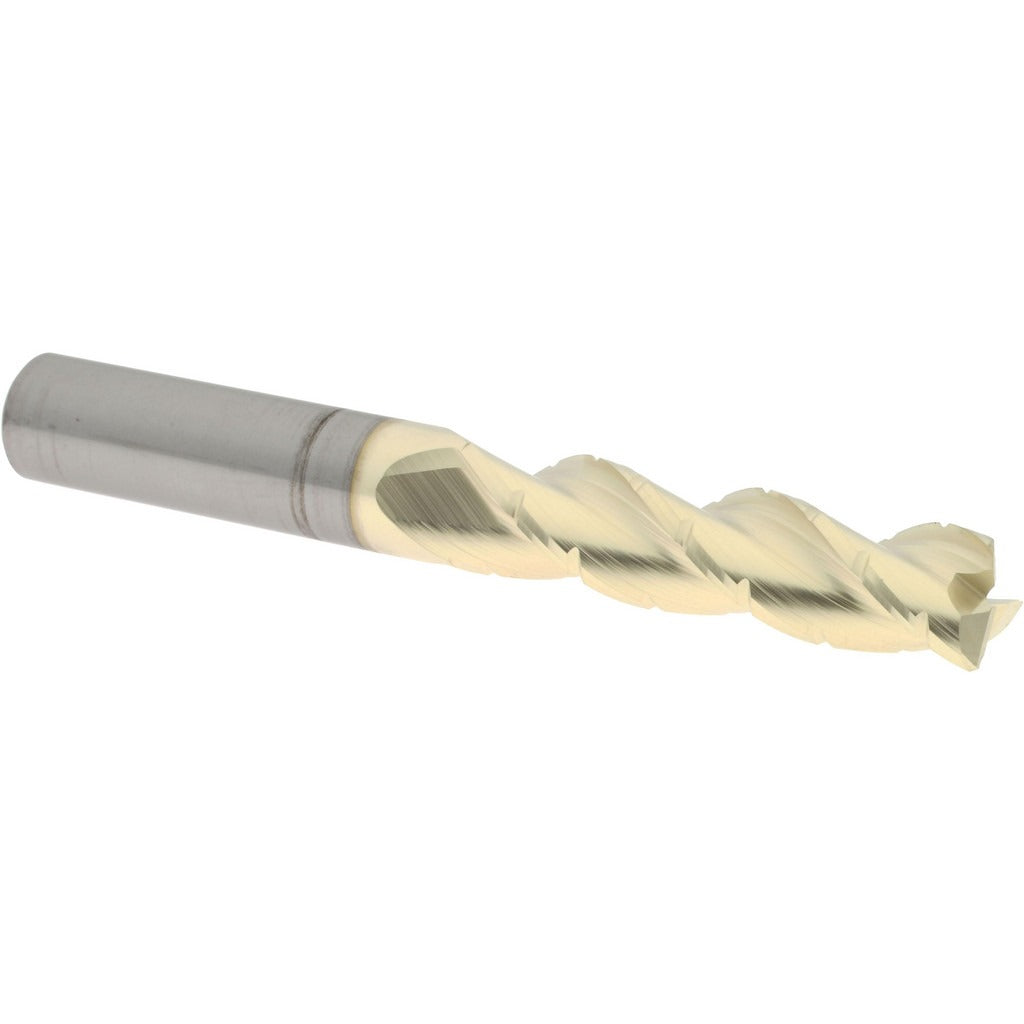

Accupro 2500479 Roughing Finishing End Mill 1/2 in

Product Description

The ACCUPRO 2500479 is a solid carbide roughing and finishing end mill designed for demanding milling operations where material removal rate and surface finish both matter. The 1/2-inch diameter, 3-flute design features a chipbreaker geometry along the flute length, which breaks chips into smaller segments to reduce heat buildup and cutting forces during aggressive passes. A ZrN (zirconium nitride) coating improves wear resistance and lubricity. With a 37-degree helix angle and right-hand cut, this tool suits high-feed roughing strategies as well as semi-finish passes in a single setup. It is sold as a single-end tool with a straight shank.

This end mill is intended for use in CNC machining centers and manual knee mills where a combination roughing-finishing approach reduces tool changes. The extra-long overall length of 4 inches and 2-inch length of cut make it suited for deeper pockets and slotting operations where reach matters. The micrograin carbide substrate and ZrN coating are appropriate for ferrous and non-ferrous materials in production shop environments. A licensed machinist or CNC operator handles installation and tool-path programming.

Key Features

• Chipbreaker flute geometry reduces chip recutting and heat during heavy passes
• ZrN coating provides wear resistance and improved chip evacuation
• 37-degree helix angle promotes smooth cutting action and reduced cutting forces
• Micrograin solid carbide substrate for edge integrity at higher feed rates
• Center-cutting design allows plunge entry
• Single-end straight shank fits standard ER collets and end mill holders

Compatibility

Designed as a direct-fit replacement or new-stock end mill for standard 1/2-inch straight-shank tool holders including ER32 collet chucks, end mill holders, and Weldon-style holders used in CNC machining centers and manual mills.

Installation Notes

Always power down and lock out the spindle before installing or removing end mills. Seat the shank fully into the holder and torque the set screw or collet nut to the tool-holder manufacturer specification. Inspect the shank and collet bore for chips or damage before each use. Confirm runout with a dial indicator before beginning a new operation, particularly for finishing passes where surface quality is critical.
