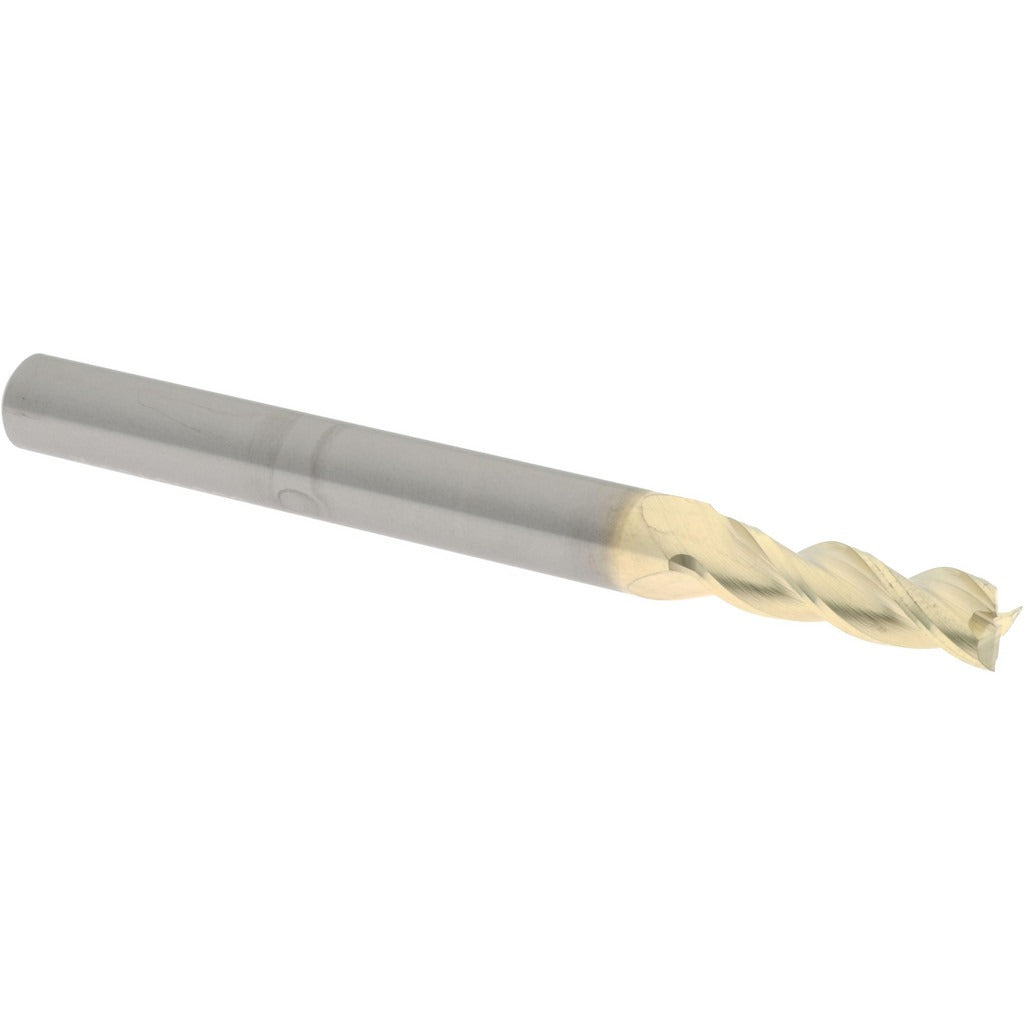

Accupro 2500452 Roughing Finishing End Mill 5mm Solid Carbide

Product Description

The ACCUPRO 2500452 is a solid carbide roughing finishing end mill designed for aggressive material removal and finish passes in a single tool. Built from micrograin carbide and coated with ZrN (zirconium nitride), it delivers extended tool life and improved surface finishes on ferrous and non-ferrous materials. The 5 mm diameter cutter features 3 flutes with a 37-degree helix angle and a square end geometry. It is centercutting, allowing plunge entry, and runs in a right-hand cutting direction. The 6 mm straight shank seats into standard collet chucks and tool holders. Machinists and CNC operators in job shops, production facilities, and toolrooms are the primary users of this tooling.

This end mill is suited for milling operations in CNC machining centers and manual knee mills where both roughing and semi-finishing passes are required without a tool change. The 16 mm length of cut and 65 mm overall length make it appropriate for shallow-to-moderate pocket depths and slot milling. The ZrN coating reduces built-up edge and friction, making it a practical choice for aluminum, brass, copper, and similar non-ferrous workpiece materials. It is a single-end tool with no chipbreaker, keeping the flute geometry optimized for clean chip evacuation at typical finishing feeds.

Key Features

• Micrograin solid carbide substrate for rigidity and wear resistance
• ZrN coating reduces friction and extends tool life on non-ferrous materials
• 37-degree helix angle promotes smooth cutting action and chip evacuation
• Centercutting geometry allows direct plunge entry into the workpiece
• 3-flute, right-hand design balances chip load and surface finish
• Straight 6 mm shank fits standard collet and end mill holders

Compatibility

Designed for use in standard CNC machining centers and manual mills accepting a 6 mm straight shank end mill holder or collet chuck.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and machine power isolated per shop lockout/tagout procedures. Seat the shank fully into the collet or holder and torque the retention nut to the tool holder manufacturer's specification. Inspect the shank and collet bore for runout before initiating a cut. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material.
