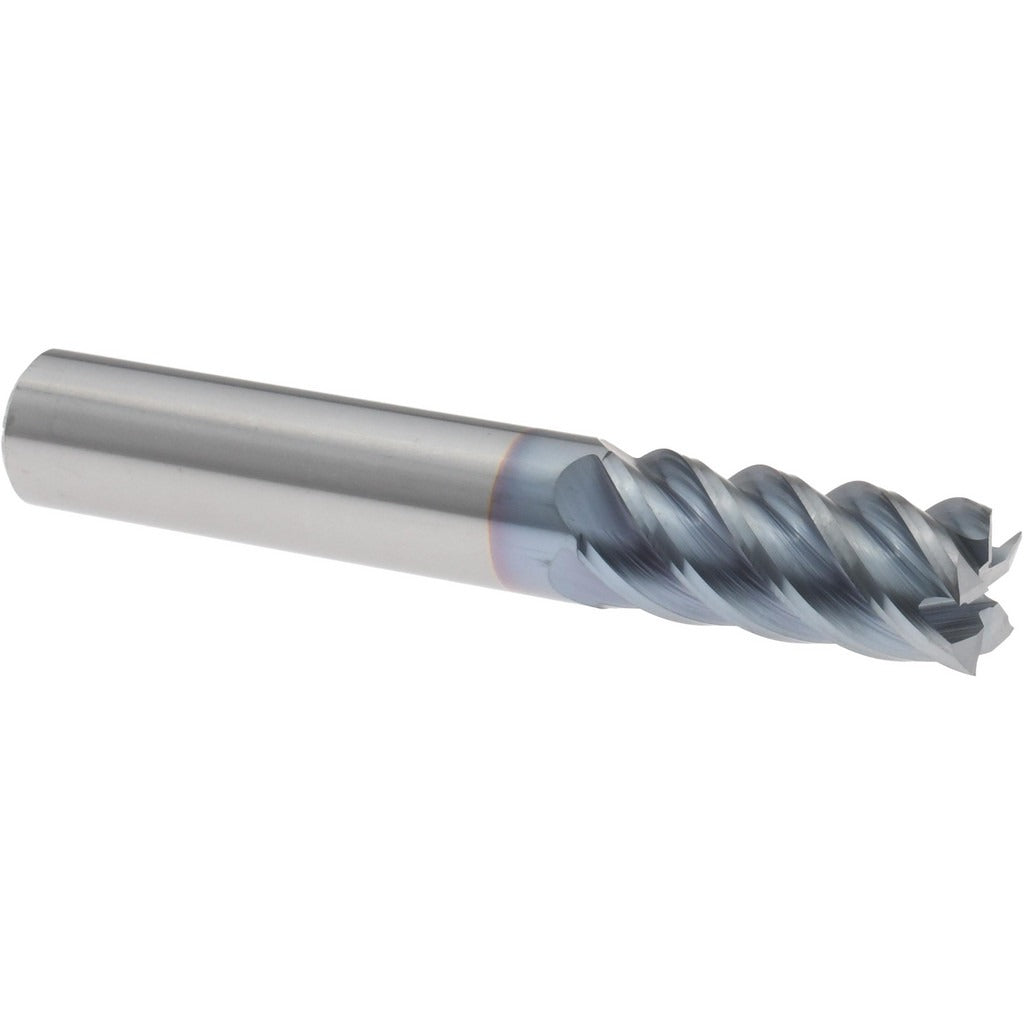

Accupro 2500409 Square End Mill 7/16 in 5 Flute Solid Carbide

Product Description

The ACCUPRO 2500409 is a solid carbide square end mill designed for precise milling operations in metalworking and machining applications. It features a 7/16-inch (0.4375-inch) mill diameter, a 1-inch length of cut, and a 5-flute configuration that improves chip evacuation and surface finish at higher feed rates. The 45-degree helix angle reduces cutting forces and promotes smooth entry into the workpiece. A TiCN (titanium carbonitride) coating increases surface hardness and wear resistance, extending tool life in ferrous and non-ferrous materials. This is a single-end, right-hand cutting tool manufactured from micrograin solid carbide.

This end mill is suited for peripheral and slot milling operations in job shops, tool rooms, and production machining environments. The regular-length geometry and 7/16-inch shank diameter make it compatible with standard ER and side-lock toolholders on vertical and horizontal machining centers as well as CNC knee mills. It is center-cutting, allowing plunge entry where required. Machinists and CNC operators working in steel, stainless, cast iron, and similar materials will find this tool appropriate for finishing and semi-finishing passes.

Key Features

• 5-flute design increases feed rate capability and improves surface finish compared to 4-flute tools
• 45-degree right-hand helix reduces axial cutting forces and improves chip flow
• TiCN coating provides elevated hardness and wear resistance for extended tool life
• Micrograin solid carbide substrate delivers rigidity and edge retention in demanding cuts
• Center-cutting geometry allows direct plunge milling without a pre-drilled entry point
• Mill diameter tolerance of +0.000 / -0.002 inches ensures accurate feature sizing

Compatibility

Designed as a standard-shank solid carbide square end mill for use in 7/16-inch collet chucks, ER collet systems, and side-lock toolholders on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the control is in an e-stop or locked-out state before changing tooling. Seat the shank to the full recommended engagement depth in the toolholder and torque the retention mechanism per the toolholder manufacturer specifications. Verify runout with a dial indicator before beginning production cuts.
