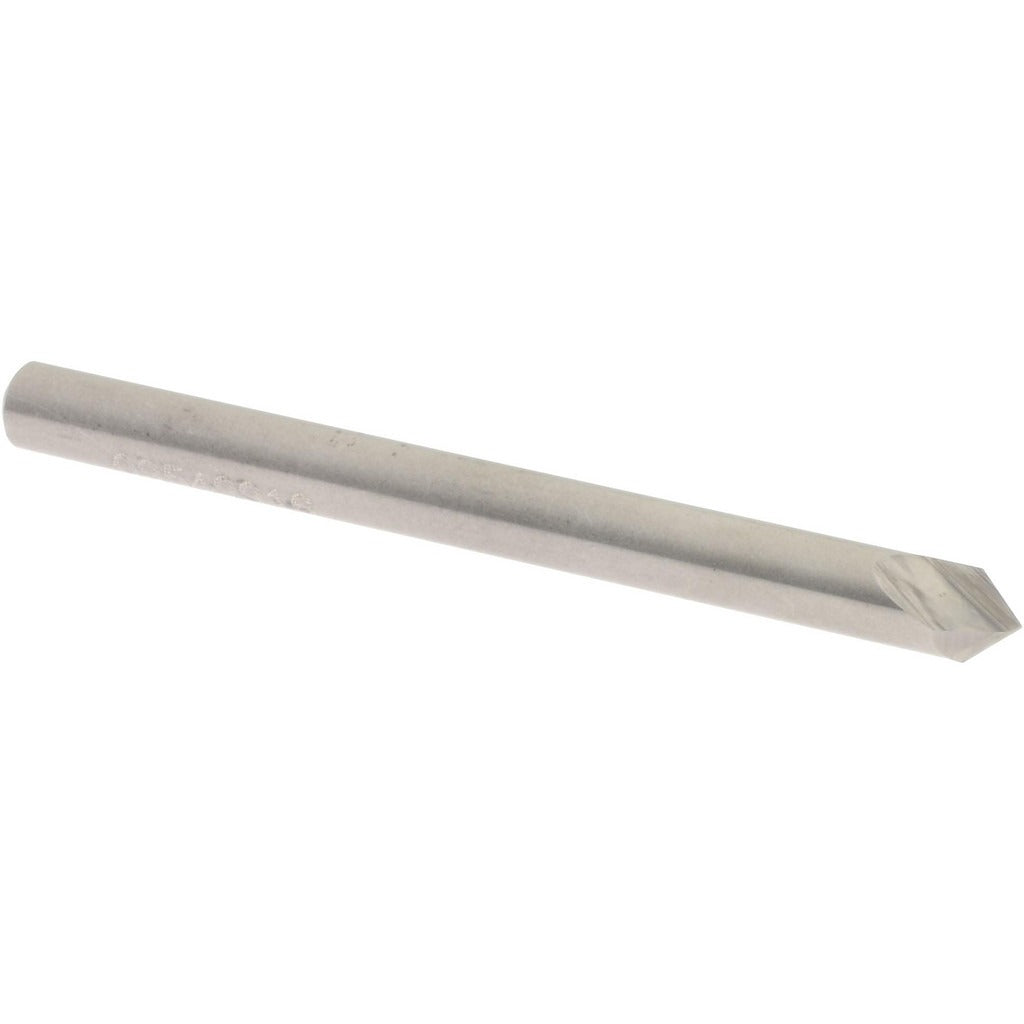

Accupro 2500264 Chamfer Mill 1/8 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500264 is a solid carbide chamfer mill designed for precision chamfering operations on a wide range of workpiece materials. With a 1/8 inch cutter head diameter and 2 flutes, this single-end tool delivers clean, accurate chamfers in tight spaces where larger tooling cannot reach. The right-hand cutting direction and bright uncoated finish make it well suited for general-purpose chamfering where coating buildup is not a concern. At 1-1/2 inches overall length with a 1/8 inch shank diameter, it fits standard collets and tool holders commonly found in CNC machining centers and manual mills. Machinists and tool-and-die professionals working in job shops, production facilities, or maintenance environments will find this tool reliable for deburring and edge-breaking tasks.

This chamfer mill is appropriate for light to medium chamfering work on metals, plastics, and composite materials in both production and prototype environments. The 82-degree included angle is a common specification for creating chamfers on through-holes, countersink profiles, and part edges prior to assembly or finishing. Its compact 1/8 inch diameter makes it a practical choice for small-bore entry chamfers and detail work on precision components. Installation requires a compatible 1/8 inch collet or end mill holder; tooling should be secured per machine manufacturer torque guidelines before operation.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding machining conditions
• 1/8 inch cutter head diameter suited for small-feature and tight-clearance chamfering
• 2-flute geometry provides clean chip evacuation on chamfer and deburring passes
• 82-degree included angle for standard chamfer and countersink profiles
• Bright uncoated finish compatible with a broad range of base materials
• Right-hand cutting direction for use in standard CNC and manual milling setups

Compatibility

Designed as a direct-fit chamfer mill for use in any machine tool spindle accepting a 1/8 inch shank, including CNC machining centers and manual knee mills with appropriate collet tooling.

Installation Notes

Installation should be performed by a qualified machinist following all machine tool safety procedures. Power down and lock out the spindle before inserting or changing tooling. Secure the shank fully within the collet or end mill holder to the depth recommended by the holder manufacturer. Verify runout and tool projection before beginning the cut to avoid tool deflection or breakage at this small diameter.
