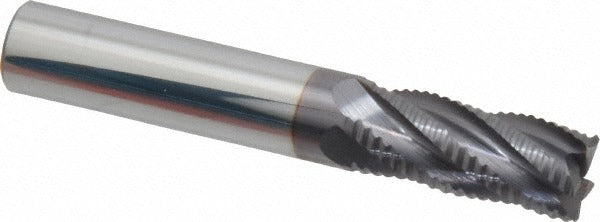

Accupro 2500263 Roughing End Mill 7/16 in 5 Flute Carbide

Product Description

The ACCUPRO 2500263 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from micrograin solid carbide and coated with TiCN (titanium carbonitride), it delivers hardness and wear resistance suited to high-speed roughing passes on ferrous and non-ferrous metals. The 7/16 inch (0.4375 inch) mill diameter and matching 7/16 inch shank keep the tool concentric and rigid in standard collet chucks and end mill holders. With five fine-pitch flutes and a 1 inch length of cut, this tool balances chip evacuation with edge strength during heavy stock removal operations.

This end mill is used in vertical and horizontal machining centers as well as manual knee mills where roughing passes precede finish milling. It is suited to job shops, tool rooms, and production environments running steel, stainless, cast iron, and similar materials. The right-hand cutting and right-hand flute direction are standard for conventional CNC milling setups. At 2.75 inches overall length and a regular-length profile, it fits most standard tool holders without extended-reach adapters. Machinists and CNC operators performing roughing operations before a finish pass are the primary users.

Key Features

• Micrograin solid carbide construction for rigidity and edge retention under heavy cuts
• TiCN coating increases surface hardness and reduces heat buildup at the cutting edge
• Five fine-pitch flutes provide a balance of chip clearance and cutting edge count during roughing
• Non-centercutting geometry — designed for peripheral roughing, not plunge entry
• Right-hand cut and right-hand helix match standard CNC and manual mill spindle rotation
• Regular-length profile at 2.75 inches OAL reduces overhang deflection

Compatibility

Designed as a standard single-end roughing end mill for use in 7/16 inch collet chucks, end mill holders, and shrink-fit tooling accepting a 0.4375 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before inserting or removing the tool from its holder. Verify collet or holder bore size matches the 7/16 inch shank before clamping. Because this tool is non-centercutting, do not program direct plunge moves — ramp or helical entry paths are required to avoid tool damage.
