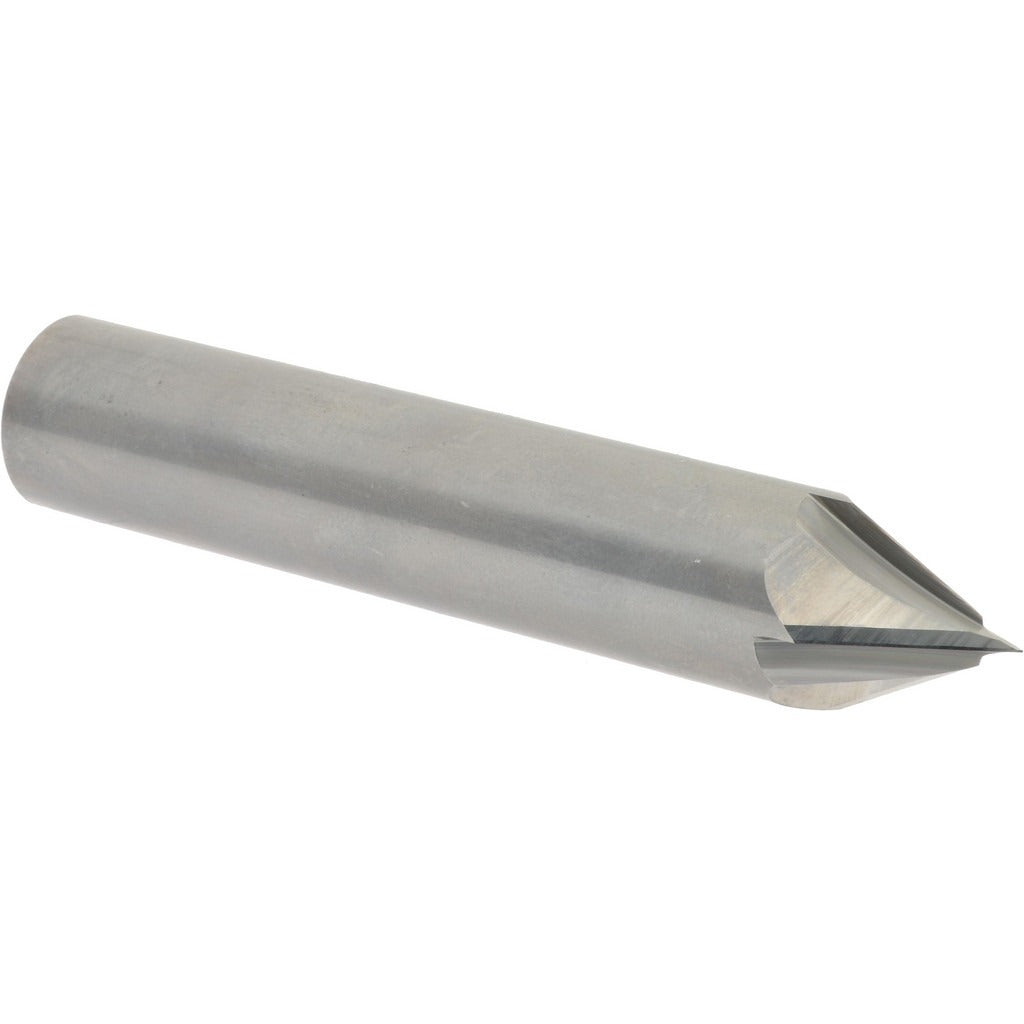

Accupro 2500195 Chamfer Mill 3/4 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 2500195 is a solid carbide chamfer mill designed for chamfering operations on a wide range of workpiece materials. It features a 3/4 inch cutter head diameter, a 60-degree included angle, and four flutes arranged for right-hand cutting. The bright/uncoated finish makes it suitable for use across general-purpose applications where additional coating is not required. At 4 inches overall length with a 3/4 inch shank diameter, this tool mounts securely in standard end mill holders and collet chucks. Machinists and CNC operators working in job shops, maintenance machining, or production environments will find this mill straightforward to apply for consistent chamfer results.

This chamfer mill is suited for single-end chamfering on ferrous and non-ferrous materials in both manual and CNC milling setups. The solid carbide construction provides rigidity and wear resistance appropriate for precision chamfering tasks. It is a practical choice for deburring edges, creating lead-in chamfers for threading, or breaking sharp corners on machined components in light to medium production runs.

Key Features

• 3/4 inch cutter head diameter for substantial chamfer width capacity
• 60-degree included angle for standard chamfering geometry
• 4 flutes with right-hand cutting direction for clean chip evacuation
• Solid carbide construction for rigidity and extended tool life
• Bright/uncoated finish suitable for general-purpose materials
• 4 inch overall length with 3/4 inch shank for stable tool holding

Compatibility

Designed as a general-purpose chamfer mill compatible with standard 3/4 inch end mill holders, collet chucks, and milling machine spindles accepting right-hand solid carbide tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator familiar with tool holding procedures. Ensure the machine spindle is fully stopped and locked out before mounting or changing tooling. Secure the shank to the full recommended grip depth in the tool holder and verify runout with a dial indicator before initiating a cut. Consult machine and tool holder manufacturer specifications for proper torque values when tightening set screws or collet nuts.
