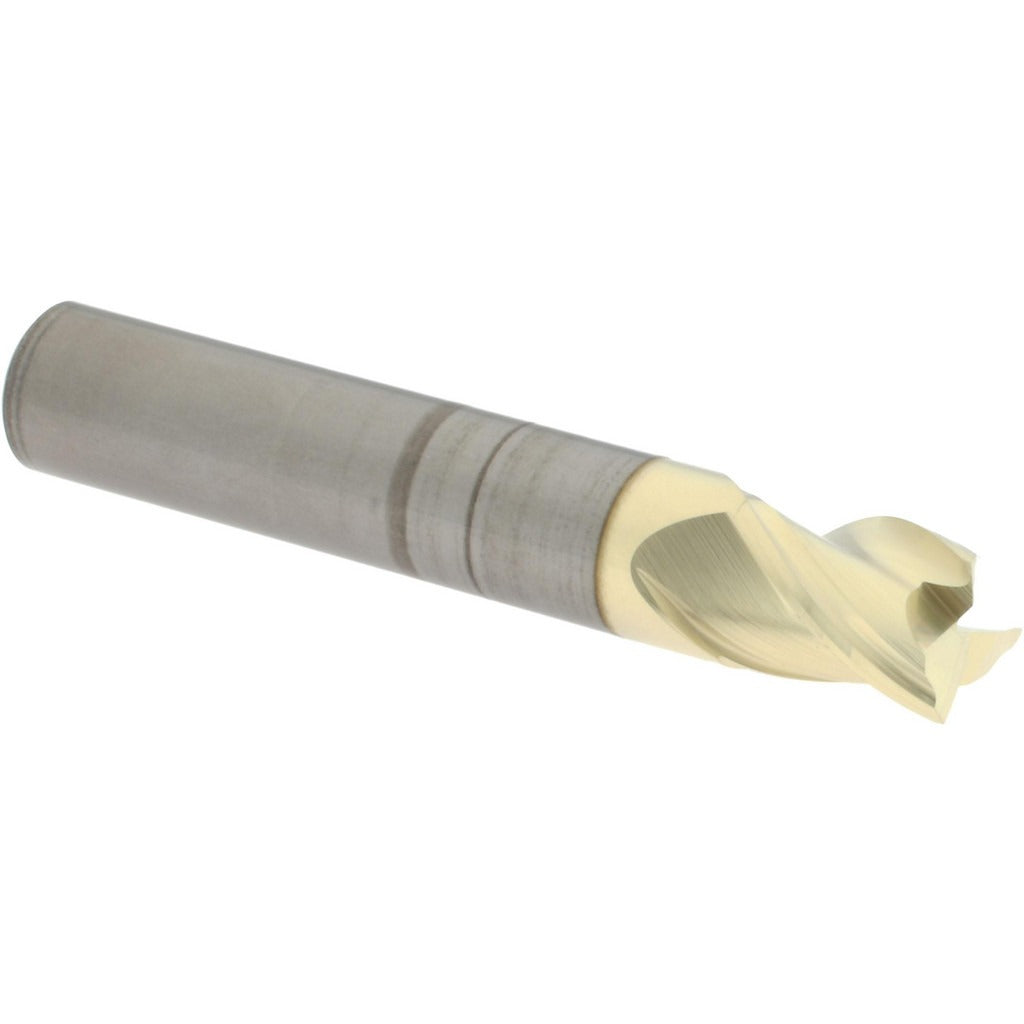

Accupro 2500159 Square End Mill 1/2 in 3 Flute Carbide Zrn

Product Description

The ACCUPRO 2500159 is a solid carbide square end mill designed for precision milling operations in metalworking and machining environments. With a 1/2 inch cutting diameter, a 5/8 inch length of cut, and a 3 inch overall length, this tool handles slotting, profiling, and peripheral milling with consistent accuracy. The three-flute geometry with a variable helix design reduces chatter and harmonic vibration during cutting, improving surface finish and tool life. A ZrN (zirconium nitride) coating adds hardness and heat resistance to the micrograin carbide substrate, making this end mill well suited for a range of ferrous and non-ferrous workpiece materials. It is single-end, right-hand cutting, and right-hand flute direction.

This end mill is used in CNC machining centers and manual mills for precision part manufacturing, mold work, die work, and general-purpose metal removal. The stub length type and 1/2 inch shank diameter make it compatible with standard ER and side-lock toolholders. Its centercutting capability allows plunge entry into the workpiece, expanding its use to pocketing and ramping operations. Machinists, tool and die makers, and CNC operators in job shops and production facilities are the primary users of this tool.

Key Features

• 1/2 inch cutting diameter with a plus 0.000 / minus 0.002 inch diameter tolerance for precise fitment
• Variable helix flute geometry reduces chatter and improves surface finish in demanding cuts
• ZrN coating increases surface hardness and thermal resistance, extending tool life
• Micrograin solid carbide construction delivers rigidity and wear resistance
• Centercutting design allows direct plunge entry for pocketing and ramping operations
• Right-hand cut and right-hand flute spiral for use with standard spindle rotation

Compatibility

Designed as a direct-fit replacement or standard tooling option for CNC machining centers and manual mills using 1/2 inch shank toolholders with right-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist following standard toolholder torque and runout procedures for the machine in use. Ensure the spindle is fully stopped and locked out before changing tooling. Verify shank engagement depth meets the toolholder manufacturer minimum before tightening. Inspect the collet or holder for wear or contamination that could affect runout and tool life.
