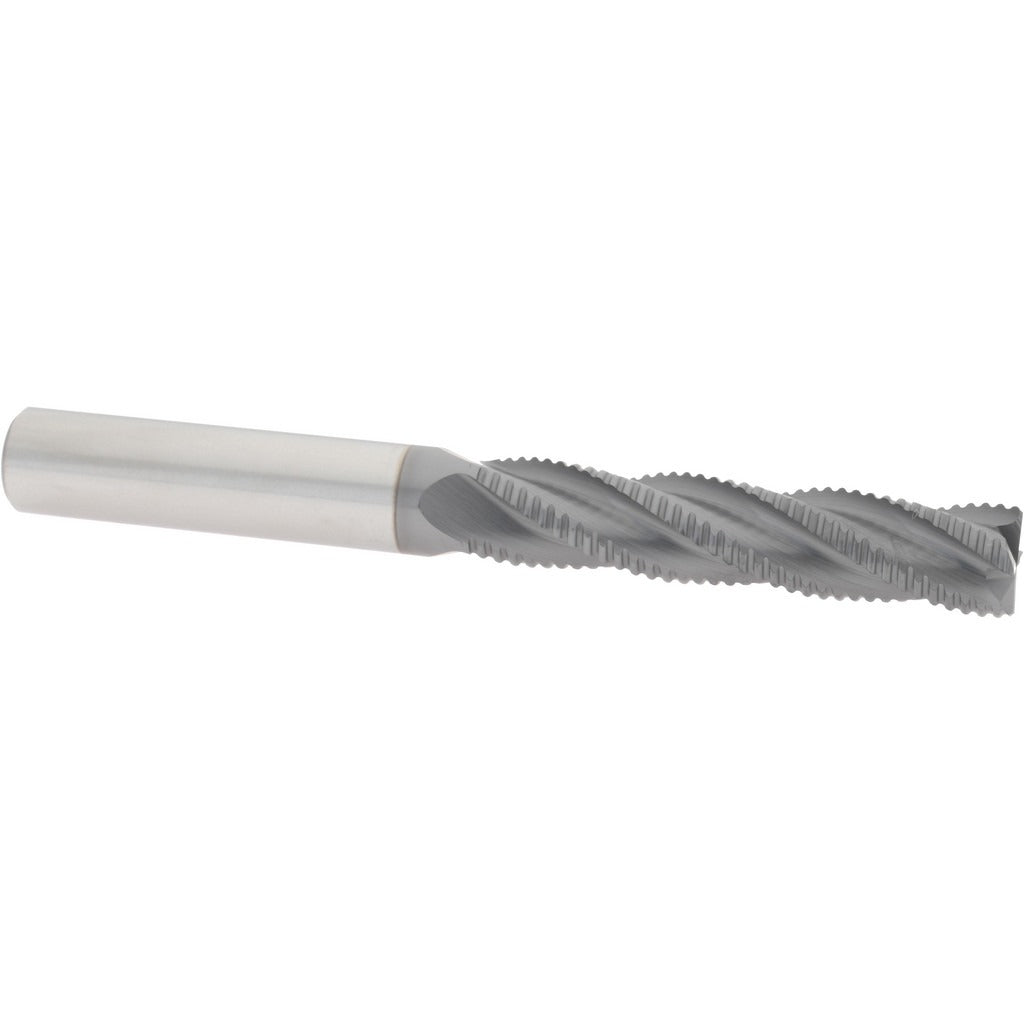

Accupro 2500124 Roughing End Mill 7/16 in 4 Flute Carbide

Product Description

The ACCUPRO 2500124 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from micrograin solid carbide and coated with AlTiN (aluminum titanium nitride), it delivers excellent heat resistance and tool life in ferrous and hard materials. The 7/16 inch (0.4375 inch) diameter, 4-flute, fine-pitch geometry produces a characteristic corncob chip-breaking profile that reduces cutting forces and controls chip evacuation during roughing passes. This tool is suited for machinists and toolroom professionals running CNC mills or manual knee mills where stock removal rate is the priority.

The 2500124 is intended for roughing applications across general machining, die and mold work, and production environments where material needs to be cleared before a finishing pass. The long-series length (2 inches length of cut, 4 inches overall length) allows reach into deeper pockets and stepped features. The centercutting design permits plunge entry where required. Right-hand cutting and right-hand flute direction make this a standard configuration for conventional and climb milling on vertical machining centers.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• AlTiN coating provides thermal resistance in dry and high-speed cutting conditions
• Fine-pitch roughing profile reduces radial cutting forces and controls chip load
• Centercutting capable — supports plunge and ramp entry moves
• Long-series length reaches deeper pockets and stepped workpiece features
• Right-hand cut and right-hand helix: standard compatibility with conventional CNC setups

Compatibility

Designed as an OEM-style roughing end mill for use in standard 7/16 inch collet chucks, end mill holders, or shrink-fit toolholders on CNC vertical machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank in a clean, properly sized collet or end mill holder, verifying runout before initiating a cut. Power down and lock out the spindle before changing tooling. Shank diameter tolerance is +0.0001 to -0.0004 inch — confirm holder bore condition to avoid runout that accelerates edge wear.
