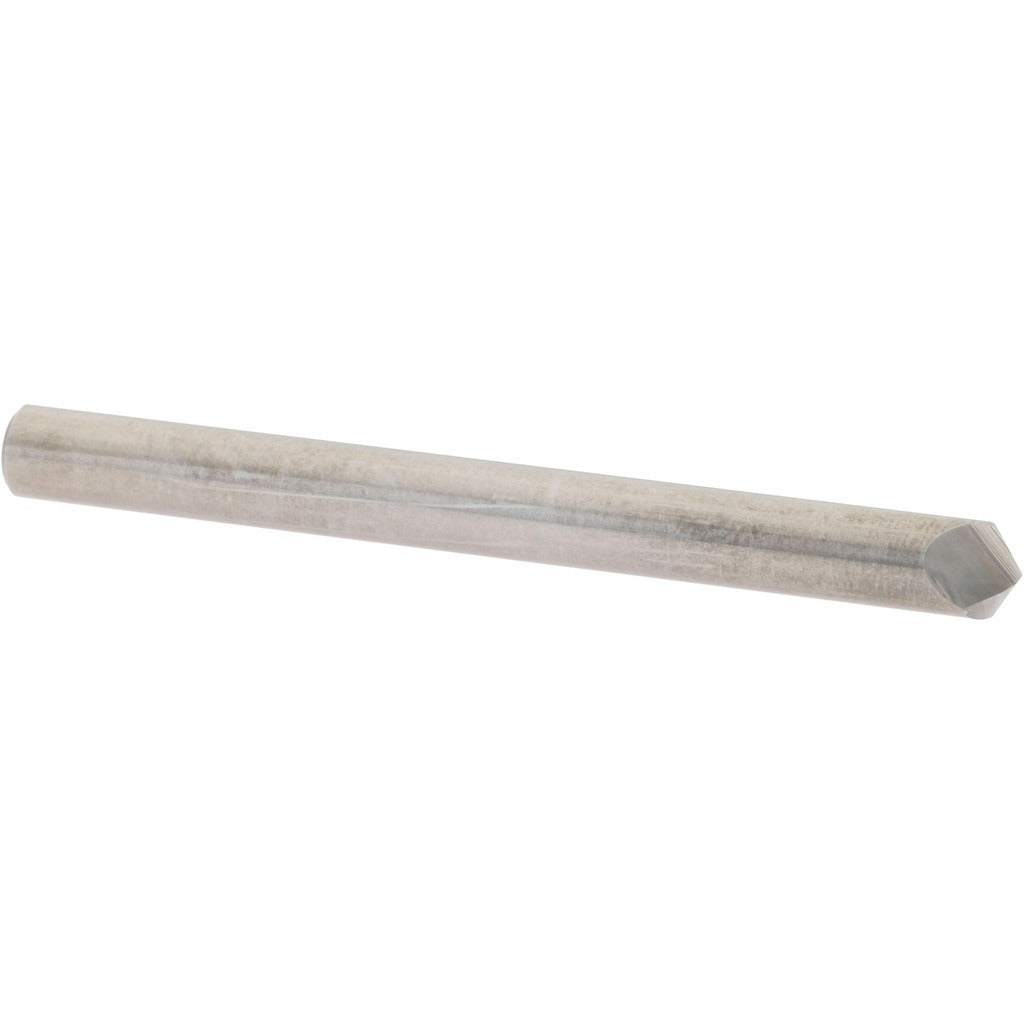

Accupro 2500097 Chamfer Mill 3/16 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500097 is a solid carbide chamfer mill designed for precise chamfering operations on a wide range of workpiece materials. With a 3/16-inch cutter head diameter and a 120-degree included angle, this single-end tool removes material cleanly and consistently at the edge. The 2-flute geometry balances chip evacuation with edge strength, making it well-suited for light to medium chamfering passes. At 2 inches overall length with a matching 3/16-inch shank diameter, the tool fits standard collet systems without an adapter. The bright uncoated finish keeps the carbide substrate exposed, which works well in materials where coating adhesion is unnecessary or where re-sharpening is planned.

This chamfer mill is used in machine shops, production environments, and maintenance settings where deburring, edge breaking, and chamfer preparation are routine tasks. It is appropriate for use in CNC machining centers and manual mills. The right-hand cutting direction is the standard orientation for conventional milling setups. Machinists, tool-and-die technicians, and CNC operators are the primary users. It is suited for chamfering holes, edges, and part features on steel, aluminum, and other machinable materials where a 120-degree chamfer angle is specified.

Key Features

• 120-degree included angle for standard chamfer and edge-break geometry
• Solid carbide construction for rigidity and wear resistance
• 2-flute design supports chip clearance during light to medium passes
• Bright uncoated finish compatible with a broad range of workpiece materials
• Single-end tool with right-hand cutting direction for conventional mill setups
• 3/16-inch shank fits standard collet and end-mill holders without an adapter

Compatibility

Designed as an OEM-style replacement or direct tooling option for standard 3/16-inch collet and end-mill holder systems used in CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully into the collet or end-mill holder and torque the retention system according to the holder manufacturer's specifications. Verify runout with a dial indicator before beginning the cut to protect both the tool and the workpiece.
