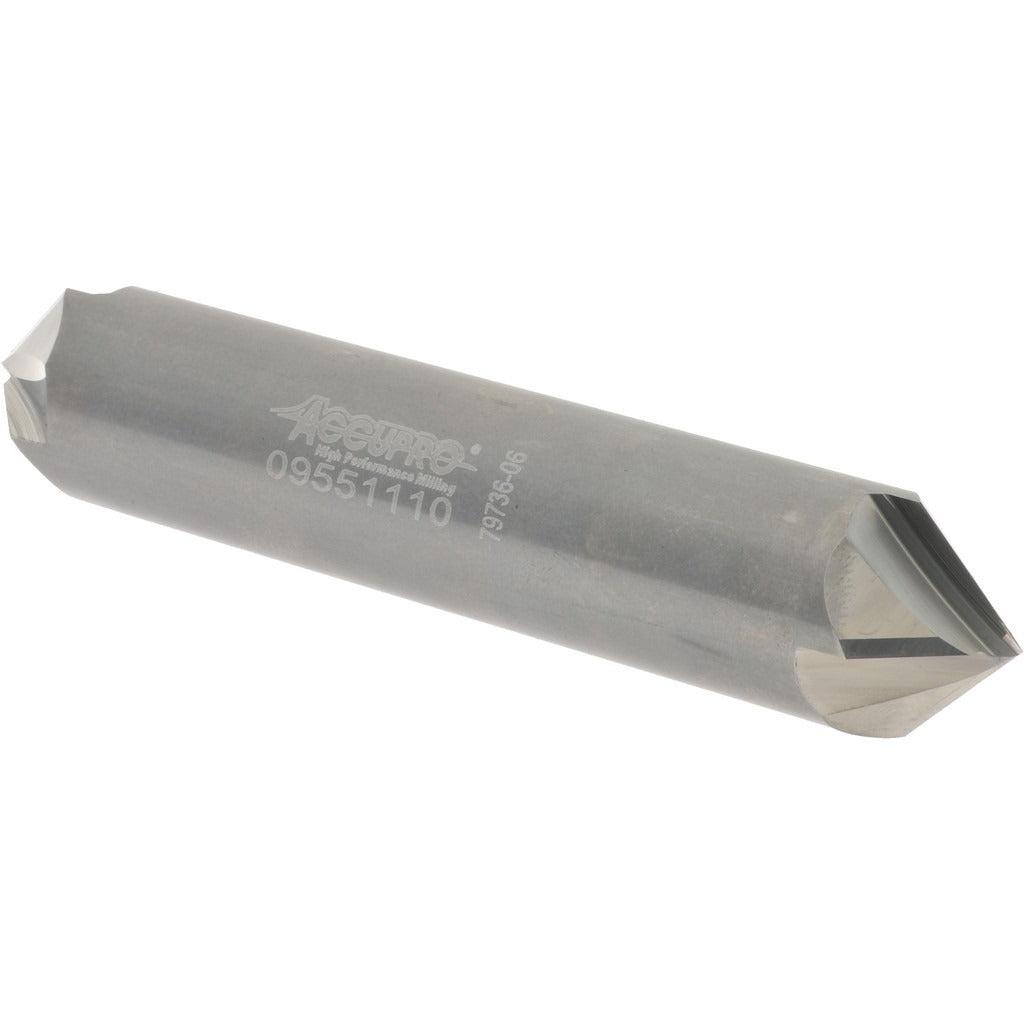

Accupro 2500094 Chamfer Mill 3/4 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 2500094 is a solid carbide chamfer mill designed for chamfering and deburring operations on ferrous and non-ferrous workpiece materials. The cutter features a 3/4 inch cutting head diameter, four flutes, and a 90-degree included angle, making it well-suited for producing consistent, clean chamfers at standard 45-degree edge breaks. The bright, uncoated finish keeps the tool ready for use without additional surface treatment. At 4 inches overall length with a matching 3/4 inch shank diameter, this mill fits standard collet and end mill holders found on most vertical machining centers and CNC mills.

This chamfer mill is used in general machining, tool and die, and production milling environments where precise edge chamfering is required. The double-end configuration and right-hand cutting direction are consistent with standard CNC milling setups. It is appropriate for machinists and CNC operators working in job shops, production facilities, or maintenance shops handling precision metal fabrication tasks.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding milling applications
• 90-degree included angle produces standard 45-degree chamfers on workpiece edges
• Four flutes deliver smooth cutting action and improved chip evacuation
• Bright, uncoated finish suitable for a wide range of base materials
• Double-end type for versatile chamfering applications
• Right-hand cutting direction compatible with standard CNC mill spindle rotation

Compatibility

Designed as an OEM-style chamfer mill for use in standard 3/4 inch collet chucks and end mill holders on vertical machining centers and CNC milling machines.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the machine control in a safe, locked-out state per shop lockout/tagout procedures. Seat the 3/4 inch shank fully into the holder and tighten to the holder manufacturer's recommended clamping specification. Verify runout with a dial indicator before initiating a cut. Tool selection and feed-and-speed parameters should be confirmed by a qualified machinist or CNC programmer prior to use.
