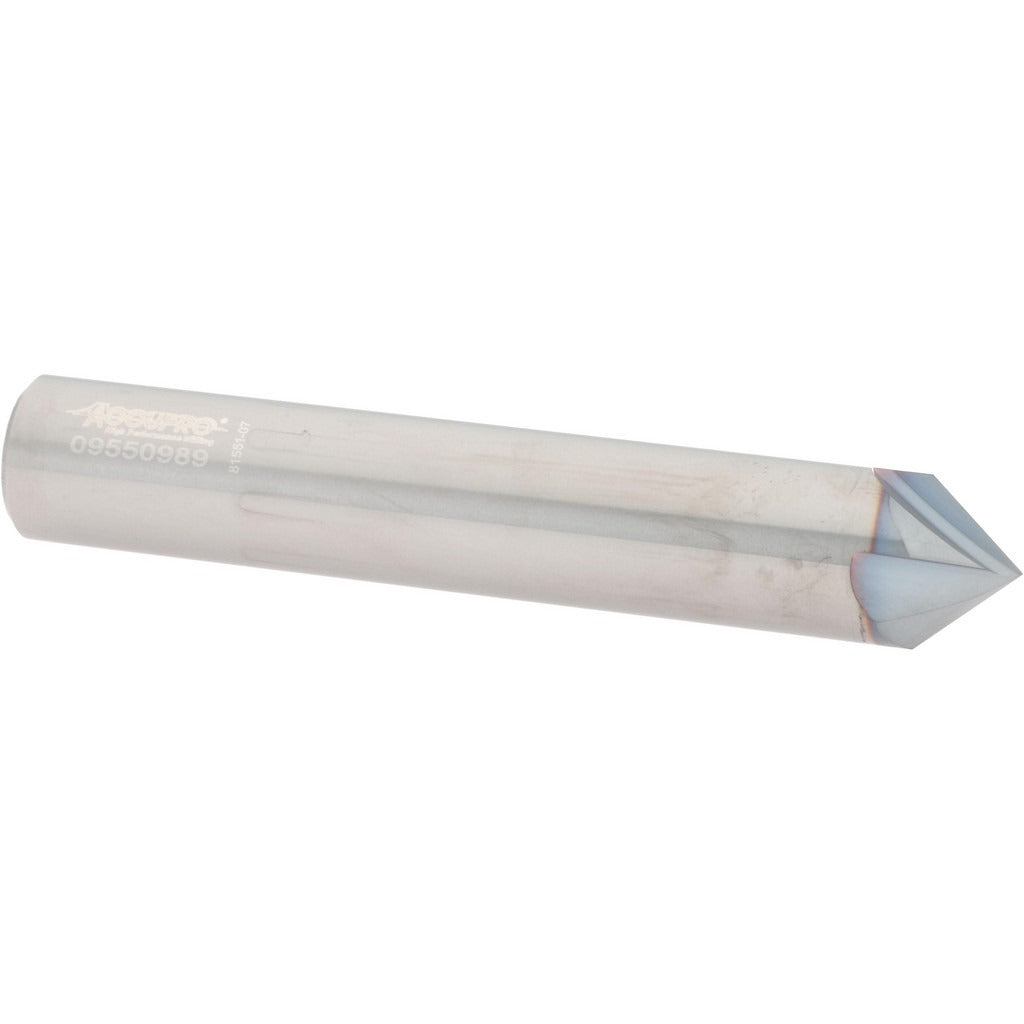

Accupro 2500089 Chamfer Mill 1/2 in 4 Flute Solid Carbide Ticn

Product Description

The ACCUPRO 2500089 is a solid carbide chamfer mill designed for precision chamfering operations on ferrous and non-ferrous materials. Built with four flutes and a right-hand cutting direction, this single-end tool removes material efficiently while producing clean, consistent chamfer angles. The 82-degree included angle makes it well-suited for deburring edges, countersinking, and chamfering drilled or milled features. A TiCN coating improves surface hardness and wear resistance, extending tool life in demanding cutting applications. The 1/2-inch cutter head diameter and matching 1/2-inch shank diameter allow direct chucking in standard end mill holders without adapters.

This chamfer mill is used in machine shop environments for CNC and manual milling operations where repeatable chamfer geometry is required. It is appropriate for production and job-shop use on steel, stainless steel, cast iron, and aluminum workpieces. Machinists and tool-and-die professionals select this tool for edge prep work, lead-in chamfers before threading, and cross-hole deburring. The 3-inch overall length provides clearance for most standard setups without excessive stick-out.

Key Features

• Solid carbide construction for rigidity and dimensional stability at elevated cutting speeds
• TiCN coating increases surface hardness and reduces tool wear in ferrous applications
• 4-flute design balances chip evacuation with surface finish quality
• 82-degree included angle for standard chamfering, deburring, and countersink preparation
• Right-hand cutting direction compatible with conventional CNC and manual mill spindles
• 1/2-inch shank diameter fits directly into standard ER and end mill holders

Compatibility

Designed as an OEM-style solid carbide chamfer mill suitable for use in standard 1/2-inch end mill holders and collet chucks on CNC machining centers and manual knee mills.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the control in a safe state. Secure the 1/2-inch shank in a properly sized collet or end mill holder and torque the retention mechanism according to the toolholder manufacturer's specification. Inspect the cutting edges for chipping before mounting. Follow shop-standard feeds and speeds for solid carbide tooling based on workpiece material and machine capability.
