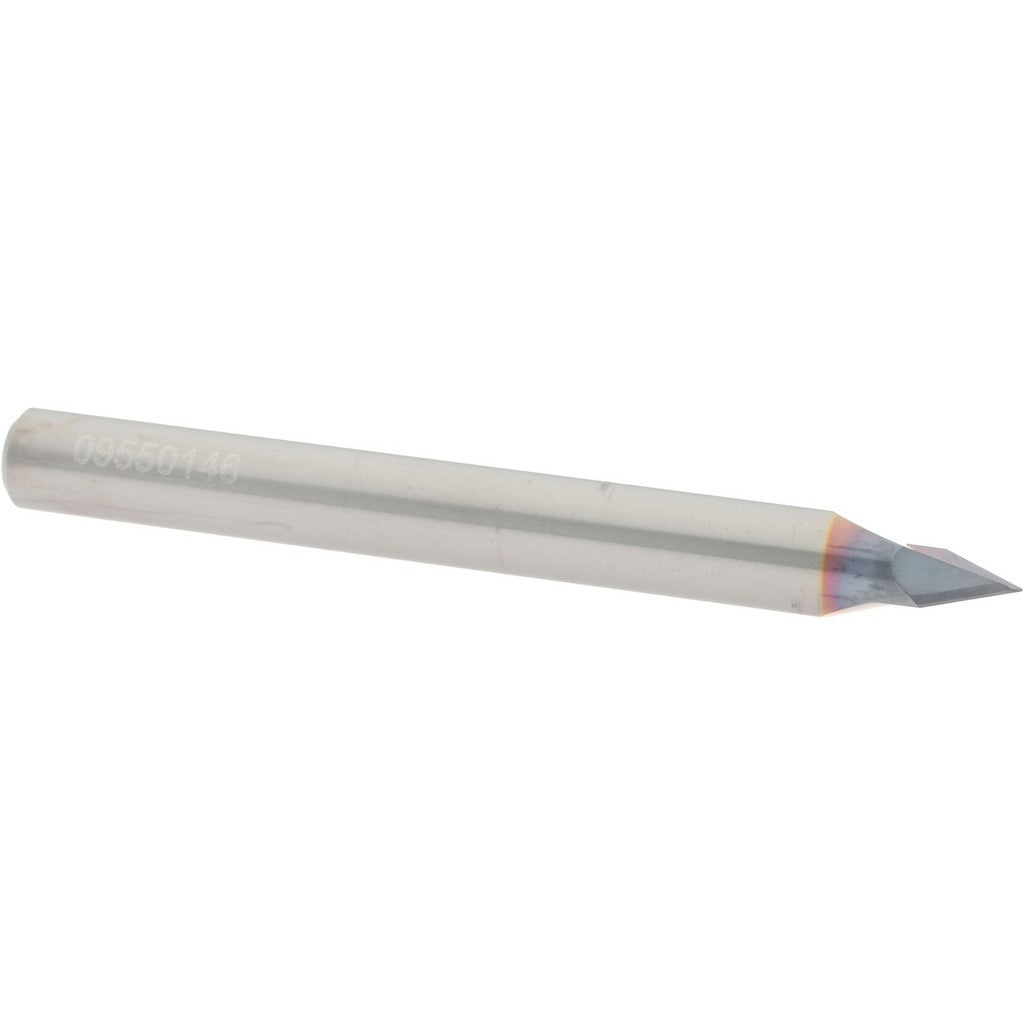

Accupro 2500079 Chamfer Mill 1/4 in 2 Flute Carbide Ticn

Product Description

The ACCUPRO 2500079 is a solid carbide chamfer mill designed for precision chamfering operations on metalworking and machining applications. This single-end tool features a 1/4 inch cutter head diameter and a 60-degree included angle, making it well suited for deburring edges, chamfering holes, and producing consistent angled cuts. The TiCN (Titanium Carbonitride) coating improves surface hardness and wear resistance compared to uncoated carbide, extending tool life in demanding cutting conditions. With 2 flutes and right-hand cutting direction, the 2500079 delivers clean chip evacuation and controlled material removal. It weighs 0.4 pounds and has an overall length of 2.5 inches.

This chamfer mill is intended for use in vertical machining centers, CNC mills, and manual milling machines where chamfering, countersinking, and edge-breaking are required. Its 1/4 inch shank diameter fits standard collets and tool holders commonly found in production and job shop environments. Machinists, tool and die makers, and CNC operators working with steel, stainless steel, cast iron, and similar ferrous materials will find the TiCN coating particularly effective at maintaining edge integrity through extended runs.

Key Features

• Solid carbide construction for rigidity and heat resistance in hard material cutting
• TiCN coating increases surface hardness and reduces tool wear
• 60-degree included angle for consistent chamfer geometry
• 2-flute design promotes efficient chip evacuation
• Right-hand cutting direction compatible with standard spindle rotation
• 1/4 inch shank fits common collets and shrink-fit holders

Compatibility

Designed as an OEM-style replacement and standard production chamfer mill compatible with 1/4 inch collets and tool holders on vertical machining centers and CNC milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before installing or removing the tool. Seat the shank fully into the collet or tool holder and torque the retention mechanism according to the tool holder manufacturer specifications. Verify runout with a dial indicator before cutting to protect tool life and workpiece accuracy.
