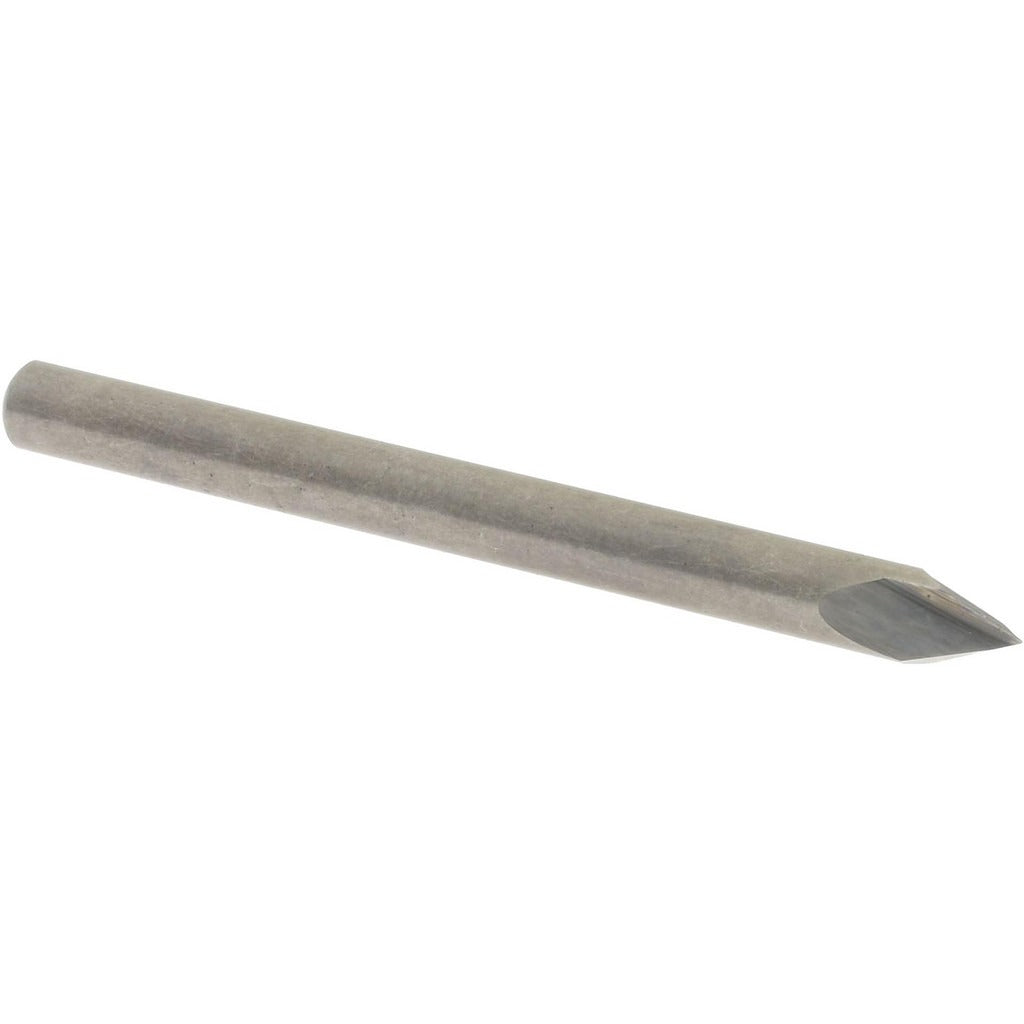

Accupro 2500060 Chamfer Mill 1/8 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500060 is a solid carbide chamfer mill designed for chamfering operations on a wide range of workpiece materials. With a 1/8 inch cutter head diameter and a 60-degree included angle, this single-end tool produces clean, consistent chamfers in a single pass. The 2-flute geometry provides efficient chip evacuation and is suited for the tight tolerances typical of precision machining work. The bright/uncoated finish keeps the carbide substrate exposed, making it a practical choice for non-ferrous materials and general-purpose chamfering where coating buildup is a concern. Overall length is 1.5 inches with a 1/8 inch shank diameter. This tool is handled by machinists and toolroom professionals working on CNC mills and manual milling machines.

This chamfer mill is intended for chamfering applications on metal, plastic, and composite workpieces in job shop, production, and toolroom environments. Its small 1/8 inch diameter makes it well-suited for deburring edges, chamfering drilled or bored holes, and preparing part edges for assembly in tight or difficult-to-reach areas. Right-hand cutting direction is standard for conventional milling setups. The compact overall length of 1.5 inches provides rigidity in setups where tool overhang must be minimized to prevent chatter or deflection.

Key Features

• Solid carbide construction for hardness and wear resistance in precision chamfering applications
• 60-degree included angle for standard chamfer geometry on edges and hole entries
• 2-flute design promotes chip evacuation during cutting passes
• Bright/uncoated finish suitable for non-ferrous and general-purpose materials
• Right-hand cutting direction compatible with standard milling spindle rotation
• Single-end configuration with 1/8 inch shank for use in standard collet or end mill holders

Compatibility

Designed as an OEM-style solid carbide chamfer mill for use in standard 1/8 inch collet chucks or end mill holders on CNC and manual milling machines.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the 1/8 inch shank fully into a matching collet or end mill holder and torque the retention hardware per the tool holder manufacturer specifications. Verify runout with a dial indicator before beginning production cuts to avoid premature tool wear or edge chipping on this small-diameter carbide tool.
