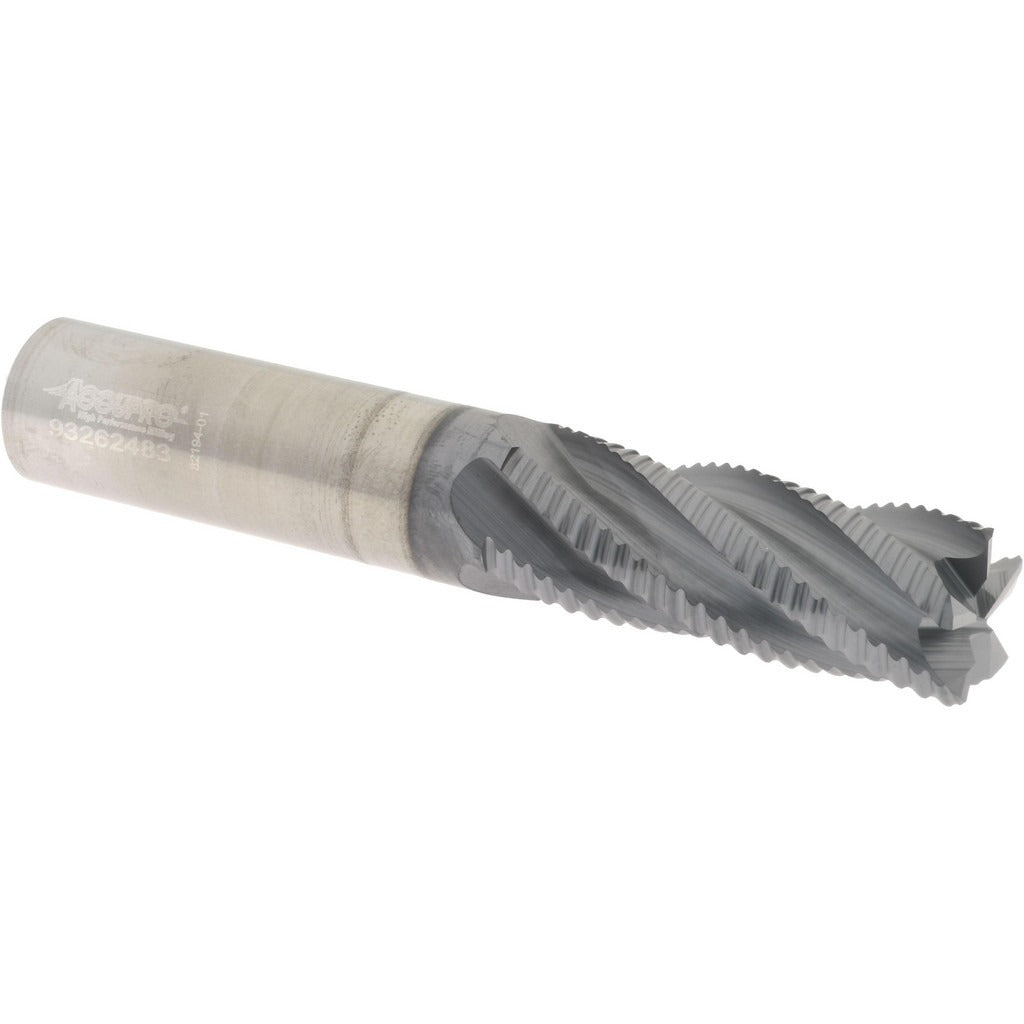

Accupro 2500052 Roughing End Mill 1/2 Inch 5 Flute Carbide

Product Description

The ACCUPRO 2500052 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from micrograin solid carbide and coated with TiCN (Titanium Carbonitride), it handles demanding cuts with good wear resistance and edge retention. The 1/2 inch cutting diameter and fine-pitch, 5-flute geometry produce a controlled chip load suited for finishing passes after roughing or for softer materials where fine pitch excels. At 1.25 inches length of cut and 3 inches overall length, this is a standard-reach tool intended for general-purpose milling work performed by machinists and tool-and-die professionals.

This end mill is suited for use in vertical machining centers, CNC mills, and manual knee mills where a 1/2 inch shank is compatible with the spindle or collet system. The right-hand cutting direction and right-hand flute direction are standard for conventional and climb milling operations. The TiCN coating extends tool life when cutting ferrous and non-ferrous materials. This tool is not centercutting, so it cannot be plunged directly into a workpiece and requires a pre-drilled entry point or ramping approach.

Key Features

• Micrograin solid carbide construction for improved hardness and edge stability
• TiCN coating provides enhanced wear resistance and heat reduction at the cutting edge
• 5-flute fine-pitch design increases contact points for smoother surface finish
• Right-hand cut and right-hand helix for standard milling setups
• 1/2 inch shank diameter with tight tolerance for secure collet or end mill holder fit
• Non-centercutting geometry — requires pre-drilled hole or ramping entry

Compatibility

Designed as a standard 1/2 inch shank single-end roughing end mill compatible with collet chucks, end mill holders, and shrink-fit tooling systems accepting a 1/2 inch shank in CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Power down and lock out the machine spindle before inserting or removing the tool. Ensure the shank is fully seated in the holder to the recommended engagement depth and that the collet or holder is torqued per the toolholder manufacturer specifications. Do not plunge directly into material with this tool, as it is not centercutting.
