Accupro 2500042 Chamfer Mill 1/2 in 4 Flute Solid Carbide Ticn

Product Description

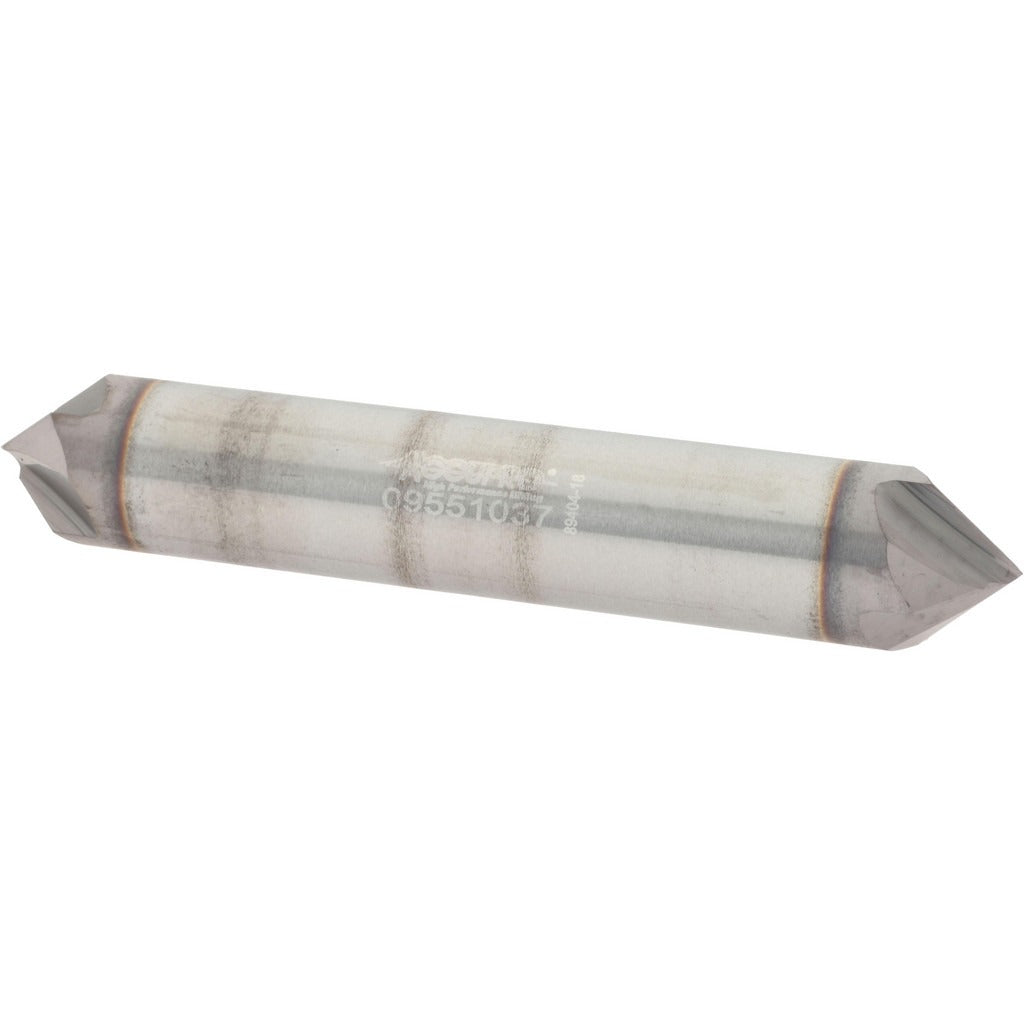

The ACCUPRO 2500042 is a solid carbide chamfer mill designed for precision chamfering and deburring operations on ferrous and non-ferrous metals. With a 1/2 inch cutter head diameter, 4 flutes, and a 90-degree included angle, this double-end mill delivers clean, accurate chamfers in a single pass. The TiCN (Titanium Carbonitride) coating increases surface hardness and reduces friction, extending tool life in high-volume production environments. At 3 inches overall length with a 1/2 inch shank diameter, it fits standard toolholders used on CNC machining centers and manual mills. Right-hand cutting geometry is standard. This tool is used by machinists and tool-and-die professionals in job shops and production facilities.

The 2500042 is suited for chamfering, countersinking, and deburring operations on a variety of workpiece materials including steel, stainless steel, aluminum, and cast iron. Its solid carbide construction handles interrupted cuts and maintains edge sharpness better than high-speed steel alternatives. The double-end configuration adds versatility and extended service before replacement. Typical applications include part edge preparation, thread lead-ins, and weld prep chamfers in both low-volume prototype work and high-volume production runs.

Key Features

• Solid carbide construction for rigidity and long tool life in hard materials
• TiCN coating reduces friction and increases wear resistance
• 90-degree included angle for standard chamfering and countersinking
• 4-flute design provides smooth cutting action and improved chip evacuation
• Double-end configuration extends usable tool life
• Right-hand cutting direction compatible with standard spindle rotation

Compatibility

Designed as a direct-fit chamfer mill for CNC machining centers and manual milling machines using standard 1/2 inch diameter toolholders or collet chucks.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully stopped and the tool is secured in a properly sized collet or end mill holder before operation. Verify runout with a dial indicator after tool installation to confirm concentricity. Follow cutting tool manufacturer feed and speed recommendations for the workpiece material and do not exceed the tool's rated cutting diameter.
