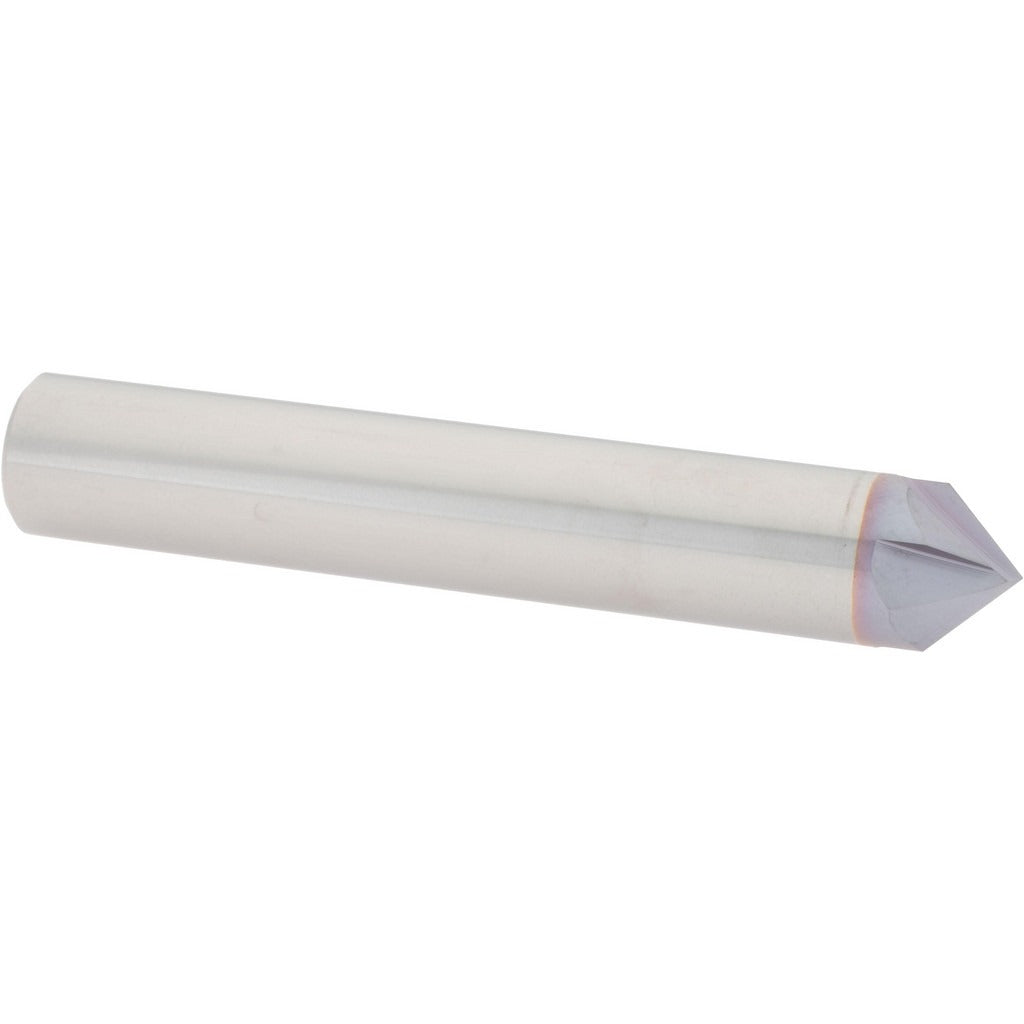

Accupro 2500028 Chamfer Mill 1/2 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 2500028 is a solid carbide chamfer mill designed for precision chamfering operations on metallic and composite workpieces. This single-end tool features a 1/2 inch cutter head diameter, four flutes, and a 90-degree included angle that produces clean, accurate chamfers in a single pass. The TiCN (Titanium Carbonitride) coating increases surface hardness and reduces friction, extending tool life in demanding cutting applications. With a 3 inch overall length and a 1/2 inch shank diameter, this mill is sized for standard toolholders and fits a wide range of machining centers and CNC mills. Machinists and tool-and-die professionals are the primary users of this type of cutter.

The 2500028 chamfer mill is suited for chamfering, deburring, and edge-breaking operations on ferrous and non-ferrous materials. The right-hand cutting direction makes it compatible with conventional spindle rotation on standard vertical and horizontal milling machines. Its solid carbide construction handles higher cutting speeds and feeds compared to high-speed steel alternatives, making it a practical choice for production environments where cycle time and tool wear are key concerns.

Key Features

• 90-degree included angle for standard chamfering and edge-breaking
• Solid carbide construction for rigidity and longer tool life at elevated cutting speeds
• TiCN coating reduces wear and friction for improved performance on hard materials
• Four flutes provide a balance of chip clearance and surface finish quality
• 1/2 inch shank diameter fits standard ER collets and end mill holders
• Right-hand cutting direction compatible with standard CNC and manual mill spindles

Compatibility

Designed as an OEM-style chamfer mill for use in standard 1/2 inch end mill holders, ER collet chucks, and similar toolholding systems on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully in the toolholder and torque the retention system to the toolholder manufacturer specification. Confirm runout with a dial indicator before beginning a cut to protect both the tool and the workpiece.
