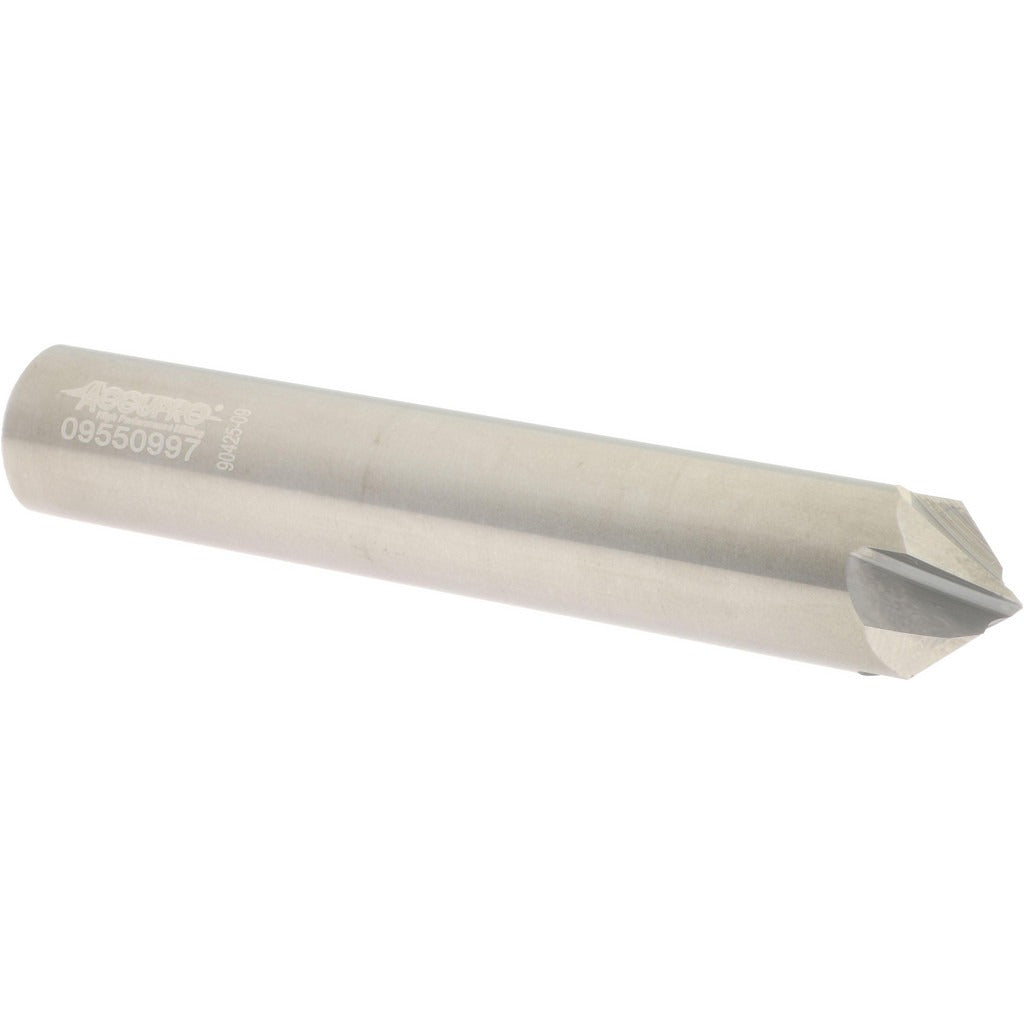

Accupro 2500018 Chamfer Mill 1/2 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 2500018 is a solid carbide chamfer mill designed for precise chamfering operations on metal and composite workpieces. With a 1/2 inch cutter head diameter, 4-flute geometry, and a 90-degree included angle, this single-end tool delivers clean, consistent chamfers in production and job-shop environments. The bright/uncoated finish makes it well suited for use in non-ferrous metals, plastics, and softer alloys where coating adhesion is not required. At 3 inches overall length with a 1/2 inch shank diameter, it fits standard end mill holders and collet chucks commonly found in vertical machining centers and manual knee mills.

This chamfer mill is used in machining operations that require deburring, edge breaking, countersinking, and angled surface preparation. It is appropriate for both low-volume prototype work and higher-volume production runs where dimensional consistency at the chamfered edge is critical. Right-hand cutting direction suits conventional CNC and manual spindle setups. Machinists, toolmakers, and CNC operators working in general metalworking, aerospace part prep, and fabrication shops are the primary installers and users of this tool.

Key Features

• Solid carbide construction provides rigidity and wear resistance compared to HSS equivalents
• 4-flute design improves surface finish and supports higher feed rates on compatible materials
• 90-degree included angle suits standard chamfer and countersink applications
• Bright/uncoated finish is appropriate for non-ferrous metals, plastics, and soft alloys
• Single-end configuration with right-hand cutting direction for standard spindle use
• 1/2 inch shank diameter fits common end mill holders and ER collet systems

Compatibility

Designed as an OEM-style solid carbide chamfer mill compatible with standard 1/2 inch end mill holders, ER collet chucks, and milling machine spindles that accept 1/2 inch shank tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and the control is in an E-stop or tool-change state before loading or removing the tool. Seat the shank fully in the collet or holder and torque the retention system to the machine or toolholder specification. Verify runout with a dial indicator before beginning a cut, as excessive runout will accelerate wear on carbide flutes.
