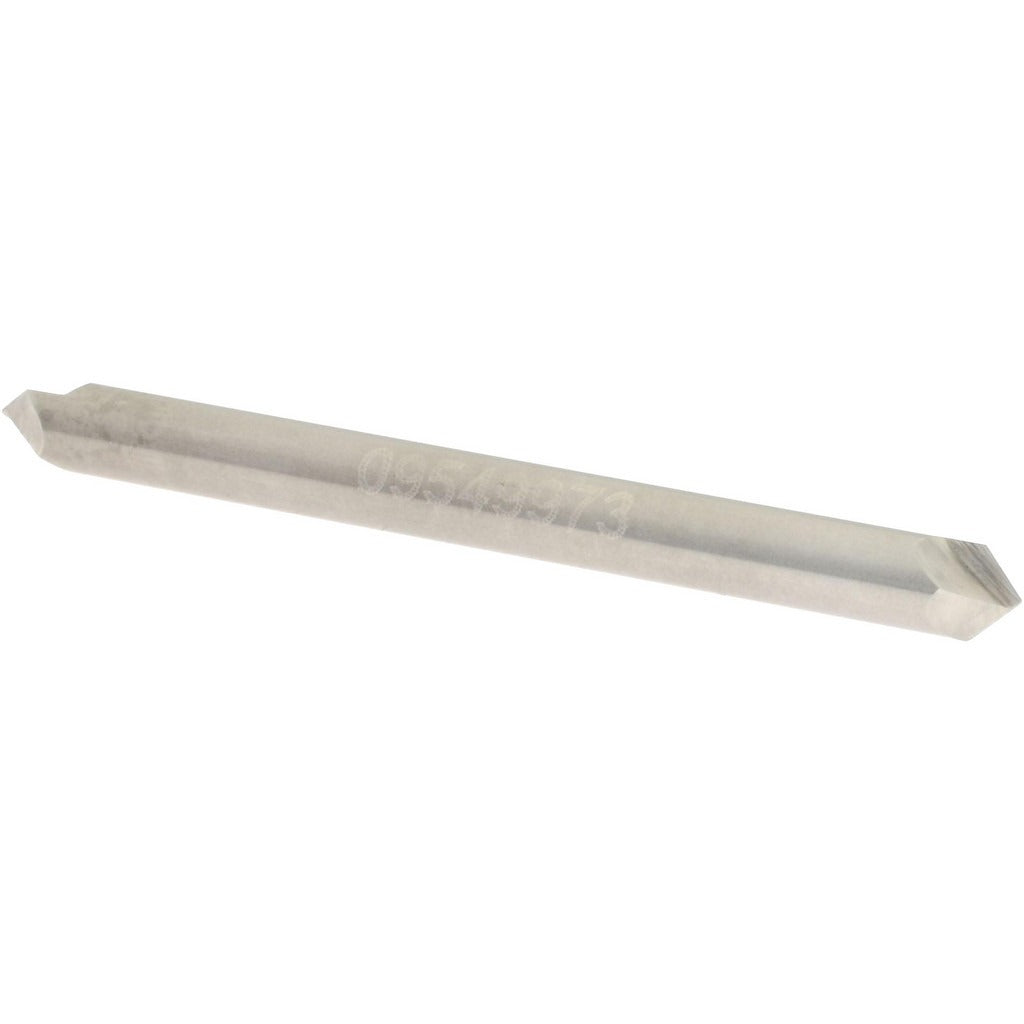

Accupro 2500004 Chamfer Mill 1/8 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500004 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on a wide range of workpiece materials. The cutter head measures 1/8 inch in diameter with a matching 1/8 inch shank diameter, making it suitable for small-feature work where precision entry is required. It runs two flutes in a right-hand cutting direction and features a 90-degree included angle for consistent chamfer geometry. The bright, uncoated carbide substrate provides good wear resistance on non-ferrous metals, plastics, and soft steels without the added cost of a coating. Machinists and tool and die professionals are the primary users of this tool in both manual and CNC milling applications.

This chamfer mill is suited for light-duty chamfering tasks in job shop, production, and prototype environments. Its compact 1/8 inch diameter makes it a practical choice for tight geometries, small bores, and edge work on precision components. The double-end geometry allows for efficient use across both ends of the tool where the application permits, extending effective tool life. It is appropriate for use on CNC machining centers, manual knee mills, and drill presses equipped with appropriate toolholding.

Key Features

• 1/8 inch cutter head diameter with 1/8 inch shank for compact, precise chamfering
• 2-flute, right-hand cutting geometry for clean chip evacuation
• 90-degree included angle delivers consistent, repeatable chamfer profiles
• Solid carbide construction provides rigidity and wear resistance in demanding applications
• Bright, uncoated finish suited for non-ferrous metals, plastics, and soft steels
• Double-end design for extended usable tool life

Compatibility

Designed as an OEM-style replacement or direct-use chamfer mill for standard 1/8 inch toolholding systems on CNC machining centers and manual milling machines requiring a 90-degree chamfer profile.

Installation Notes

Installation is performed by a machinist or toolroom technician using a compatible 1/8 inch collet or end mill holder. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify runout with a dial indicator after seating to prevent premature tool wear or chipping. Follow machine manufacturer guidelines for spindle speed and feed rate selection based on workpiece material.
