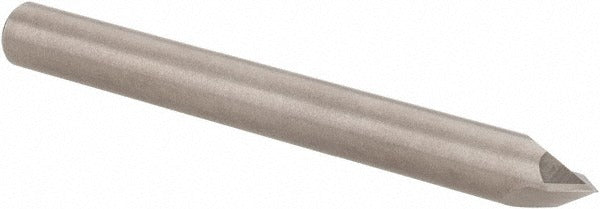

Accupro 2500002 Chamfer Mill 1/4 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 2500002 is a solid carbide chamfer mill designed for precise chamfering operations on metalworking applications. With a 1/4 inch cutter head diameter and a 90-degree included angle, this single-end tool produces clean, consistent chamfers in a single pass. The bright/uncoated finish makes it well suited for use in non-ferrous metals and materials where coating buildup is a concern. At 2-1/2 inches overall length with a 1/4 inch shank diameter, it fits standard collet chucks and end mill holders found on most CNC machining centers and manual mills. Machinists and tool-and-die professionals install this type of cutter for deburring edges, countersinking, and producing angled entry features on drilled or bored holes.

This chamfer mill is intended for chamfering operations on a variety of materials using standard milling equipment. The 2-flute, right-hand cutting geometry suits applications where chip clearance and surface finish are priorities. It is appropriate for use in job shop, production machining, and maintenance environments where a compact, small-diameter chamfer mill is needed for 90-degree edge preparation work on workpieces held in vises, fixtures, or tombstones.

Key Features

• Solid carbide construction for rigidity and wear resistance at high cutting speeds
• 90-degree included angle for standard chamfer and deburring work
• 2-flute, right-hand cutting geometry for efficient chip evacuation
• Bright/uncoated finish suited for non-ferrous and general-purpose machining
• 1/4 inch shank diameter fits common collet and end mill holder sizes
• Single-end design with 2-1/2 inch overall length for compact tool overhang

Compatibility

Designed as a direct-fit chamfer mill for CNC machining centers, knee mills, and drill-mill setups using standard 1/4 inch collets or end mill holders. Suitable for chamfering and deburring operations where a 90-degree single-end carbide tool is specified.

Installation Notes

Installation is performed by a machinist or toolroom technician. Secure the 1/4 inch shank in a clean, properly sized collet or end mill holder and torque the drawbar or collet nut according to the machine manufacturer's specifications. Inspect the cutting edges for chips or damage before mounting. Always verify spindle direction is set to right-hand rotation before engaging the workpiece.
