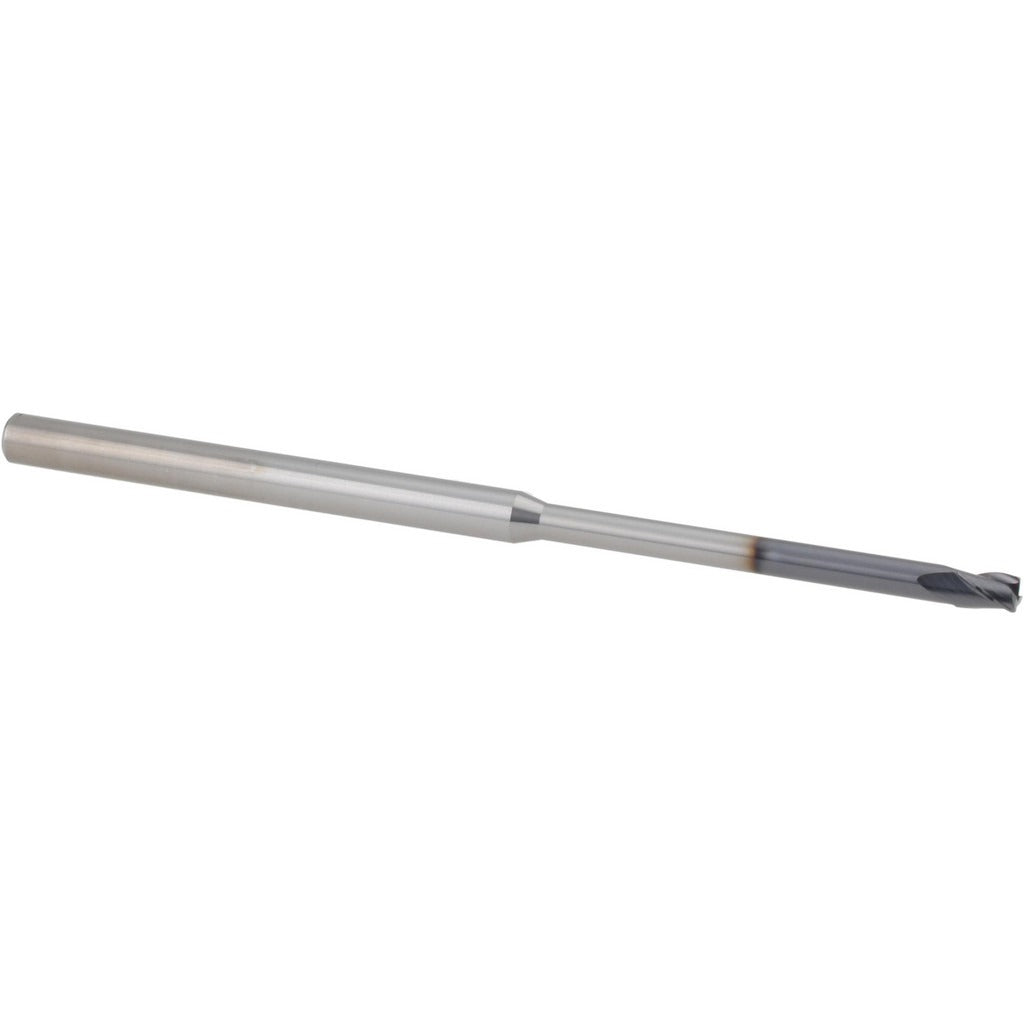

Accupro 15024184 Corner Radius End Mill 0.0938in 3 Flute

Product Description

The ACCUPRO 15024184 is a solid carbide corner radius end mill designed for precision milling in tight-tolerance applications. Built from micrograin carbide and coated with AlTiN (aluminum titanium nitride), it handles hardened materials and high-temperature cutting environments. The tool measures 0.0938 inches in diameter with a 0.0100 inch corner radius, a 0.875 inch length of cut, and a 2.5 inch overall length. Three right-hand spiral flutes with a 30-degree helix angle promote efficient chip evacuation. The single-end, centercutting design allows plunge entry. This tool is used by machinists in tool-and-die, mold making, aerospace, and precision parts manufacturing.

This end mill fits into the miniature series category, suited for fine-detail work on small features, slots, and contours where standard-diameter tools cannot reach. The 1.125 inch reach length and extended reach geometry allow access to deep or recessed pockets without deflection concerns. The 0.125 inch (1/8 inch) shank diameter is compatible with standard collet systems used in CNC machining centers and manual mills. Typical applications include profiling, slotting, and contouring in aluminum, stainless steel, titanium, and hardened tool steels.

Key Features

• AlTiN coating provides heat resistance and extended tool life in hard and abrasive materials
• Micrograin solid carbide construction delivers rigidity and edge retention at small diameters
• Centercutting design enables direct plunge milling without a pre-drilled hole
• Extended reach with 1.125 inch reach length for deep pocket and recessed feature access
• 30-degree helix angle promotes smooth cutting action and effective chip removal
• Right-hand flute direction and cutting direction for standard CNC and manual mill setups

Compatibility

Designed for use with standard 1/8 inch collet holders on CNC machining centers and manual milling machines. Fits any spindle system accepting a 0.125 inch shank diameter tool.

Installation Notes

Installation and tool changes must be performed with the machine fully powered down and spindle at a complete stop. Ensure the collet and collet nut are clean and free of debris before seating the shank to maintain runout tolerance. A licensed machinist or qualified CNC operator should verify tool projection and reach before starting a new program. Do not exceed the manufacturer-rated speeds and feeds for the workpiece material and tool diameter.
