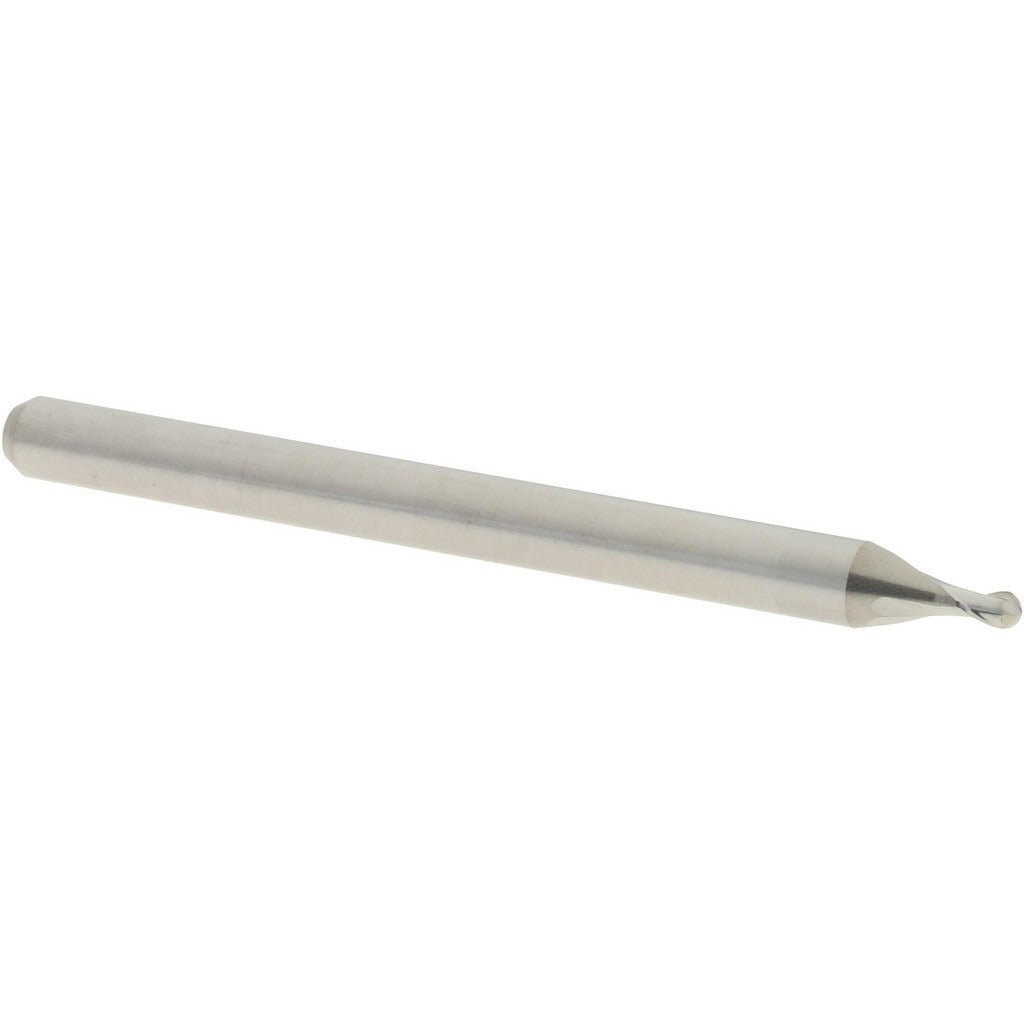

Accupro 15024150 Ball End Mill 1.30mm 2 Flute Carbide

Product Description

The ACCUPRO 15024150 is a solid carbide ball end mill designed for precision milling of contoured surfaces, slots, and profiles in a wide range of materials. With a 1.30 mm mill diameter and a 1.95 mm length of cut, this tool is built for small-feature detail work where dimensional accuracy is critical. The micrograin carbide substrate delivers the hardness and edge retention needed for demanding cuts. A 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. The bright, uncoated finish makes this mill suitable for applications where coating interaction with the workpiece material is a concern.

This end mill is intended for use in CNC machining centers, high-speed spindles, and precision manual mills where small-diameter tooling is required. It is well suited for die and mold work, medical component machining, and fine detail cuts in ferrous and non-ferrous materials. The 3.00 mm shank diameter provides a secure tool-holder grip despite the small cutting diameter. Single-end configuration means the tool is replaced rather than flipped when the cutting edge is worn.

Key Features

• 1.30 mm mill diameter with a mill diameter tolerance of plus 0.0000 and minus 0.0010 inches for tight dimensional control
• Micrograin solid carbide construction for superior hardness and edge retention
• 30-degree right-hand spiral helix promotes efficient chip evacuation
• Bright, uncoated finish suitable for a broad range of workpiece materials
• 3.00 mm shank diameter with a shank tolerance of minus 0.0001 to minus 0.0003 inches for precise holder fit
• Single-end, right-hand cutting direction

Compatibility

Designed as a standard-shank ball end mill for use in collet chucks and end mill holders accepting a 3.00 mm shank diameter.

Installation Notes

Installation of small-diameter end mills should be performed by a qualified machinist or CNC tooling technician. Ensure the spindle and tool holder are clean and free of debris before seating the shank. Torque the collet or set screw to the tool-holder specification and verify runout with a dial indicator before cutting. Avoid side-loading forces that exceed the rated capacity of a 1.30 mm diameter tool, as microfracture at the cutting edge can occur without visible warning.
