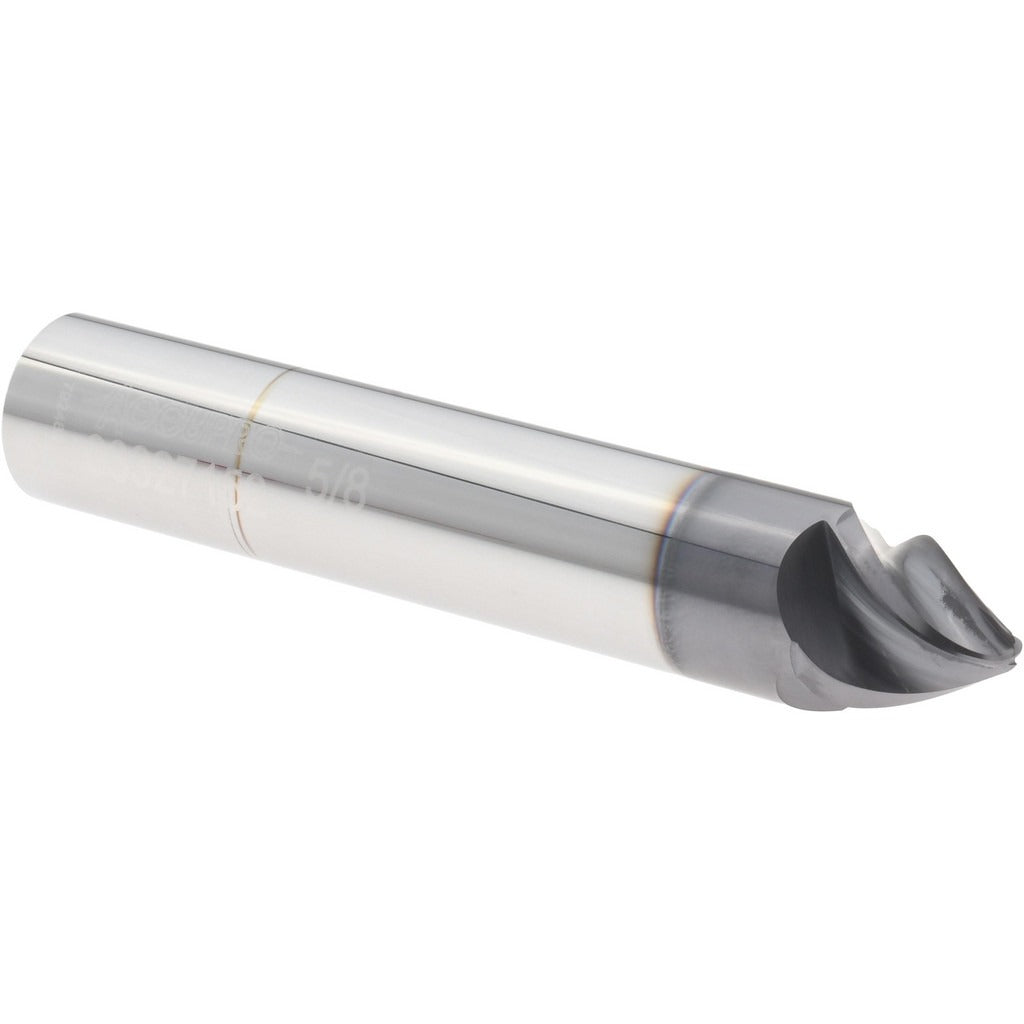

Accupro 14915624 Taper Form End Mill Altin+ Carbide

Product Description

The ACCUPRO 14915624 is a solid carbide barrel cutter end mill with a taper form end type, designed for high-performance machining applications. Built from solid carbide and finished with an AlTiN+ coating, this tool delivers excellent heat resistance and wear life in demanding cutting environments. The 30-degree taper angle per side and 4-flute geometry support efficient material removal with improved surface finish quality. With a 5/8-inch shank diameter and an overall length of 3 inches, the 14915624 is suited for CNC milling operations where rigidity and precision are required. Licensed machinists and tooling professionals specify this style for 5-axis and multi-axis finishing work.

This barrel cutter end mill is applied in precision machining environments including aerospace, die-and-mold, and complex contour milling. The taper form geometry is particularly effective for finishing curved and sculpted surfaces where a ball end mill would leave excessive tool marks. With a 0.5469-inch length of cut and a 0.6250-inch small end diameter, the tool provides a well-defined cutting zone suited for both roughing passes and semi-finish to finish operations on hardened materials and alloy steels.

Key Features

• Solid carbide construction for rigidity and thermal stability in high-speed cuts
• AlTiN+ finish coating extends tool life in abrasive and high-temperature cutting conditions
• 30-degree taper angle per side enables efficient contour and barrel-form milling
• 4-flute design balances chip evacuation and cutting stability
• 0.5469-inch length of cut with 0.6250-inch small end diameter for controlled engagement
• 3-inch overall length with 5/8-inch shank for strong tool holding in standard collets and end mill holders

Compatibility

Designed for use in CNC machining centers and milling machines equipped with standard 5/8-inch tool holders, collet chucks, or end mill holders accepting that shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with CNC tooling setup procedures. Ensure the machine spindle is fully stopped and locked out before tool changes. Seat the shank fully into the holder and torque the retention mechanism according to the tool holder specification. Verify runout with a dial indicator before beginning production cuts to protect both the workpiece and the cutting edge.
