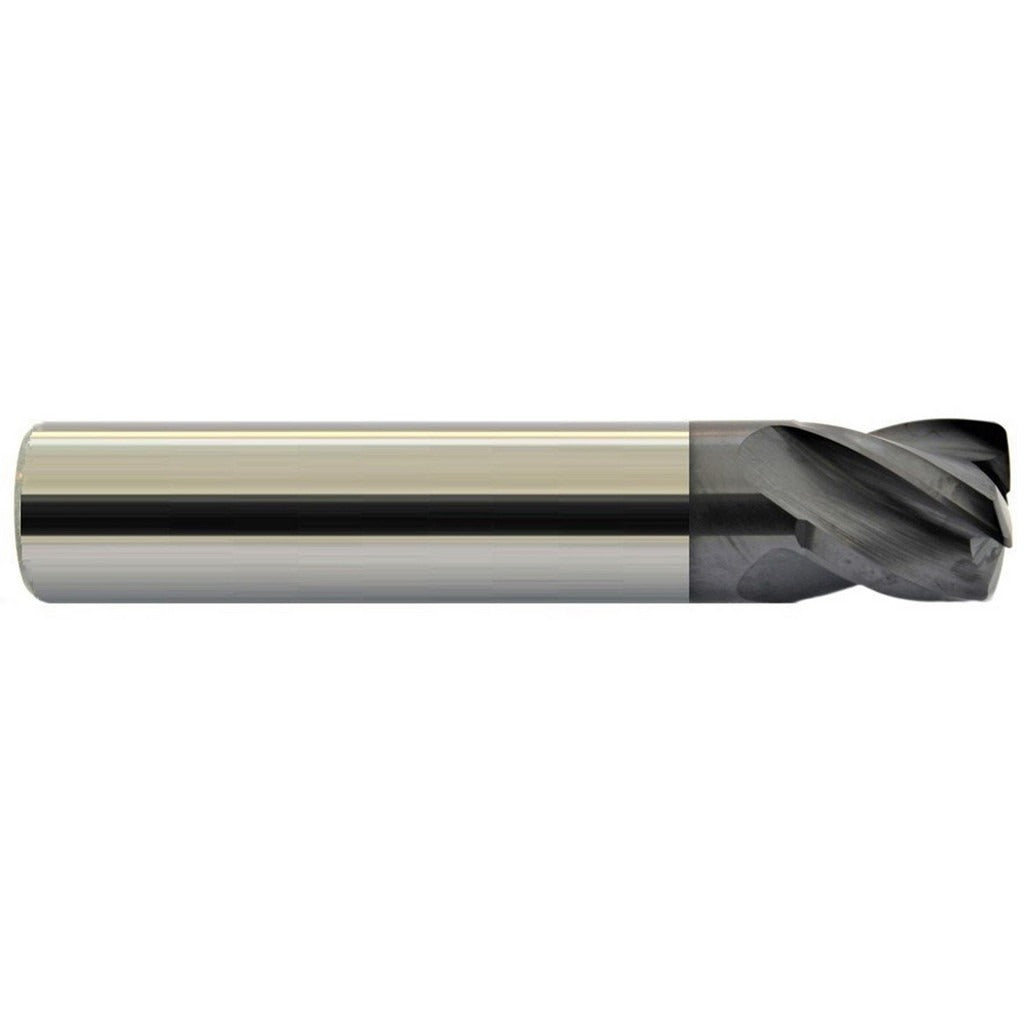

Accupro 14915609 Barrel Cutter End Mill 4 Flute Altin+

Product Description

The ACCUPRO 14915609 is a solid carbide barrel cutter end mill with a lens form end geometry, designed for high-efficiency finishing and semi-finishing operations in modern CNC machining centers. The lens form profile generates a large effective cutting radius, allowing greater stepover distances compared to traditional ball end mills while maintaining fine surface finish quality. With a 4-flute configuration and an AlTiN+ coating, this tool handles hardened steels, stainless alloys, and aerospace materials at elevated cutting speeds. The 1/2 inch shank diameter and 3 inch overall length make it compatible with standard CAT, BT, HSK, and shrink-fit tooling systems commonly used in production environments.

This end mill is suited for 5-axis and 3+2 machining applications where barrel or oval-form tools are programmed for flank milling of complex contoured surfaces. Typical applications include mold and die finishing, turbine blade profiling, and structural aerospace component machining. The lens form geometry reduces the number of passes required to achieve target surface roughness, making it a practical choice for shops running high-value, tight-tolerance parts. Machinists and CNC programmers working in job shops or production facilities will find this tool appropriate for both roughing-to-finish and direct finish strategies on hardened workpieces.

Key Features

• Lens form barrel geometry enables large stepover distances for faster surface finishing
• Solid carbide construction provides rigidity and heat resistance at high cutting speeds
• AlTiN+ coating improves wear resistance and thermal protection in dry or minimal-lubricant cutting
• 4-flute design balances chip evacuation and cutting edge strength
• 9/16 inch length of cut accommodates moderate-depth contouring passes
• 1/2 inch shank diameter fits standard CAT40, BT40, HSK, and shrink-fit holders

Compatibility

Designed as an OEM-style solid carbide barrel end mill for use in CNC machining centers accepting 1/2 inch shank toolholders; no specific model or system compatibility was stated in the product data.

Installation Notes

Installation and use of this end mill should be performed by qualified machinists or CNC tooling specialists. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before loading or changing tooling. Seat the shank fully into the toolholder and torque the retention mechanism to the toolholder manufacturer's specification. Verify runout with a dial indicator after installation, as excessive runout will accelerate edge wear and degrade surface finish quality.
