Accupro 14883552 Square End Mill 0.065 in 3 Flute Carbide

Product Description

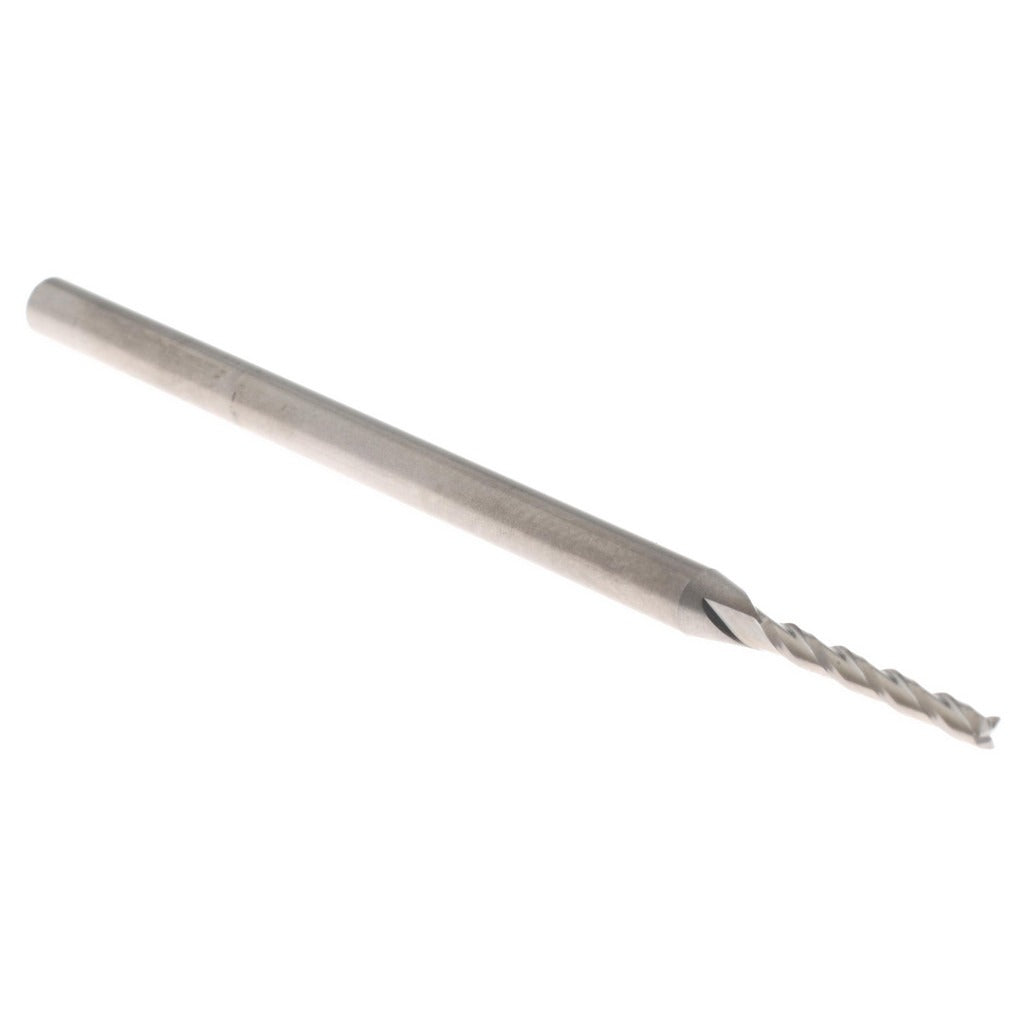

The ACCUPRO 14883552 is a solid carbide square end mill designed for precision milling operations in metal, alloy, and composite materials. With a 0.065-inch cutting diameter and a 0.5-inch length of cut, this tool is sized for fine detail work, slotting, and profiling in tight geometries. The 3-flute, right-hand spiral configuration with a 30-degree helix angle provides efficient chip evacuation while maintaining a strong cutting edge. Micrograin carbide construction delivers the rigidity and wear resistance required for demanding CNC and manual milling applications. The bright, uncoated finish suits general-purpose use across a range of workpiece materials.

This end mill is suited for use in CNC machining centers, vertical mills, and manual knee mills where small-diameter tooling is required. The 0.125-inch shank diameter fits standard collet systems and tool holders commonly found in both production and job-shop environments. Single-end geometry and a 2.5-inch overall length make it appropriate for shallow-to-moderate depth cuts in ferrous and non-ferrous metals. Machinists, tool-and-die makers, and precision fabricators working on close-tolerance features will find this tool well matched to finish profiling and light slotting passes.

Key Features

• 0.065-inch cutting diameter with mill diameter tolerance of +0.0000 / -0.0010 inches for consistent dimensional output
• Solid micrograin carbide construction for superior rigidity and edge retention compared to HSS tooling
• 3-flute, right-hand spiral flute design with 30-degree helix for effective chip removal
• Center-cutting geometry allows plunge entry as well as conventional profiling passes
• Bright, uncoated finish — suitable for general-purpose milling without coating-related thermal concerns
• Single-end configuration with 0.125-inch shank diameter compatible with standard collet systems

Compatibility

Designed as a general-purpose replacement or production solid carbide square end mill for use in standard collet-style and tool-holder systems accepting a 0.125-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following standard tool-change procedures for the machine in use. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify collet size and tool-holder runout before securing the shank; excessive runout at this diameter will accelerate edge wear and reduce cut quality. Follow the machine manufacturer and tooling guidelines for speeds, feeds, and depth of cut appropriate to this diameter.
