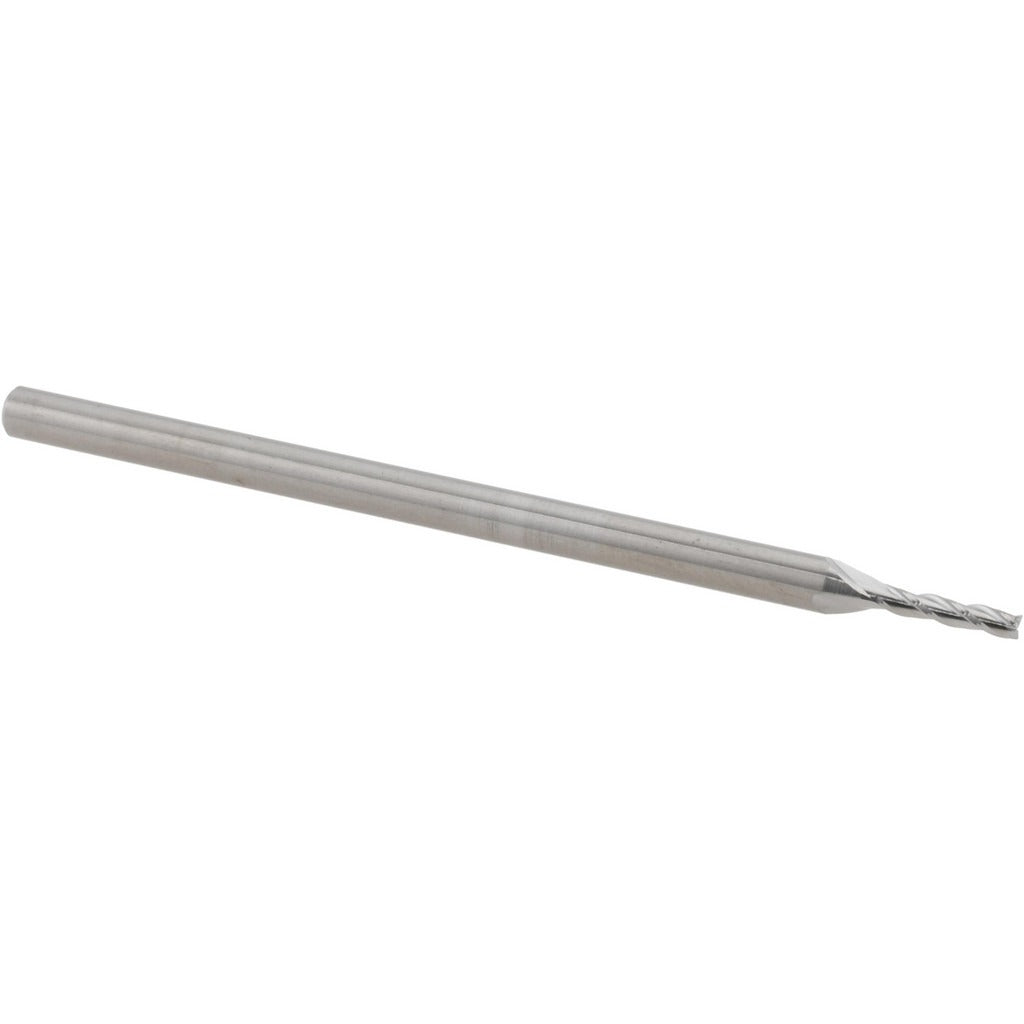

Accupro 14883522 Square End Mill 1/16 in 3 Flute Carbide

Product Description

The ACCUPRO 14883522 is a solid carbide square end mill designed for precision milling operations in metal, composites, and engineered materials. With a 1/16 inch (0.0625 inch) mill diameter and a 0.312 inch length of cut, this tool is built for tight-tolerance work in confined areas and fine-detail features. The three-flute, right-hand spiral geometry with a 30-degree helix angle promotes efficient chip evacuation while maintaining rigidity in the cut. Micrograin carbide substrate provides the hardness and wear resistance needed for demanding applications. This end mill is installed and used by machinists and tool-and-die professionals in CNC and manual milling operations.

This end mill suits small-feature milling tasks in both production shop and job-shop environments. The 1/8 inch shank diameter and 2.5 inch overall length make it compatible with standard collet and end mill holder setups on vertical milling machines and CNC machining centers. The bright, uncoated finish is appropriate for general-purpose applications where coating is not required. The centercutting design allows for direct plunge entry. This tool is intended for single-end use and is not reversible.

Key Features

• Solid micrograin carbide construction for high hardness and wear resistance
• Three-flute, right-hand spiral design with 30-degree helix angle for efficient chip evacuation
• Centercutting capable — supports direct plunge milling
• 1/16 inch mill diameter with tight tolerance of +0.0000 / -0.0010 inches for precision fitment
• Bright, uncoated finish suitable for general-purpose milling without coating requirements
• Single-end configuration; no extended reach or chipbreaker features

Compatibility

Designed for use in standard collet chucks and end mill holders accepting a 1/8 inch shank diameter. Part of the ACCUPRO ASQSC3-CC-30H series of solid carbide square end mills in the fractional inch measurement system.

Installation Notes

This end mill is installed by machinists using appropriate collet or shrink-fit toolholders rated for the 1/8 inch shank diameter. Verify runout and tool projection before beginning a cut. Secure the shank to the full recommended engagement depth in the holder to prevent pullout. Follow machine manufacturer guidelines and shop safety protocols when setting feeds, speeds, and depth of cut for the workpiece material.
