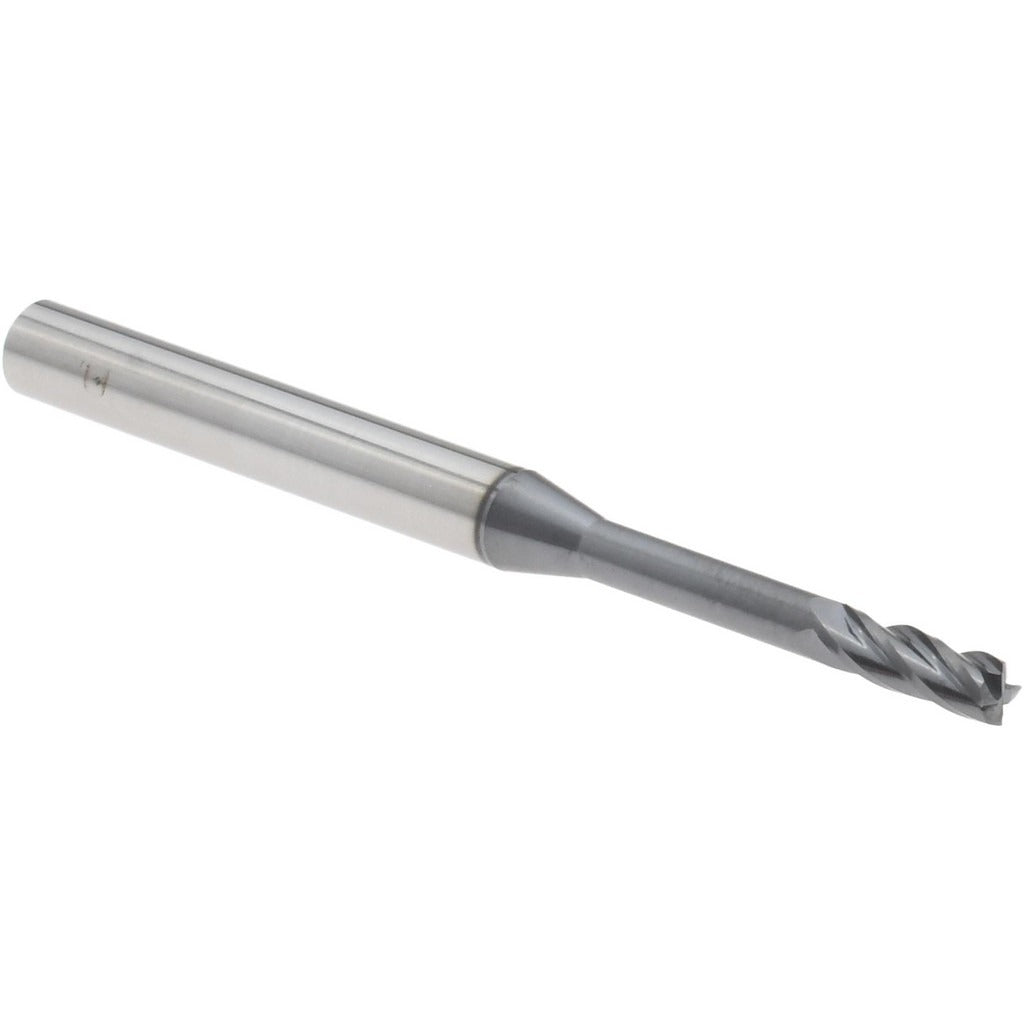

Accupro 14883462 Square End Mill 0.0781 in 4 Flute Altin

Product Description

The ACCUPRO 14883462 is a solid carbide square end mill designed for precision machining in metalworking and manufacturing environments. Measuring 0.0781 inches in diameter with a 0.125-inch shank and 1.5-inch overall length, this tool is built for tight-tolerance work in steel, stainless, and hardened materials. The AlTiN coating provides heat resistance and extended tool life under high-speed cutting conditions. With a 30-degree helix and right-hand spiral flute geometry, it delivers efficient chip evacuation and smooth cutting action. This is a single-end, center-cutting tool sold individually and installed by machinists in CNC milling operations.

This end mill is suited for slot milling, profiling, and contouring in ferrous and exotic alloy workpieces. The extended reach design, with a 0.59-inch neck length, makes it well-suited for reaching into pockets and cavities where standard-reach tools cannot access. The micrograin carbide substrate supports rigidity at small diameters, reducing deflection in demanding cuts. Compatible with 1/8-inch collet or chuck systems on CNC machining centers and manual mills.

Key Features

• AlTiN coating for elevated heat resistance and extended tool life in ferrous materials
• Micrograin solid carbide substrate for rigidity and reduced deflection at 0.0781-inch diameter
• 4-flute, right-hand spiral design with 30-degree helix for efficient chip evacuation
• Center-cutting geometry allows plunge entry into workpiece
• Extended reach with 0.59-inch neck length for pocket and cavity access
• Mill diameter tolerance of +0.0000 / -0.0010 inches for precise fitment

Compatibility

Designed for use with 1/8-inch collet systems on CNC machining centers and manual milling machines requiring a single-end square profile end mill in the 5/64-inch diameter range.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling procedures. Secure the shank in a compatible 1/8-inch collet or end mill holder and verify runout with a dial indicator before cutting. Confirm spindle speed and feed rate are appropriate for the workpiece material and tool diameter before engaging the cut. Do not exceed the recommended depth of cut for the listed length of cut range.
