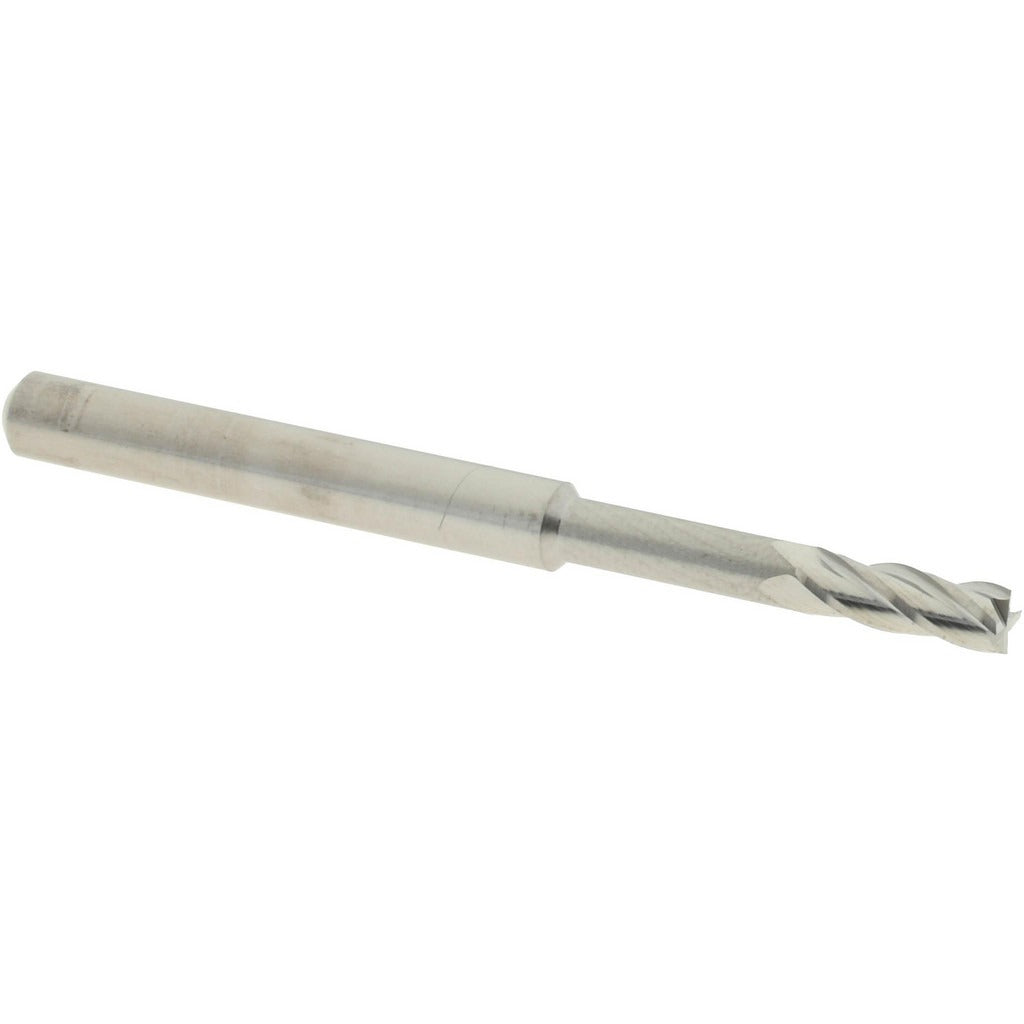

Accupro 14883461 Square End Mill 3/32 in 4 Flute Carbide

Product Description

The ACCUPRO 14883461 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 3/32 inch (0.0938 inch) cutting diameter and a 0.279 inch length of cut, this tool removes material cleanly in tight spaces where larger end mills cannot reach. Four right-hand spiral flutes with a 30-degree helix angle promote efficient chip evacuation and smooth cutting action. The micrograin carbide construction provides hardness and wear resistance suited to high-speed milling of ferrous and non-ferrous materials. The bright, uncoated finish makes this tool suitable for applications where coating is not required or preferred.

This end mill is used in CNC machining centers, manual knee mills, and precision tool rooms for slotting, profiling, and contouring cuts. The 1/8 inch shank diameter fits standard collets and tool holders used in small-diameter tooling setups. The extended reach design, with a 0.625 inch reach length and 1-1/2 inch overall length, allows access to deeper features and pockets. It is center-cutting, allowing direct plunge entry into workpiece material. Machinists working on small components, die work, and detailed mold features will find the geometry well suited to those tasks.

Key Features

• Solid micrograin carbide construction for hardness and edge retention
• 3/32 inch cutting diameter with a +0.0000 / -0.0010 inch diameter tolerance
• 4 right-hand spiral flutes with 30-degree helix angle for efficient chip evacuation
• Center-cutting design allows direct plunge milling
• Extended reach with 0.625 inch reach length for deep-feature access
• Bright/uncoated finish suitable for a wide range of general milling applications

Compatibility

Designed for use in standard 1/8 inch collets and tool holders on CNC machining centers and manual milling machines requiring small-diameter solid carbide end mills.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully in the collet or tool holder and torque to the tool holder manufacturer specification. Verify runout with a dial indicator before beginning a cut, as runout on small-diameter carbide tools accelerates wear and increases breakage risk.
