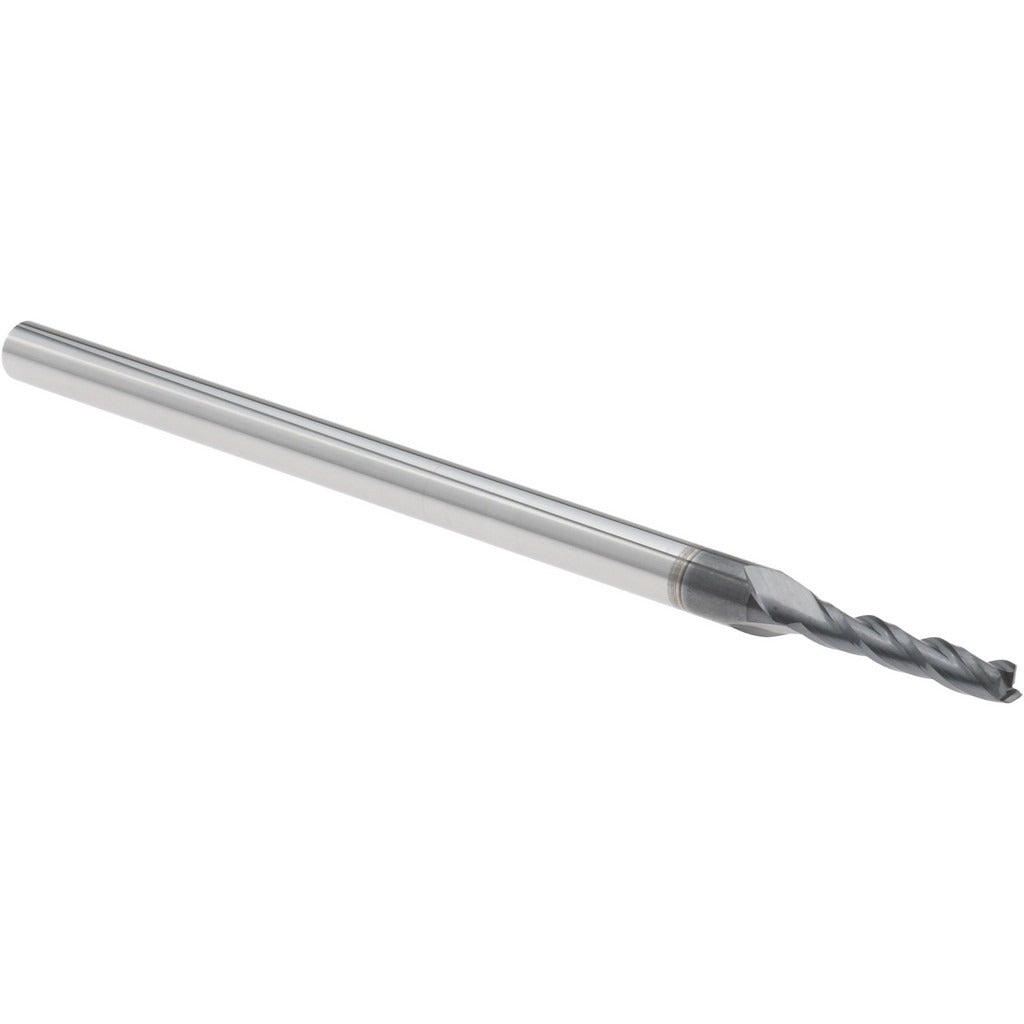

Accupro 14883444 Square End Mill 0.08in 3 Flute Altin Carbide

Product Description

The ACCUPRO 14883444 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. It features a 0.08-inch cutting diameter with a 13/32-inch (0.406-inch) length of cut, a 30-degree helix angle, and three right-hand spiral flutes. The tool is coated with AlTiN (aluminum titanium nitride), which improves heat resistance and extends tool life in high-speed and dry cutting conditions. Micrograin carbide construction provides rigidity and wear resistance in demanding cuts. This is a single-end, centercutting tool suitable for slotting, profiling, and plunging operations.

This end mill is intended for use by machinists and tool-and-die professionals working with ferrous metals, stainless steels, and other hard materials where AlTiN coating provides a thermal advantage. The 1/8-inch shank diameter makes it compatible with standard collet chuck toolholders used on CNC machining centers, manual mills, and high-speed spindle setups. With a 2.5-inch overall length and no extended reach, it is well suited for close-tolerance work in shallow-to-moderate pocket depths.

Key Features

• AlTiN coating for improved heat resistance and extended tool life in dry or high-speed cutting
• Micrograin solid carbide construction for rigidity and wear resistance
• 30-degree helix angle with right-hand flute direction for efficient chip evacuation
• Centercutting design allows direct plunge entry into workpiece material
• Three-flute geometry balances chip clearance with surface finish quality
• Series ASQSC3-AT-CC-30H with tight diameter tolerances: +0.0000 / -0.0010 inches on mill diameter

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for standard 1/8-inch collet or end mill toolholders on CNC and manual milling equipment.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the collet chuck. Use a torque wrench and the collet manufacturer's recommended procedure to secure the shank without over-tightening. Inspect the cutting edges for chips or wear before each use, as carbide tooling can fracture if run with pre-existing damage.
