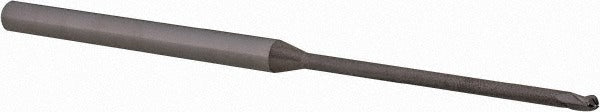

Accupro 14881936 Ball End Mill 1/16 in 3 Flute Carbide

Product Description

The ACCUPRO 14881936 is a miniature solid carbide ball end mill designed for precision milling operations requiring small-diameter tooling. Built from micrograin carbide stock, this single-end tool measures 0.0625 inches in cutting diameter with a 0.0930-inch length of cut and a 1/8-inch shank diameter. The 3-flute, right-hand spiral geometry with a 30-degree helix angle promotes efficient chip evacuation and smooth surface finishes in tight-tolerance work. The bright/uncoated finish makes it suitable for a range of workpiece materials where coating compatibility is a concern. Machinists and tool-and-die professionals working on CNC mills or manual machines use this tool for contour milling, slotting, and detail work in small cavities.

This miniature ball end mill is well-suited for precision machining applications in aerospace, mold-and-die, medical device, and prototype fabrication environments. Its extended-reach neck length of 1.5500 inches allows access to deeper features without sacrificing rigidity at the shank. The 3-inch overall length and 1/8-inch shank fit standard collet systems commonly found on CNC machining centers and high-speed spindle setups used in fine detail work.

Key Features

• 0.0625-inch ball cutting diameter with 0.0930-inch length of cut for precise small-feature milling
• 3-flute right-hand spiral design with 30-degree helix angle for efficient chip evacuation
• Micrograin solid carbide construction for hardness and wear resistance in demanding cuts
• Extended reach with 1.5500-inch neck length for deep-cavity access
• Bright/uncoated finish compatible with a broad range of workpiece materials
• Single-end geometry; 1/8-inch shank fits standard collet toolholders

Compatibility

Designed as an OEM-style miniature ball end mill for use in standard 1/8-inch collet toolholding systems on CNC machining centers and high-speed spindles requiring small-diameter carbide tooling.

Installation Notes

Installation should be performed by a qualified machinist following standard tool-change procedures. Power down and lock out the spindle before seating or removing the tool. Ensure the 1/8-inch shank is fully seated and properly torqued in the collet to manufacturer spec before operation. Inspect the cutting edge for chips or damage before each use, as micrograin carbide tools are sensitive to shock loading and improper runout.
