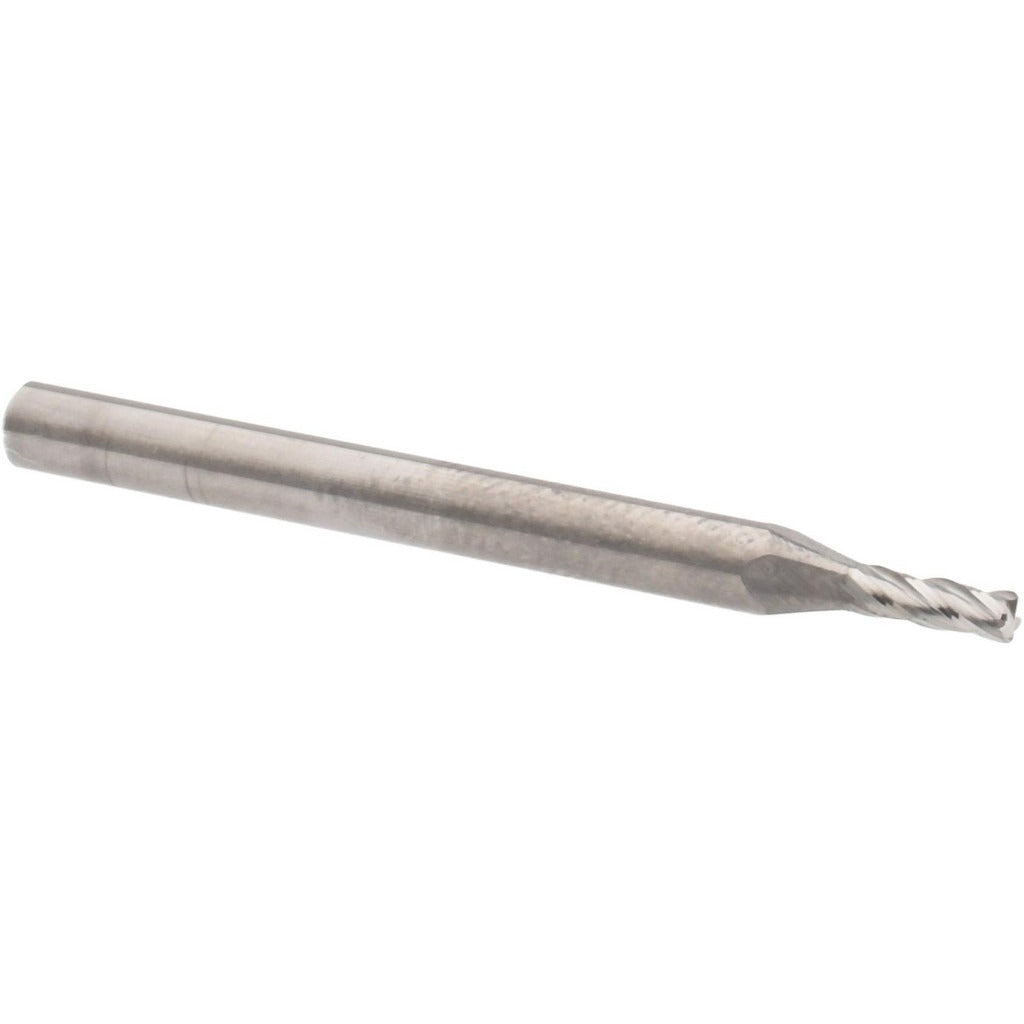

Accupro 14797558 Corner Radius End Mill 0.07in 4 Flute

Product Description

The ACCUPRO 14797558 is a solid carbide corner radius end mill designed for precision machining in miniature-scale cutting applications. It features a 0.07-inch mill diameter, a 0.01-inch corner radius, and four right-hand spiral flutes ground from micrograin carbide stock. The bright/uncoated finish suits a wide range of workpiece materials where coating interference or heat buildup is a concern. This tool is centercutting and configured as a single-end mill, making it suitable for plunge entry as well as peripheral and slot milling. Machinists and CNC tool-and-die specialists are the primary users of this class of tooling.

This end mill fits miniature machining applications where tight tolerances and small feature geometry are required. With a 0.21-inch length of cut, a 1.5-inch overall length, and a 0.125-inch shank diameter, it is well suited for light-duty milling on small machining centers, CNC mills, and precision manual machines. It is appropriate for use in tool rooms, mold shops, and production environments that require fine-detail work in metals and engineered materials.

Key Features

• 0.07-inch mill diameter with 0.01-inch corner radius for small-feature geometry
• Micrograin solid carbide construction for rigidity and edge retention
• 4 right-hand spiral flutes with right-hand cutting direction
• Centercutting design allows plunge milling entry
• Bright/uncoated finish compatible with a broad range of workpiece materials
• Single-end configuration in the Miniature series for compact machine setups

Compatibility

Designed as an OEM-style replacement or direct-application corner radius end mill for miniature-series toolholders accepting a 0.125-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is locked out before inserting or removing tooling. Confirm the collet or toolholder bore matches the 0.125-inch shank diameter and that runout is within tolerance before beginning a cut. Follow shop safety standards and machine manufacturer guidelines for tool projection and clamping torque ranges listed in the toolholder documentation.
