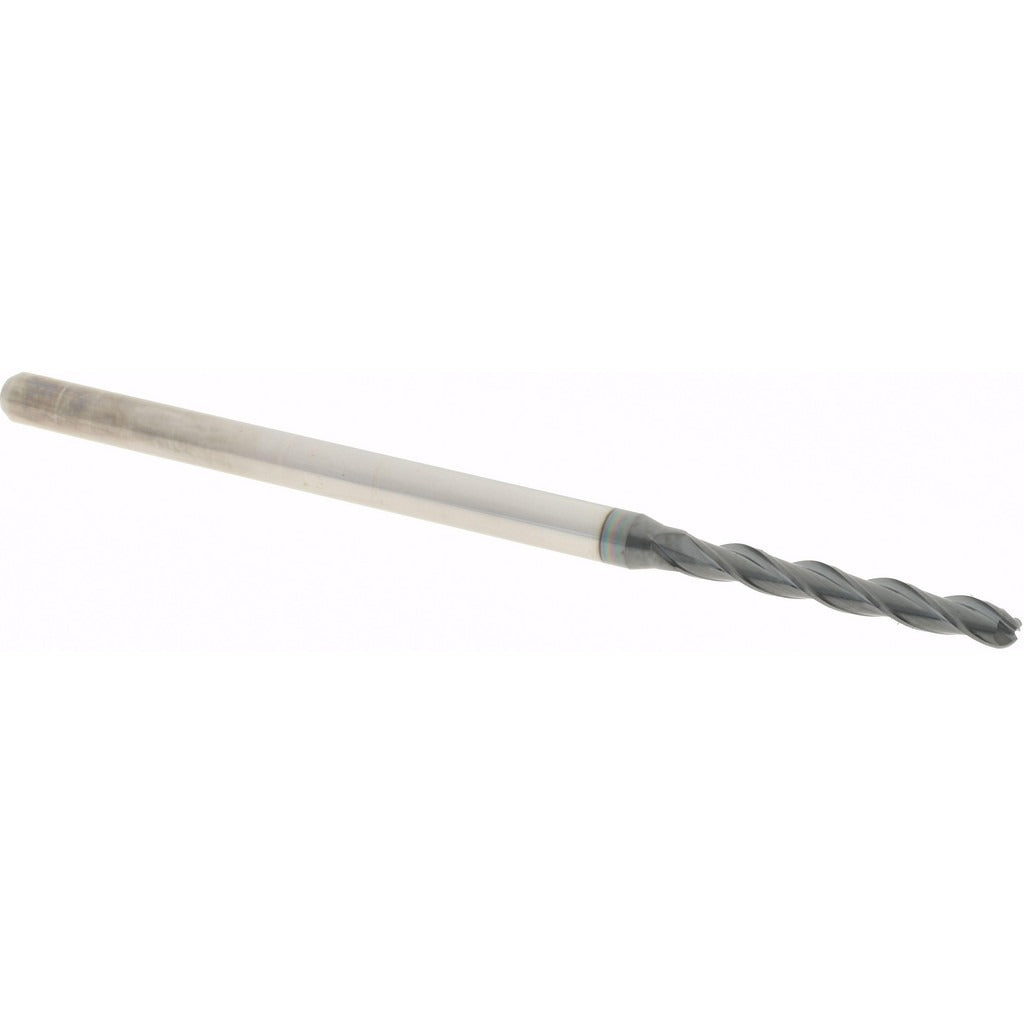

Accupro 14797488 Ball End Mill 0.095 in 3 Flute Carbide

Product Description

The ACCUPRO 14797488 is a solid carbide ball end mill designed for precision milling of tight-tolerance features, contoured surfaces, and small-radius pockets. At 0.095 inches in diameter with a 3-flute geometry and a 30-degree helix angle, this miniature end mill delivers smooth chip evacuation and clean finishes in demanding materials. The AlTiN coating provides heat resistance and extended tool life in hardened steels, stainless, and high-temp alloys. With a long-series overall length of 2.5 inches and a 0.75-inch length of cut, it suits applications requiring reach into deeper cavities while maintaining rigidity through its 0.125-inch shank.

This end mill is suited for CNC machining centers and high-speed milling operations involving die and mold work, medical components, aerospace parts, and precision instrument manufacturing. Its miniature series classification makes it appropriate for fine-detail work where standard tooling is too large. Single-end configuration supports direct replacement without the complexity of indexable tooling systems. Right-hand cutting and right-hand flute direction are standard for conventional CNC spindle operation.

Key Features

• 0.095-inch ball nose diameter for tight-radius contouring and fine-detail milling
• 3-flute spiral geometry with 30-degree helix angle for balanced chip load and smooth finish
• AlTiN coating for elevated heat resistance and extended tool life in hard and abrasive materials
• Micrograin solid carbide construction provides stiffness and wear resistance in demanding cuts
• Long-series OAL of 2.5 inches enables reach into deeper pockets and cavities
• Right-hand cut, single-end configuration compatible with standard CNC toolholders

Compatibility

Designed as an OEM-style miniature ball end mill for use in standard 1/8-inch ID collets and toolholders on CNC milling machines and machining centers running right-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool. Seat the 0.125-inch shank fully into a compatible collet or end mill holder and torque the retention nut per the toolholder manufacturer's specification. Inspect the cutting edge for chipping before each use, as miniature carbide end mills are brittle and sensitive to runout from improperly seated or worn toolholders.
