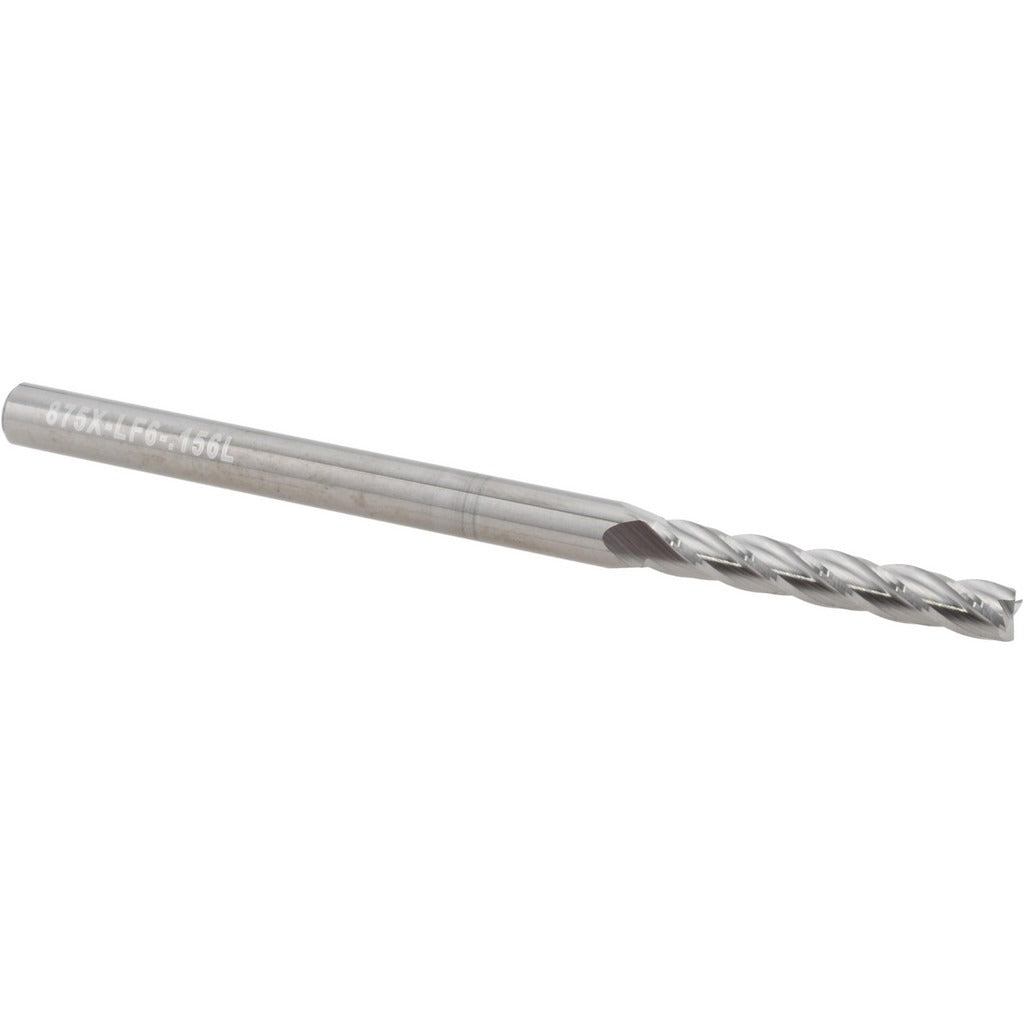

Accupro 14797356 Square End Mill 5/32 in 4 Flute Carbide

Product Description

The ACCUPRO 14797356 is a solid carbide square end mill designed for precision milling operations in metal, composite, and engineered material applications. It features a 5/32-inch (0.1562-inch) mill diameter, a 1-inch length of cut, and a 4-flute configuration that balances chip evacuation with surface finish quality. The 30-degree helix angle promotes smooth cutting action and reduces chatter. Built from micrograin solid carbide, this single-end tool delivers the rigidity and wear resistance required for demanding milling tasks. It is suited for machinists and tool-and-die professionals working on CNC mills and manual knee mills.

This end mill is well suited to slotting, profiling, and peripheral milling in both roughing and finishing passes where a small-diameter tool is required. The bright uncoated finish makes it a practical choice for non-ferrous metals such as aluminum and copper alloys, as well as plastics and other materials where coating adhesion or heat buildup is a concern. The right-hand cut and right-hand flute direction are standard for conventional CNC spindle setups.

Key Features

• Micrograin solid carbide construction for high rigidity and extended tool life
• 4-flute, right-hand spiral design with 30-degree helix angle for smooth chip flow
• Center-cutting capable — suitable for plunge entry as well as side milling
• Bright uncoated finish appropriate for non-ferrous metals, aluminum, and plastics
• 3/16-inch shank diameter with tight shank tolerance (-0.0001 / -0.0003 inches) for secure chuck or collet grip
• Single-end configuration with 3-inch overall length

Compatibility

Designed as an OEM-style replacement or direct application solid carbide square end mill for use in standard collet chucks and end mill holders accepting a 3/16-inch shank diameter. Part of the ACCUPRO ASQSC4-CC-30H series.

Installation Notes

Installation is performed by qualified machinists following standard toolholding procedures. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Use a calibrated torque wrench and the correct collet or end mill holder sized for the 3/16-inch shank to prevent runout. Verify tool projection and length of cut engagement before initiating a cut, and consult applicable feeds-and-speeds references for the workpiece material.
