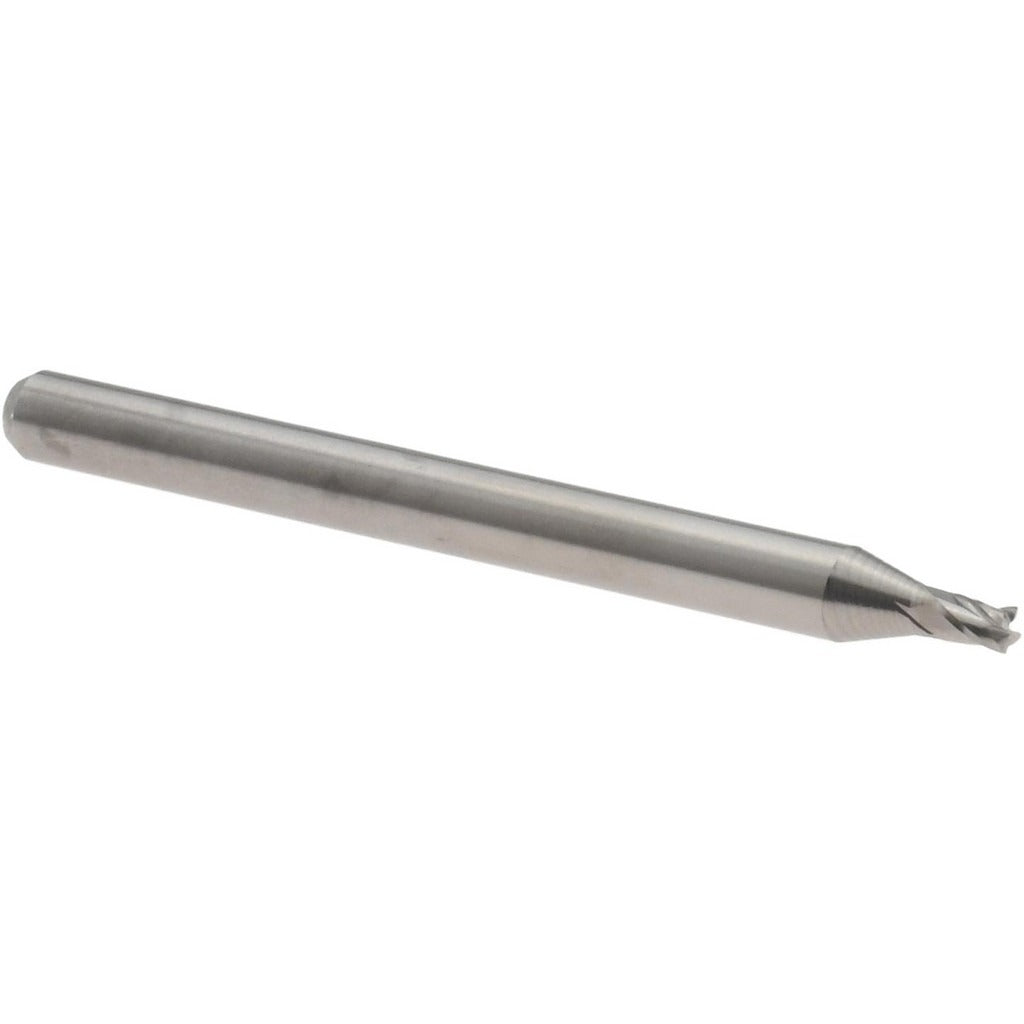

Accupro 14797350 Square End Mill 1/16 in 4 Flute Carbide

Product Description

The ACCUPRO 14797350 is a single-end square end mill designed for precision milling in metalworking and machining applications. Built from micrograin solid carbide, it delivers the rigidity and edge retention needed for tight-tolerance cuts in ferrous and non-ferrous materials. The tool measures 0.0625 inches (1/16 inch) in diameter with a 0.093-inch length of cut and a 1.5-inch overall length. The 30-degree helix angle and 4-flute spiral configuration promote efficient chip evacuation while maintaining surface finish quality. The bright/uncoated finish makes it suitable for applications where coating buildup or heat transfer to the workpiece is a concern. Licensed machinists and CNC operators are the primary users of this tool.

This end mill is suited for light-duty profiling, slotting, and contouring operations on small-scale features. The 1/16-inch diameter makes it a go-to choice for fine detail work in mold making, engraving setups, and micro-machining environments. The 1/8-inch shank diameter fits standard collets and tool holders commonly found on CNC machining centers and manual mills. Right-hand cut and right-hand flute direction are standard for conventional and climb milling operations on most setups.

Key Features

• Micrograin solid carbide construction for edge retention and rigidity in fine-diameter tooling
• 4-flute spiral design with 30-degree helix angle for efficient chip evacuation
• Centercutting capability allows plunge entry into the workpiece
• Bright/uncoated finish suitable for non-ferrous metals and general-purpose milling
• Right-hand cut and right-hand flute direction for standard milling operations
• Single-end design with 1/8-inch shank diameter for compatibility with standard collet systems

Compatibility

Designed as an OEM-style replacement or standard tooling option for CNC machining centers and manual milling machines equipped with 1/8-inch collets or tool holders. Part of the ACCUPRO ASQSC4-CC-30H series.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and machine power is off before changing tooling. Seat the shank fully into the collet and torque the collet nut according to the machine manufacturer specifications. At this diameter, runout control is critical — inspect the tool holder and collet for wear before use to avoid tool breakage.
