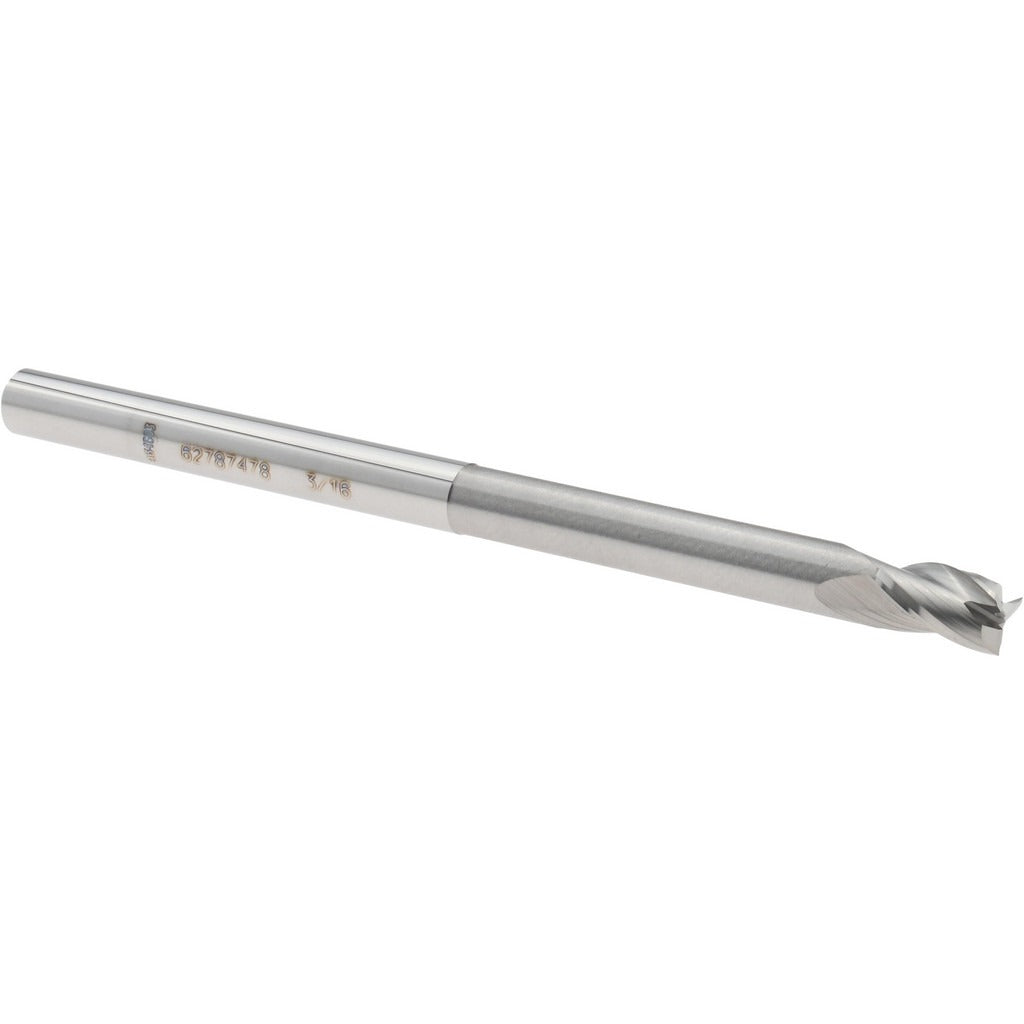

Accupro 14797320 Square End Mill 3/16 in 3 Flute Carbide

Product Description

The ACCUPRO 14797320 is a solid carbide square end mill designed for precision milling operations in metal and composite materials. Built from micrograin carbide, it delivers a 3/16 inch cutting diameter with a 9/32 inch length of cut and a 30-degree helix angle. The three-flute, right-hand spiral configuration promotes efficient chip evacuation and smooth surface finishes. The bright/uncoated finish suits a range of general-purpose cutting applications. This tool is used by machinists and CNC operators running production and job-shop work where tight tolerances and consistent tool geometry are required.

The 14797320 is suited for light-duty slotting, profiling, and side milling in ferrous and non-ferrous materials. Its extended reach design, with a 1.875 inch neck length and 1.5 inch reach length, allows access to deeper features and recessed pockets that standard-reach tools cannot reach. The single-end configuration makes it a direct consumable replacement. It fits 3/16 inch collets or tool holders on CNC machining centers and manual mills running fractional-inch tooling systems.

Key Features

• Micrograin solid carbide construction for wear resistance and dimensional stability
• 3-flute right-hand spiral geometry for efficient chip clearance
• 30-degree helix angle balances cutting force and finish quality
• Extended reach with 1.875 inch neck length and 1.5 inch reach length for deep-feature access
• Center-cutting design allows plunge entry
• Bright/uncoated finish compatible with a wide range of cutting fluids and dry cutting
• Mill diameter tolerance of +0.0000 / -0.0010 inch for consistent fit in standard collets

Compatibility

Designed as an OEM-style replacement or direct consumable for 3/16 inch fractional-inch tooling systems; part of the ACCUPRO ASQSC3-CCER series of solid carbide square end mills.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and locked out before changing tooling. Clean the collet bore and tool shank before seating to maintain runout tolerances. Verify tool projection and reach against the programmed toolpath before cutting to avoid interference with workpiece features.
