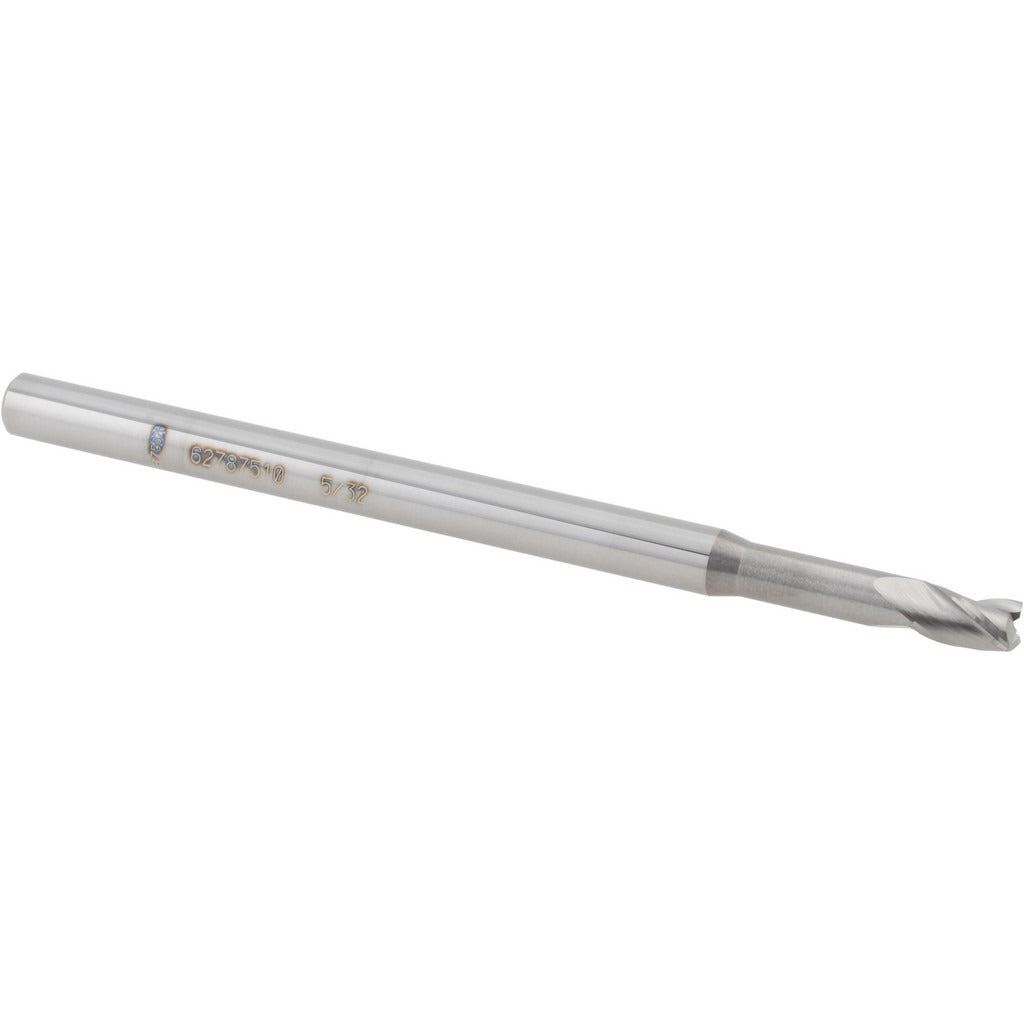

Accupro 14797315 Square End Mill 5/32 in 3 Flute Carbide

Product Description

The ACCUPRO 14797315 is a solid carbide square end mill designed for precision milling operations in metal, composite, and engineered material applications. With a 5/32 inch (0.1562 inch) mill diameter and a 15/64 inch (0.2340 inch) length of cut, this single-end tool delivers accurate material removal in tight-tolerance work. The micrograin carbide construction provides the hardness and edge retention needed for demanding cuts. A 30-degree helix angle supports efficient chip evacuation and reduces cutting forces. This tool is installed and used by machinists and CNC operators working on manual mills, machining centers, and multi-axis equipment.

This end mill is suited for slotting, profiling, and peripheral milling in both conventional and CNC setups. The extended reach design, with a 0.75 inch reach length and a 3.0 inch overall length, allows access to deeper features or stepped cavities without requiring a longer reach holder. The bright/uncoated finish makes it a straightforward choice for applications where coating compatibility or regrinding is a consideration. Right-hand cut and right-hand flute direction are standard for most vertical and horizontal milling setups.

Key Features

• Micrograin solid carbide construction for hardness and edge longevity
• 3-flute geometry balances chip clearance and cutting surface contact
• 30-degree helix angle promotes smooth chip flow and reduced heat buildup
• Center-cutting capable, allowing direct plunge entry into workpiece
• Extended reach design with 0.75 inch reach length for deeper feature access
• Bright/uncoated finish, compatible with regrinding services

Compatibility

Designed as a standard fractional-inch shank end mill for use in collet chucks, end mill holders, and shrink-fit tooling accepting a 3/16 inch shank diameter. Part of the ACCUPRO ASQSC3-CCER series.

Installation Notes

Installation is performed by qualified machinists following shop setup procedures. Ensure the spindle is fully stopped and locked out before changing tooling. Seat the 3/16 inch shank fully into the collet or holder to the recommended engagement depth before tightening. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and depth of cut.
