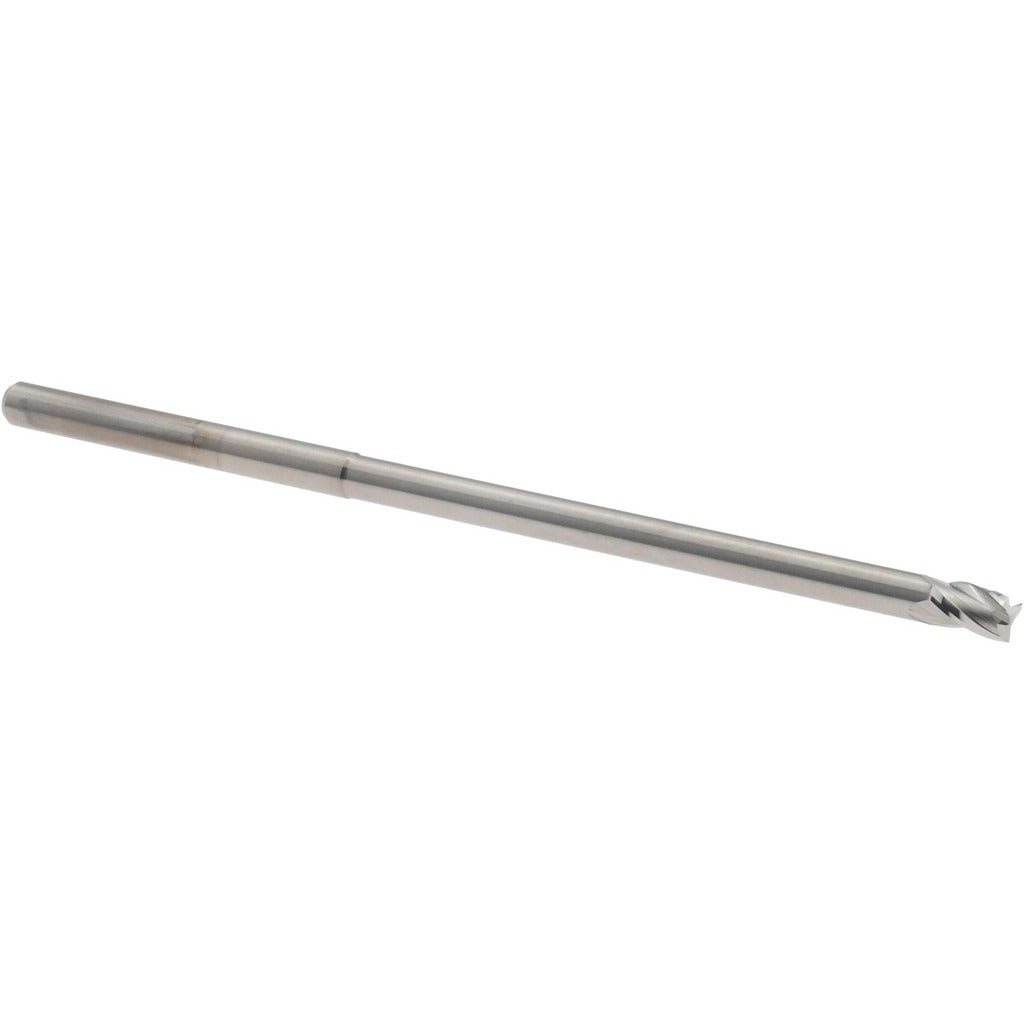

Accupro 14797305 Square End Mill 1/8 in 3 Flute Carbide

Product Description

The ACCUPRO 14797305 is a solid carbide square end mill designed for precision milling operations in metal, composite, and engineering-grade plastic materials. With a 1/8 inch (0.1250 inch) mill diameter, 3-flute configuration, and a 30-degree helix angle, this tool delivers efficient chip evacuation and smooth cutting action. The bright/uncoated finish suits a range of general-purpose applications where coating is not required. Built from micrograin solid carbide, the 14797305 offers the rigidity and wear resistance that machinists and tooling professionals expect from a high-quality end mill. It is a single-end, centercutting tool with right-hand cutting and right-hand flute direction.

This end mill is suited for light-to-medium milling passes in CNC machining centers and manual mills. The extended reach design, with a neck length of 2.25 inches and a reach length of 1.875 inches, allows access to features in deeper pockets or stepped workpieces. The 0.187 inch length of cut accommodates applications within the 0.100 to 0.200 inch length-of-cut range. Machinists working in job shops, tool rooms, and production environments will find this tool appropriate for contouring, slotting, and profiling operations at small diameters.

Key Features

• Micrograin solid carbide construction for high rigidity and extended tool life
• 3-flute geometry with 30-degree helix angle for efficient chip removal
• Centercutting capability allows plunge entry into workpiece material
• Extended reach with 2.25 inch neck length for deep-feature access
• Bright/uncoated finish suitable for general-purpose milling without coating constraints
• Right-hand cutting and flute direction; single-end configuration

Compatibility

Designed as a general-purpose solid carbide square end mill in the ACCUPRO ASQSC3-CCER series, compatible with standard 1/8 inch collets and tool holders used in CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the end mill. Verify collet size matches the 1/8 inch shank diameter within the specified shank tolerance of -0.0001 to -0.0003 inches. Coolant-through is not supported on this tool; use external coolant or air blast as appropriate for the material being cut.
