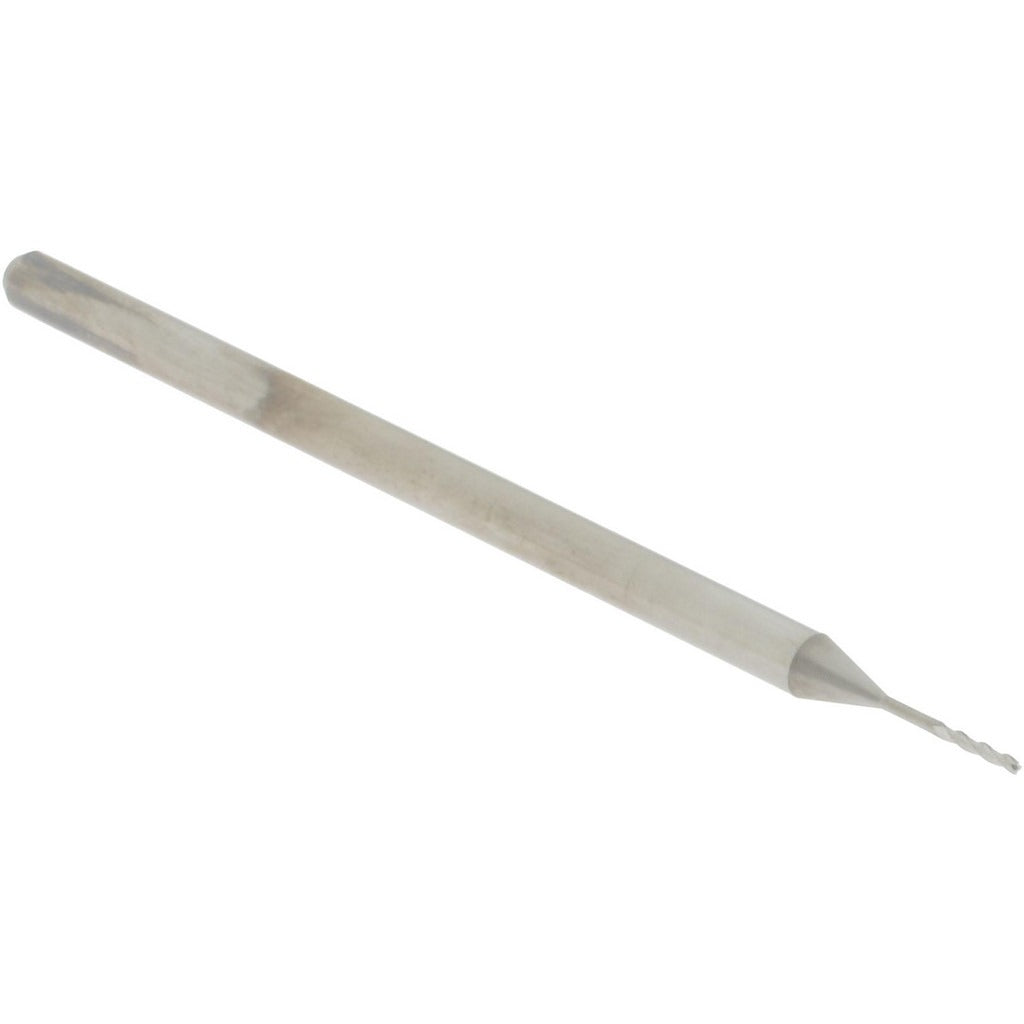

Accupro 14797160 Square End Mill 1/32 in 3 Flute Carbide

Product Description

The ACCUPRO 14797160 is a solid carbide square end mill designed for precision milling in ferrous and non-ferrous materials. With a 1/32-inch (0.0300-inch) cutting diameter and a 3-flute, right-hand spiral flute geometry at a 30-degree helix angle, this end mill delivers clean, accurate cuts in tight spaces. The micrograin carbide substrate provides wear resistance and edge integrity at high feed rates. The centercutting design allows plunge entry directly into the workpiece. Extended reach geometry and a 1/8-inch shank make it suitable for applications requiring access to deep or confined features without sacrificing rigidity.

This end mill is suited for CNC milling operations in tool and die, mold making, aerospace component work, and precision machining of small features. Its 0.15-inch length of cut and 0.300-inch reach length make it a practical choice for slotting, profiling, and pocket milling in materials where a fine cutting diameter is required. It ships as a single unit and is intended for use by machinists and CNC operators working with precision milling machines and machining centers.

Key Features

• Solid micrograin carbide construction for superior hardness and edge retention
• 3-flute, right-hand spiral flute design with 30-degree helix angle for efficient chip evacuation
• Centercutting capability allows direct plunge milling
• Extended reach geometry supports access to deep or confined workpiece features
• Uncoated finish suitable for a wide range of milling applications
• Tight diameter tolerance of +0.0000 / -0.0010 inches ensures dimensional accuracy

Compatibility

Designed as a standard shank end mill compatible with CNC machining centers and manual milling machines accepting a 1/8-inch collet or end mill holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully powered down and the machine is in a safe state before changing tooling. Secure the 1/8-inch shank in a properly sized collet or end mill holder, tightening to the tool holder specification. Verify runout with a dial indicator before beginning a cut to protect edge integrity on this fine-diameter tool.
