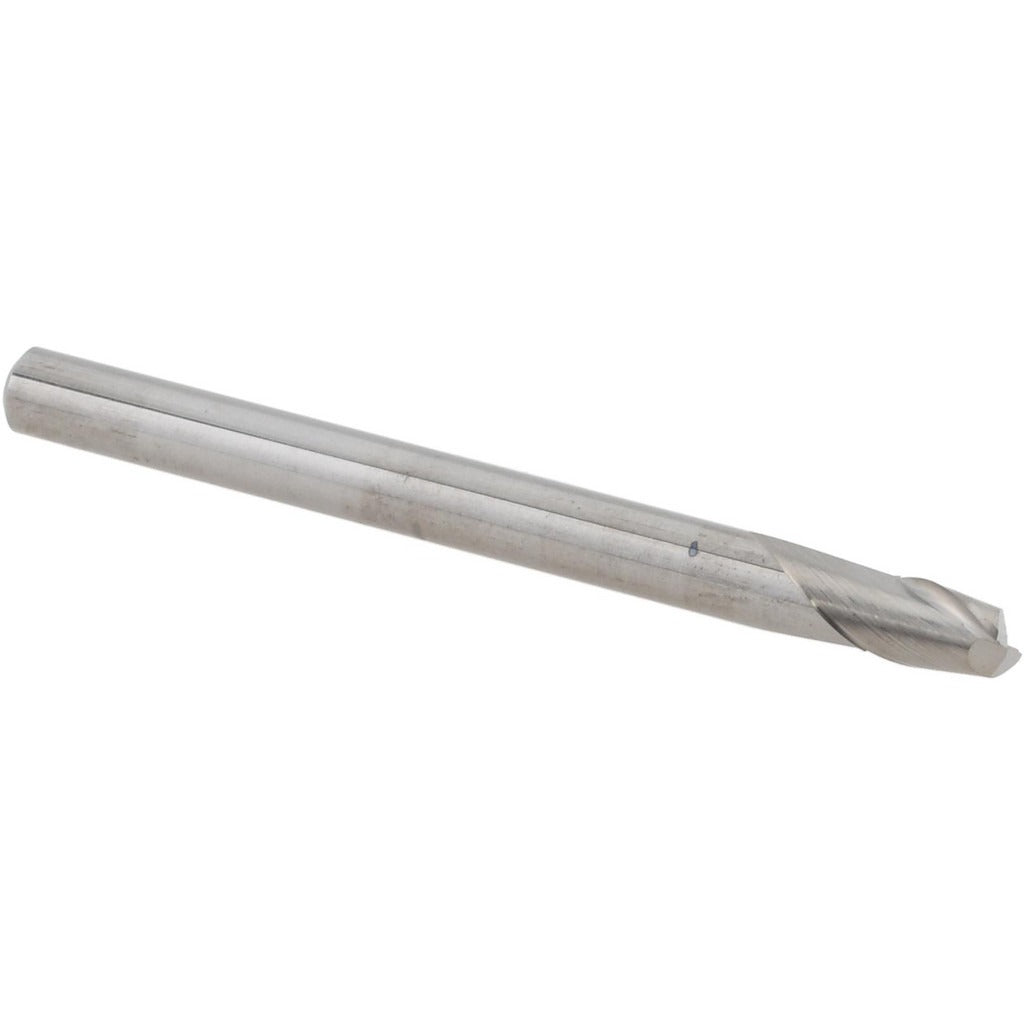

Accupro 14797127 Square End Mill 3mm 2 Flute Carbide

Product Description

The ACCUPRO 14797127 is a solid carbide square end mill designed for precision material removal in milling operations. Built from micrograin carbide with a bright, uncoated finish, this single-end tool cuts with a 2-flute, right-hand spiral configuration at a 30-degree helix angle. The 3 mm (0.1181 inches) mill diameter and 0.177-inch length of cut make it well-suited for light profiling, slotting, and finishing passes in small-feature applications. Machinists and tool-and-die professionals select this geometry when working in confined pockets where tool diameter and LOC must stay within tight tolerances.

This end mill is intended for use in CNC machining centers, manual knee mills, and precision toolroom equipment. The 1/8-inch shank diameter fits standard collets and end-mill holders commonly found in light-duty and high-speed spindle setups. The centercutting design allows plunge entry, adding versatility for slotting and pocket-milling operations. It is appropriate for use in ferrous and non-ferrous materials where a small-diameter, uncoated carbide tool is specified.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance in small-diameter tooling
• 2-flute, right-hand spiral design provides efficient chip evacuation in narrow cuts
• 30-degree helix angle balances cutting efficiency with surface finish quality
• Centercutting geometry allows direct plunge entry into workpiece material
• Bright, uncoated finish suitable for general-purpose machining without coating-induced dimensional offset
• Single-end configuration with 1.5-inch overall length for use in standard short-reach setups

Compatibility

Designed as an OEM-style replacement or standard toolroom end mill compatible with 1/8-inch collets and end-mill holders on CNC and manual milling equipment. Part of the ASQSC2-CC-30H series.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholding specifications. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the collet or holder and torque the retention hardware per the toolholder manufacturer's recommendation. Verify runout with a dial indicator before initiating a cut, as small-diameter carbide end mills are sensitive to spindle and holder concentricity.
