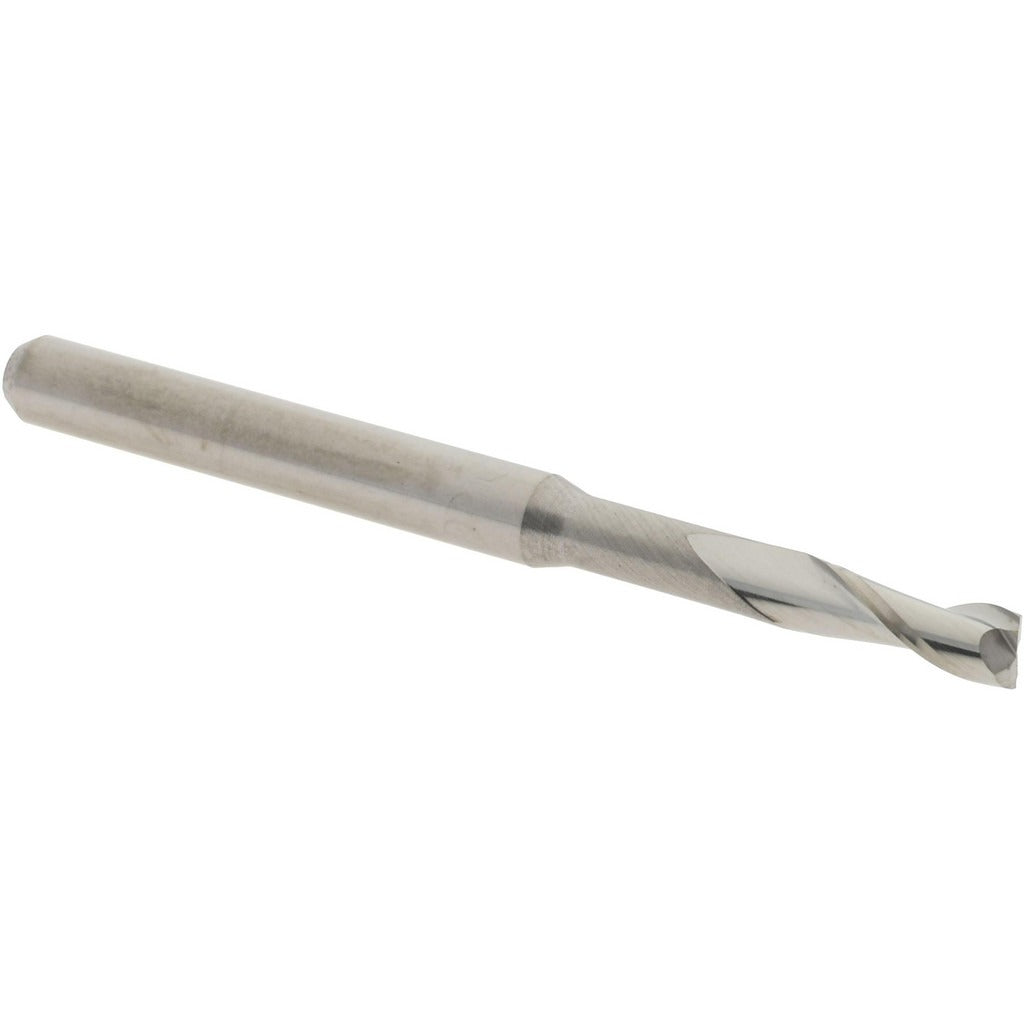

Accupro 14797126 Square End Mill 0.1 in 2 Flute Carbide

Product Description

The ACCUPRO 14797126 is a solid carbide square end mill designed for precision milling operations in metal fabrication, toolroom work, and production machining. The 0.1-inch cutting diameter and 2-flute geometry make it well-suited for small-feature milling, slotting, and profiling where tight tolerances are required. Constructed from micrograin solid carbide with a bright/uncoated finish, this tool delivers consistent performance in applications where coating adhesion or heat buildup are not primary concerns. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces during engagement. Licensed machinists and CNC operators are the typical end users.

This end mill is built for use in CNC machining centers, knee mills, and manual mills requiring small-diameter tooling. The extended reach design with a 0.625-inch reach length allows access to recessed features without requiring specialty tooling. It is commonly applied in mold-making, aerospace component work, and precision part manufacturing where a 0.1-inch diameter tool path is called for. The single-end configuration means the tool is replaced rather than flipped when worn. Right-hand cutting and right-hand flute direction match standard spindle rotation on conventional machining equipment.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance in small-diameter tooling
• 2-flute, right-hand spiral geometry suitable for slotting and peripheral milling in small features
• 30-degree helix angle supports efficient chip evacuation during cutting passes
• Extended reach design with 0.625-inch reach length for accessing recessed or deep pockets
• Centercutting capability allows plunge entry directly into workpiece material
• Bright/uncoated finish maintains sharp edge geometry without coating layer interference on fine cuts

Compatibility

Designed as an OEM-style solid carbide square end mill for use in standard 1/8-inch collet or end mill holder setups on CNC machining centers and manual mills requiring small-diameter tooling.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. The tool must be seated fully and securely in a compatible 1/8-inch collet or end mill holder before spindle engagement. Verify runout with an indicator before beginning a production run, as small-diameter carbide tools are sensitive to even minor misalignment. Do not exceed manufacturer-recommended feed and speed parameters, as micrograin carbide is rigid but brittle under excessive lateral load or interrupted cuts without proper setup.
