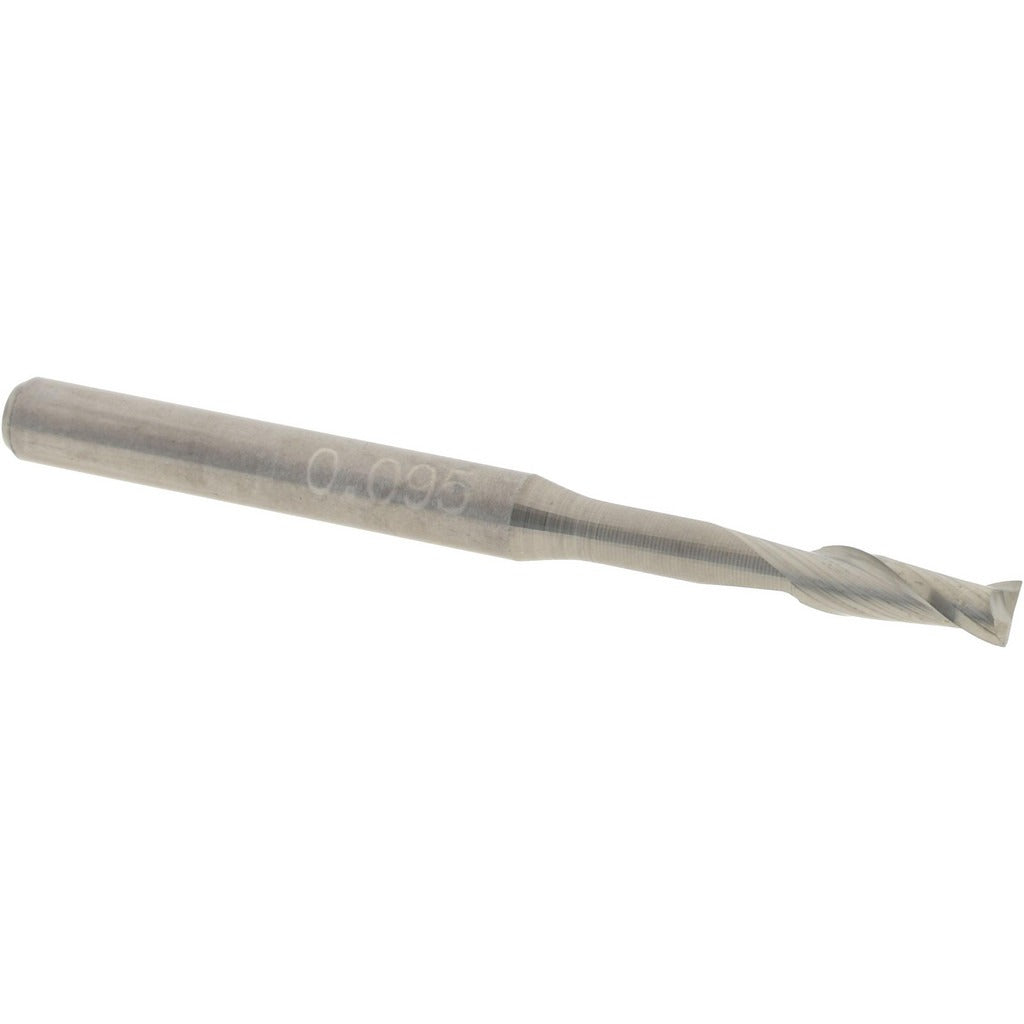

Accupro 14797124 Square End Mill 0.095in 2 Flute Carbide

Product Description

The ACCUPRO 14797124 is a solid carbide square end mill designed for precision milling operations in metalworking and machining environments. It features a 0.095-inch cutting diameter and a 0.285-inch length of cut, making it well suited for slot milling, profile milling, and detail work in tight geometries. The 30-degree right-hand spiral flute design promotes efficient chip evacuation and smooth cutting action. With a micrograin carbide construction and bright uncoated finish, this tool delivers consistent performance in a variety of workpiece materials. Installation and use are performed by machinists and CNC operators in job shop and production environments.

This end mill is intended for use in CNC machining centers, manual mills, and high-speed machining applications where small-diameter tooling is required. The 0.125-inch shank diameter fits standard collets and tool holders in that size range. The extended reach design, with a 0.625-inch reach length, allows access to recessed features without interference. It is a single-end, center-cutting tool capable of plunge entry, making it versatile for both roughing and finishing passes in small-scale or intricate workpiece features.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance in demanding cutting conditions
• 0.095-inch cutting diameter with a mill diameter tolerance of +0.0000 / -0.0010 inches for dimensional accuracy
• 30-degree right-hand helix with right-hand cutting direction for efficient chip flow
• Center-cutting capable — supports direct plunge entry into workpiece material
• Extended reach at 0.625 inches for access to deep or recessed features
• Bright uncoated finish suitable for use across a broad range of materials without coating compatibility concerns

Compatibility

Designed as a replacement-style solid carbide square end mill compatible with standard 1/8-inch collets and tool holders used in CNC machining centers and manual milling machines requiring small-diameter tooling.

Installation Notes

This tool is installed and operated by qualified machinists or CNC programmers. Before changing tooling, ensure the spindle is fully stopped and the machine is in a safe state per shop safety protocols. Verify that the collet or tool holder is clean, undamaged, and rated for the 0.125-inch shank diameter before securing the tool. Do not exceed the tool manufacturer's recommended cutting parameters for feed rate, depth of cut, or spindle speed for this diameter and material combination.
