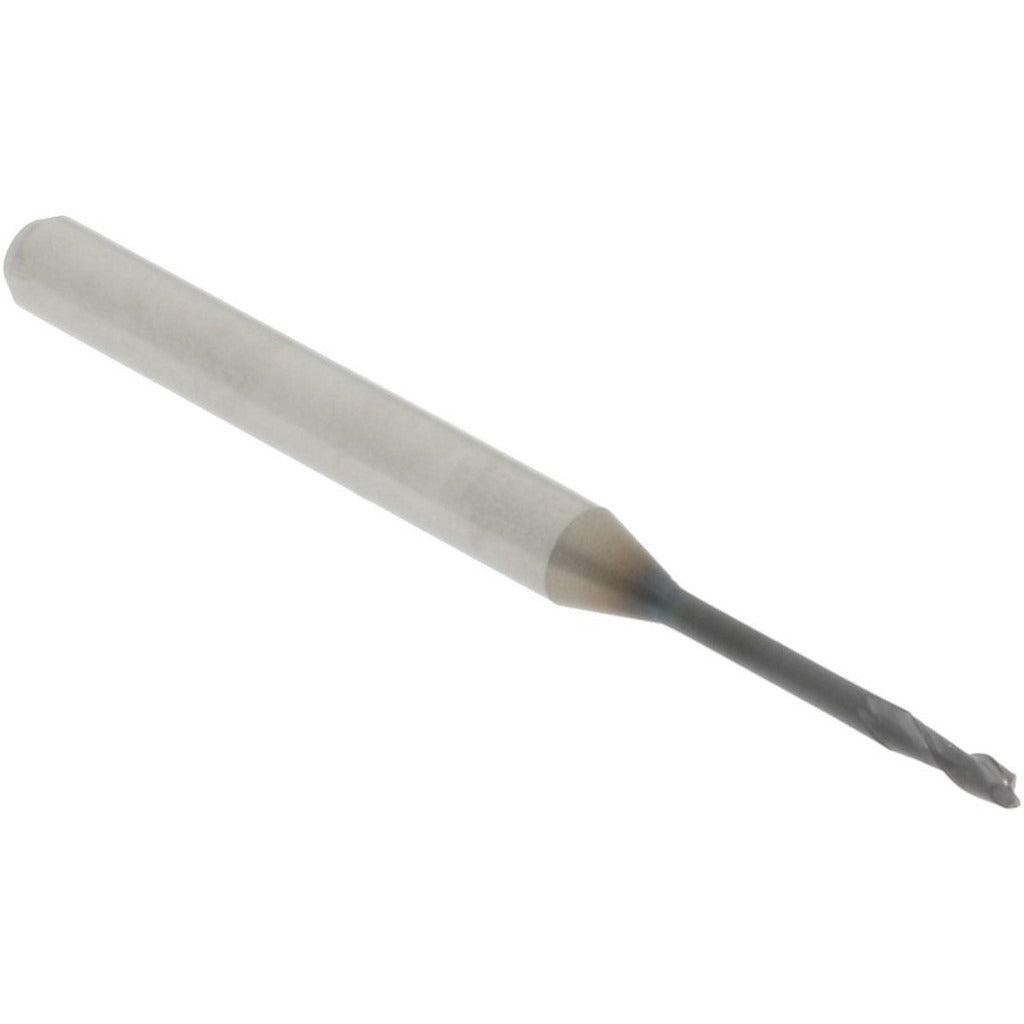

Accupro 14797113 Square End Mill 0.05in 2 Flute Altin Carbide

Product Description

The ACCUPRO 14797113 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 0.05 inch cutting diameter and a 0.15 inch length of cut, this tool is built for fine detail work and tight-tolerance operations. The micrograin carbide construction paired with an AlTiN coating provides heat resistance and edge retention at elevated cutting speeds. A 30-degree helix angle promotes smooth chip evacuation, and the centercutting geometry allows for plunge entry. This end mill is installed and operated by machinists and CNC programmers in job shop and production environments.

This end mill suits applications requiring small-diameter, high-precision cutting in ferrous and non-ferrous metals, hardened steels, and exotic alloys. The AlTiN coating makes it well suited for dry or near-dry machining where heat generation is a concern. The 0.125 inch shank diameter fits standard collets and tool holders used in CNC machining centers and manual mills. The 1.5 inch overall length and 0.5 inch reach length allow access to features where clearance is limited.

Key Features

• Solid micrograin carbide construction for rigidity and wear resistance in demanding cuts
• AlTiN coating increases surface hardness and thermal resistance for extended tool life
• 30-degree right-hand helix with spiral flutes promotes efficient chip evacuation
• Centercutting design allows direct plunge milling without a pre-drilled entry point
• Extended reach geometry with 0.5 inch reach length for access to confined features
• Right-hand cutting direction compatible with standard CNC spindle rotation

Compatibility

Designed as an OEM-style replacement and standard-fitment end mill for use in CNC machining centers and manual mills accepting a 0.125 inch shank diameter collet or tool holder.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Seat the shank fully in the collet or tool holder and torque the retention mechanism to the machine manufacturer's specification. Verify runout with a dial indicator before initiating a cut, and confirm feeds, speeds, and depth of cut are appropriate for the workpiece material and machine rigidity.
