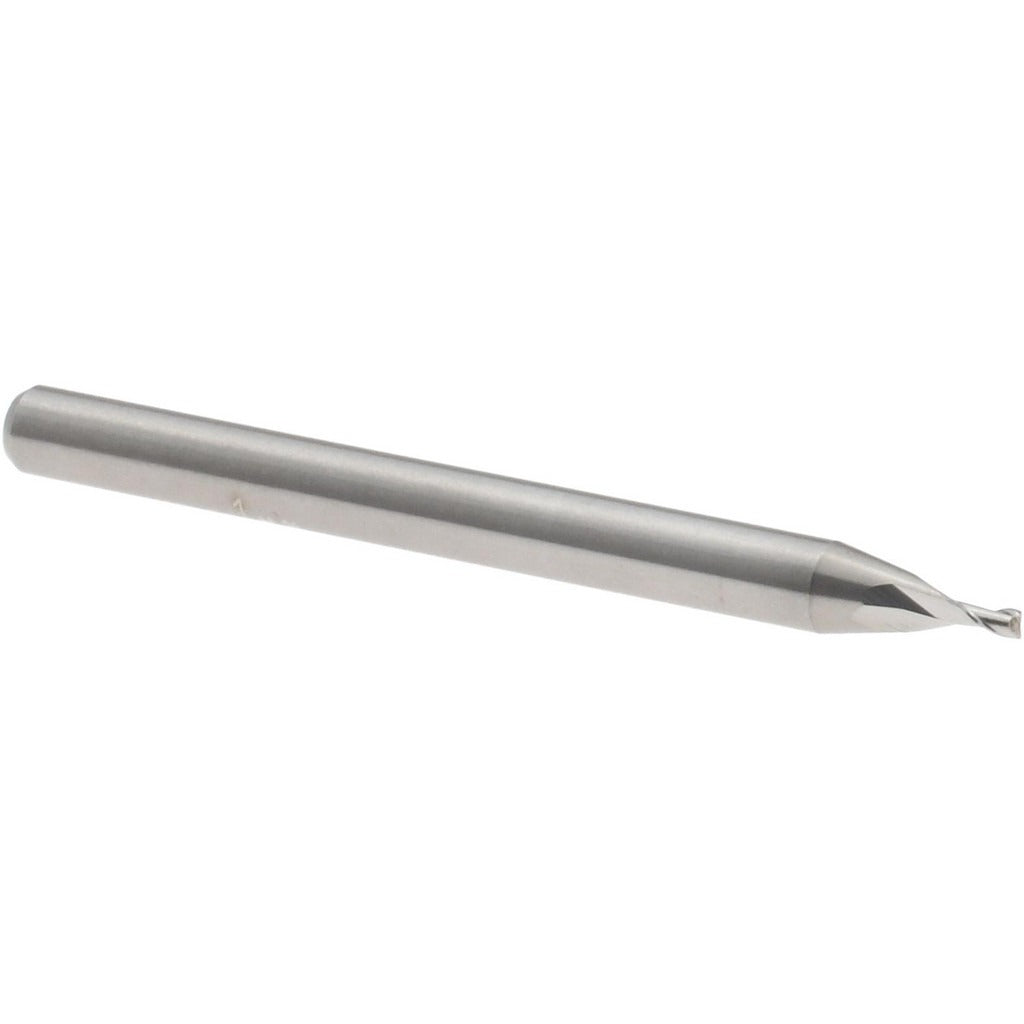

Accupro 14797105 Square End Mill 1mm 2 Flute Carbide

Product Description

The ACCUPRO 14797105 is a solid carbide square end mill designed for precise milling of ferrous and non-ferrous materials in CNC machining and manual milling applications. With a 1 mm (0.0390 inch) cutting diameter and a 0.0585-inch length of cut, this tool is built for small-feature detail work, slotting, and profiling where tight tolerances are required. The micrograin carbide substrate provides the hardness and edge retention needed for high-speed cutting at small diameters. It ships individually and is intended for use by machinists and tool-and-die professionals.

This end mill is suited for light milling operations in precision machining environments, including mold and die work, prototype fabrication, and small-part production. The 30-degree helix angle promotes efficient chip evacuation in short-depth cuts. The bright uncoated finish makes it a straightforward choice for general-purpose applications where a specialized coating is not required. The 1/8-inch straight shank fits standard collet chucks and tool holders commonly found in benchtop and production CNC mills.

Key Features

• 1 mm (0.0390 inch) cutting diameter for fine detail and small-feature milling
• Solid micrograin carbide construction for edge retention and rigidity at small diameter
• 2-flute geometry supports chip clearance in slotting and profiling cuts
• 30-degree right-hand spiral helix for controlled chip evacuation
• Centercutting design allows plunge entry into workpiece material
• Bright uncoated finish suitable for general-purpose milling without coating-specific requirements

Compatibility

Designed for use in standard 1/8-inch collet chucks and compatible tool holders on CNC machining centers and manual mills. Part of the ACCUPRO ASQSC2-CC-30H series of square end mills.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Secure the shank fully within the collet to the recommended engagement depth before tightening. Ensure the spindle is fully stopped and machine power is off before changing tooling. Verify runout with a dial indicator after installation, as small-diameter carbide tools are sensitive to collet concentricity and clamping force.
