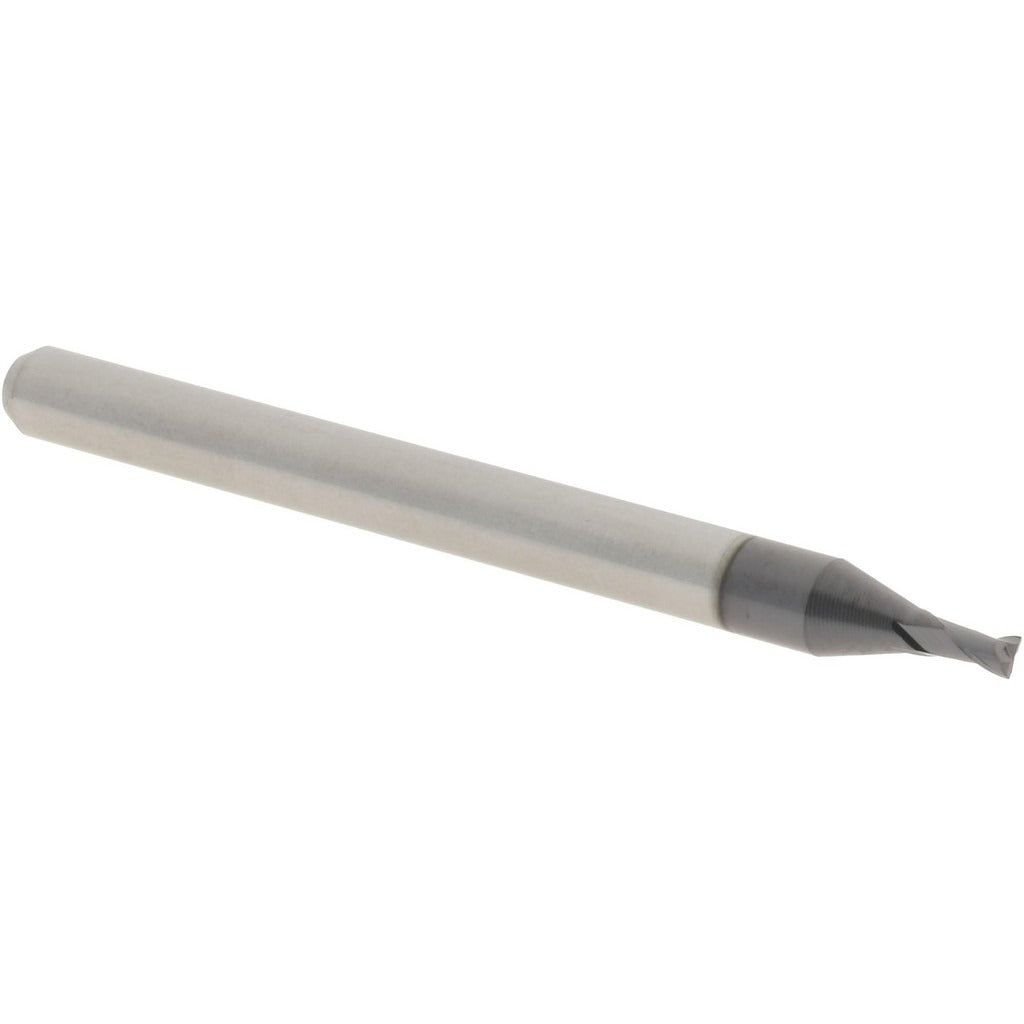

Accupro 14797012 Square End Mill 0.055 in 2 Flute Carbide

Product Description

The ACCUPRO 14797012 is a solid carbide square end mill designed for precision milling in tight-tolerance applications. With a 0.055-inch cutting diameter and a 0.083-inch length of cut, this tool is built for fine detail work in slots, pockets, and profiling passes. The micrograin carbide construction provides rigidity and edge retention in demanding cutting conditions. An AlTiN coating adds heat and wear resistance, making the tool suitable for harder workpiece materials at elevated cutting speeds. The 30-degree helix spiral flute geometry promotes efficient chip evacuation. This is a centercutting, right-hand cut, right-hand flute end mill intended for use by machinists and tooling professionals.

This end mill is well suited for mold and die work, precision part machining, and any application requiring fine-diameter milling in metals or hard materials. The 1/8-inch shank diameter fits standard collets and tool holders used on CNC machining centers and manual mills. The 1.5-inch overall length keeps the tool compact and reduces deflection during high-precision passes. It is a single-end, regular-length tool with no extended reach, making it appropriate for shallow-to-moderate depth applications within its 0.083-inch length of cut.

Key Features

• 0.055-inch cutting diameter for fine detail and small-feature milling
• Solid micrograin carbide construction for rigidity and edge retention
• AlTiN coating for improved heat and wear resistance
• 30-degree helix spiral flute promotes efficient chip evacuation
• Centercutting design allows direct plunge entry into workpiece
• Right-hand cut and right-hand flute with 2-flute geometry

Compatibility

Designed as an OEM-style replacement or direct-use tooling solution for standard 1/8-inch collet tool holders on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling professional. Ensure the machine spindle is fully stopped and locked out before loading or removing the end mill. Seat the shank fully and evenly in the collet to the recommended gauge line and torque the collet nut according to the tool holder manufacturer specifications. Verify runout with a dial indicator before beginning any precision cut.
