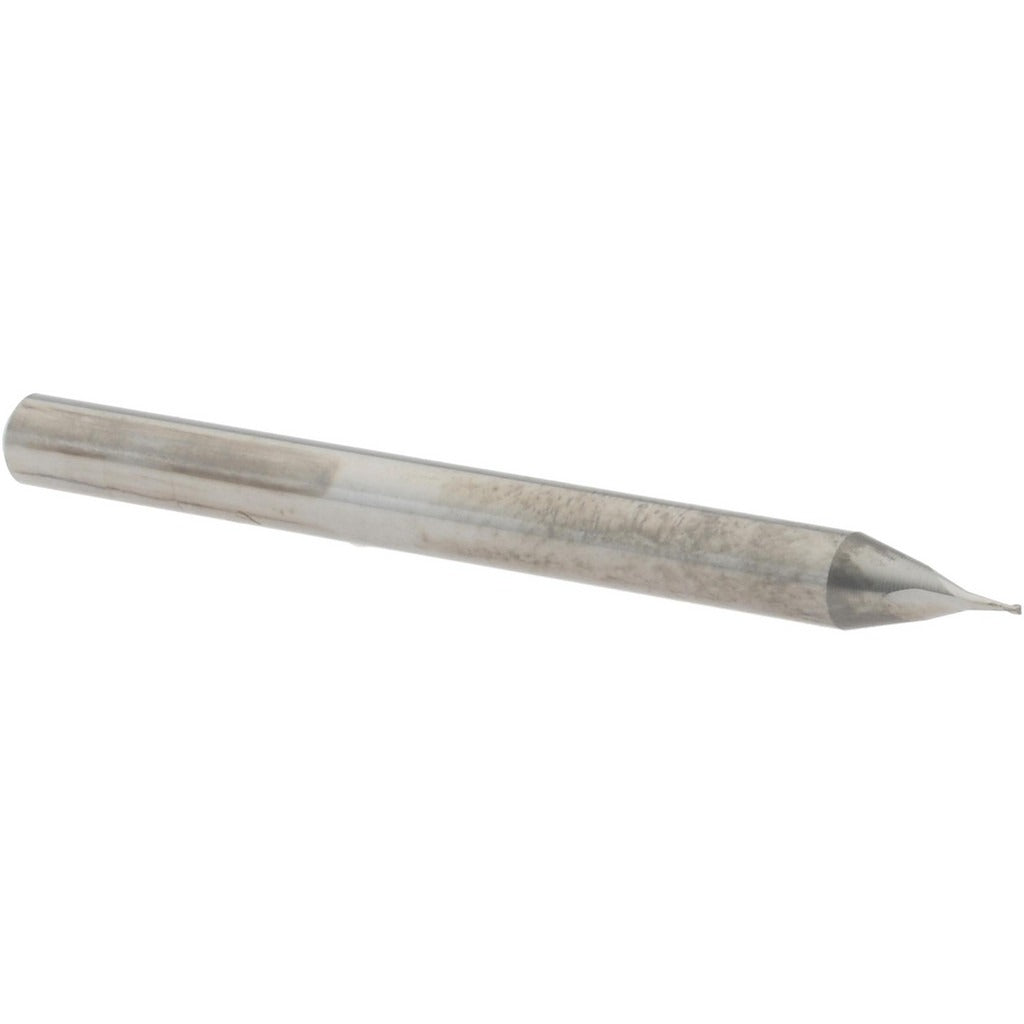

Accupro 14796993 Square End Mill 0.014 in 2 Flutes Carbide

Product Description

The ACCUPRO 14796993 is a square end mill designed for precision milling in tight-tolerance applications. Ground from micrograin solid carbide, this stub-length tool features a 0.014-inch cutting diameter and a 0.021-inch length of cut, making it well suited for micro-machining operations where rigidity and dimensional accuracy are critical. The 30-degree right-hand spiral flute geometry promotes efficient chip evacuation while maintaining cutting stability in small-feature work. With a bright, uncoated finish, this end mill is compatible with a wide range of ferrous and non-ferrous materials. It is single-end and centercutting, supporting both plunge and peripheral milling operations.

This end mill is intended for use in CNC machining centers, vertical mills, and high-speed spindle applications requiring fine-detail work. Its stub-length configuration reduces deflection during cuts, making it appropriate for mold work, electronics component machining, medical device fabrication, and other applications demanding tight dimensional control. The 1/8-inch shank diameter fits standard collets and tool holders common in small-diameter tooling setups. Machinists and toolroom professionals working with small-scale features will find this geometry suitable for slotting, profiling, and pocketing at micro scales.

Key Features

• Micrograin solid carbide construction for high wear resistance and edge retention
• 0.014-inch cutting diameter with mill diameter tolerance of +0.0000 / -0.0010 inches
• 30-degree right-hand helix for efficient chip evacuation in small-feature cuts
• Stub-length design minimizes deflection and improves rigidity in micro-milling
• Centercutting geometry supports direct plunge entry into workpieces
• Bright, uncoated finish suitable for a broad range of work materials

Compatibility

Designed as a standard stub-length square end mill with a 1/8-inch shank, compatible with collet chucks and tool holders accepting 0.125-inch shank diameters in CNC machining centers and manual vertical mills.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine in a safe, locked-out state. Ensure the collet or tool holder is clean and free of debris before seating the shank to maintain runout tolerances. At this diameter, even minor runout or improper seating can result in tool breakage or out-of-tolerance features. Verify spindle speed and feed rate recommendations for the specific work material before engaging the cut.
